Elsa 13-Space Bike Rack
Product code: UF-MAST143
The Elsa 13-Space Bike Rack is a steel rack with 13 single-sided parking spaces. It is 516 cm wide, and the spaces can be set perpendicular or at an angle. It is bolted to the ground at public buildings, housing estates or offices.
Product description
- 13 stands over a length of 516 cm

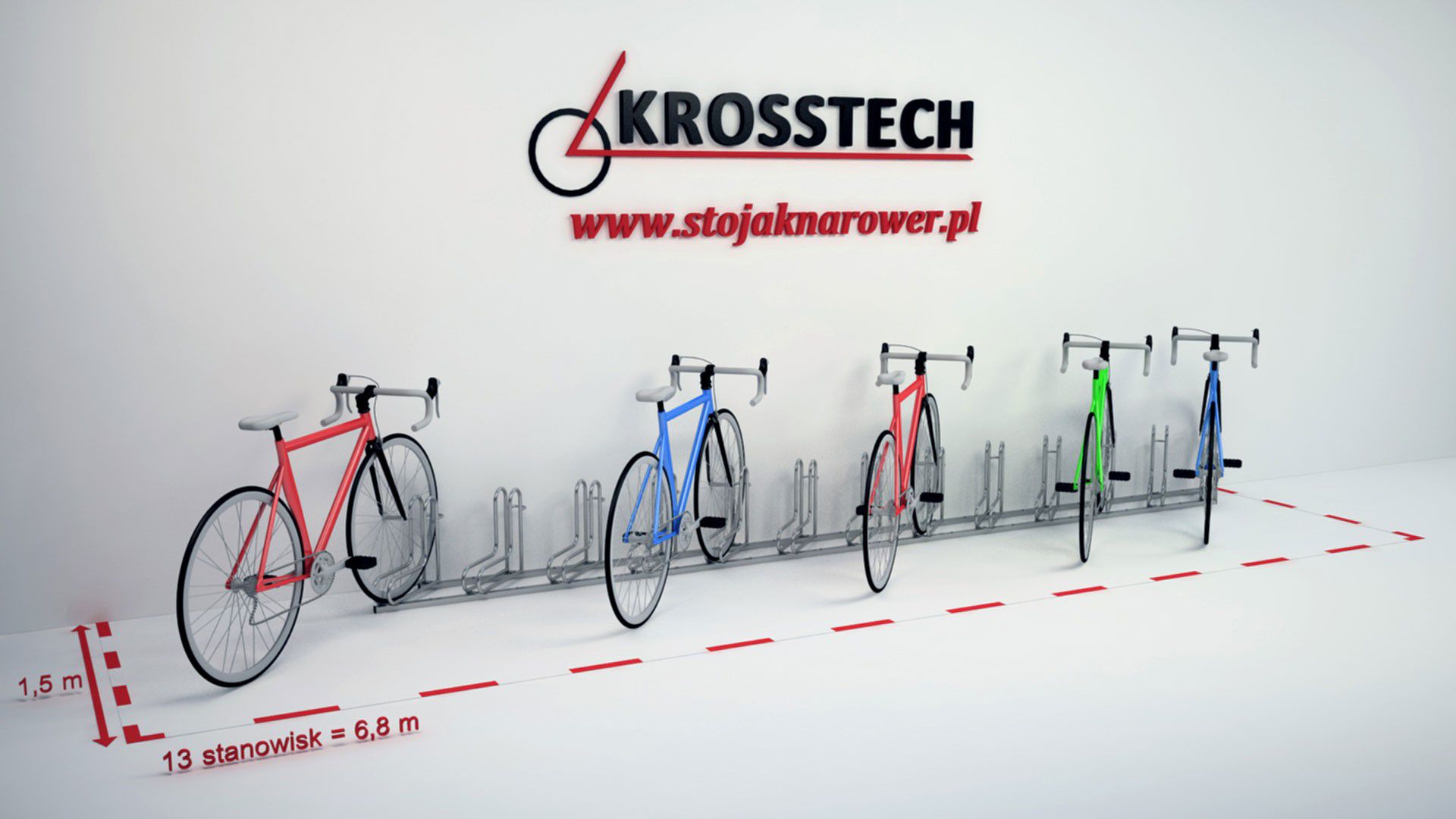

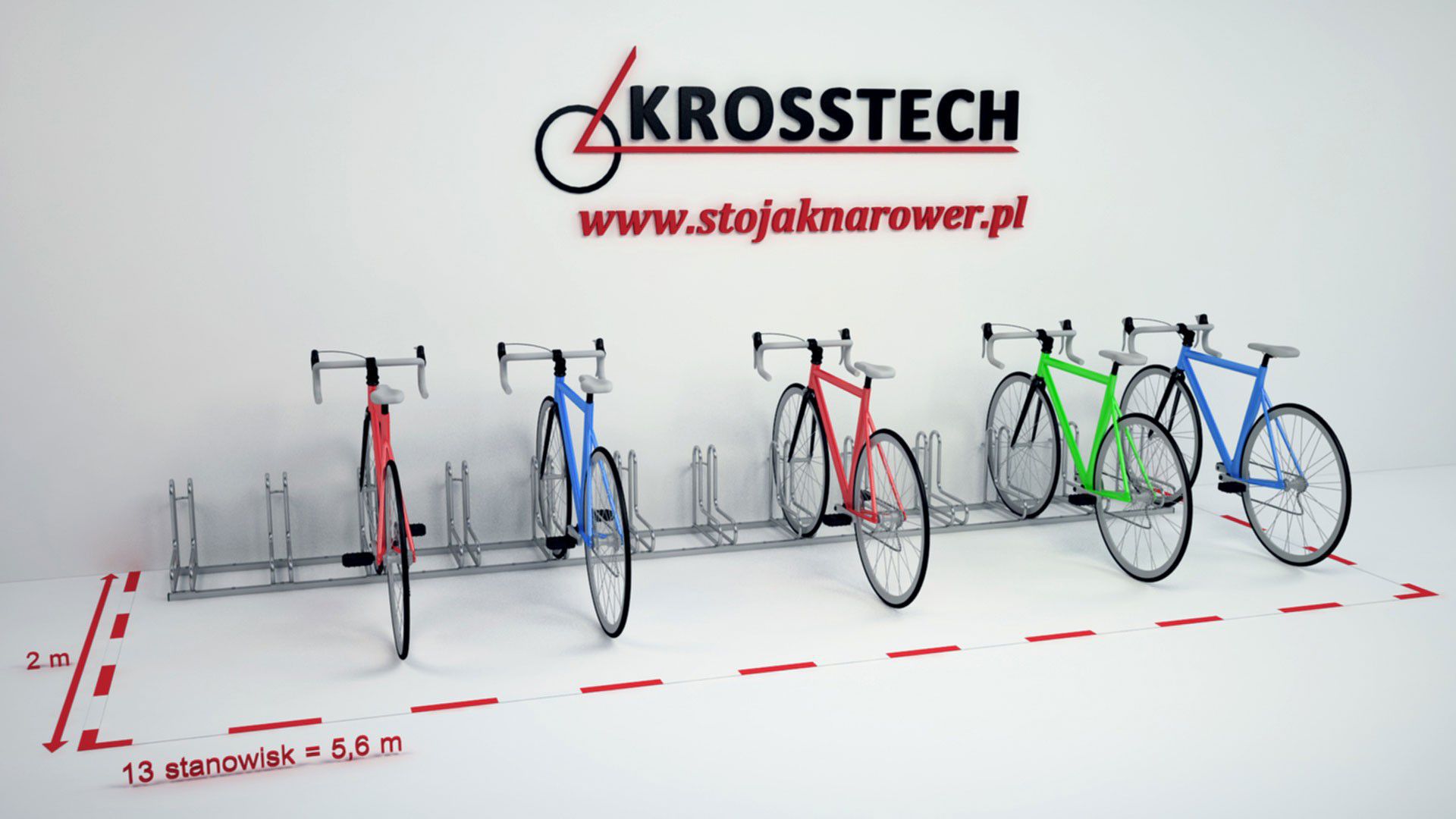

- Spaces set at a 90 or 45 degree angle
- Single-sided parking
- Galvanised, painted or stainless steel
- 12 plugs and mounting screws included
Stojak rowerowy Elsa 13 stanowisk zapewnia 13 miejsc postojowych na długości 516 cm. Rowery parkuje się z jednej strony, a stanowiska ustawicie pod kątem 90 albo 45 stopni, zależnie od tego, ile miejsca macie przed stojakiem.
Konstrukcję wykonano z rurki o przekroju 18 mm, osadzonej na profilu 30x30x1,5 mm. Do wyboru są trzy wykonania: stal ocynkowana, stal ocynkowana i malowana albo stal nierdzewna. Wariant ustalimy z Wami indywidualnie.
Stojak przykręcacie do podłoża. Kołki i śruby są w zestawie.
- liczba stanowisk: 13
- wymiary (szer. x wys. x gł.): 516 x 42 x 56 cm
- szerokość stanowiska: 6,5 cm, odstęp między stanowiskami: 42 cm
- waga: 44 kg
- montaż: 12 kołków rozporowych Ø 10x100 mm i śruby Ø 7x107 mm, klucz SW13 lub T40
Specification
| number of bike spaces | 13 |
| rack/hanger width | 516cm |
| height | 42cm |
| depth | 56cm |
| bike space width | 6.5cm |
| spacing between bike spaces | 42cm |
| tube diameter | 18mm |
| tube wall thickness | 2mm |
| rack profile | 30x30x1.5mm |
| material | galvanised steel, galvanised and painted steel, stainless steel |
| bike space adjustment | adjustable (90 and 45 degrees) |
| parking arrangement | single-sided |
| fixing method | to the ground |
| installation method | bolt-down |
| weight | 44kg |
| installation | 12 Ø 10x100mm expansion plugs for Ø 7x107mm screws (included), for SW13 or T40 drive |
| bike space arrangement | angled or perpendicular |
