Elsa 11-Space Bike Rack
Product code: UF-MAST109
The Elsa 11-Space Bike Rack holds eleven bicycles across a width of 432 cm and is designed for larger cycle parking areas. It is available in galvanised, galvanised and powder-coated, or stainless steel. The spaces can be set at an angle of 90 or 45 degrees.
Product description
- 11 bike spaces across a width of 432 cm

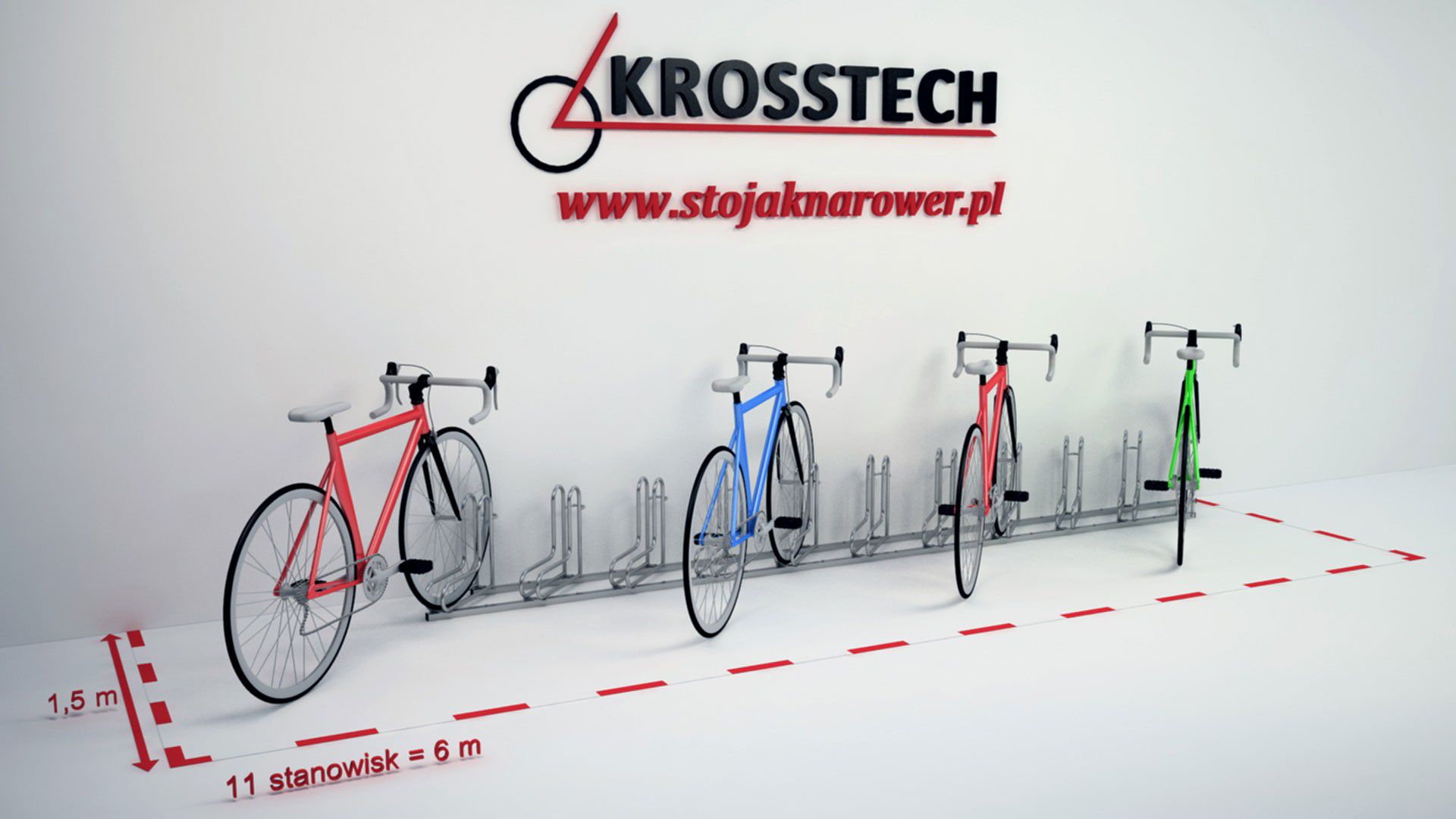

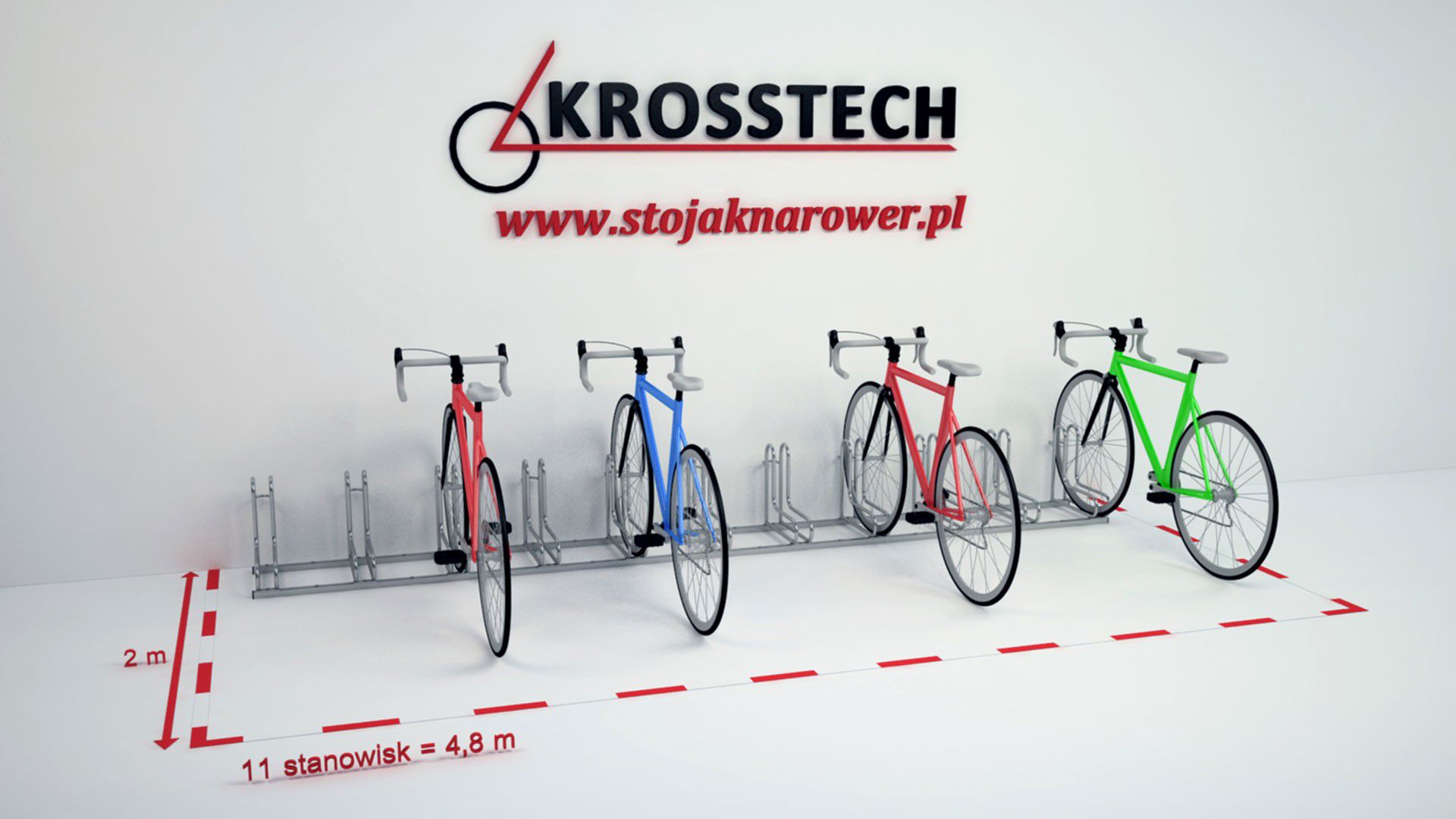

- Spaces set at a 90 or 45 degree angle
- Galvanised, painted or stainless steel
- 12 fixing plugs and screws included
- Weight 37 kg
Stojak rowerowy Elsa 11 stanowisk mieści jedenaście rowerów. Ma 432 cm szerokości, 42 cm wysokości i 56 cm głębokości. Stanowiska mają 6,5 cm szerokości i są rozstawione co 42 cm. Rowery parkuje się z jednej strony, prostopadle albo skośnie, bo kąt stanowisk można ustawić na 90 lub 45 stopni.
Rama jest z profilu 30x30x1,5 mm, a uchwyty z rurki o przekroju 18 mm i ściance 2 mm. Do wyboru jest stal ocynkowana, ocynkowana i malowana albo nierdzewna. Wariant ustalimy z Wami indywidualnie.
Stojak przykręca się do podłoża. W zestawie jest 12 kołków rozporowych Ø 10x100 mm ze śrubami Ø 7x107 mm pod klucz SW13 lub T40.
- Liczba stanowisk: 11
- Wymiary: 432 x 56 x 42 cm (szer. x gł. x wys.)
- Odległość między stanowiskami: 42 cm
- Waga: 37 kg
Specification
| number of bike spaces | 11 |
| rack/hanger width | 432cm |
| height | 42cm |
| depth | 56cm |
| bike space width | 6.5cm |
| spacing between bike spaces | 42cm |
| tube diameter | 18mm |
| tube wall thickness | 2mm |
| rack profile | 30x30x1.5mm |
| material | galvanised steel, galvanised and painted steel, stainless steel |
| bike space adjustment | adjustable (90 and 45 degrees) |
| parking arrangement | single-sided |
| fixing method | to the ground |
| installation method | bolt-down |
| weight | 37kg |
| installation | 12 Ø 10x100mm expansion plugs for Ø 7x107mm screws (included), for SW13 or T40 drive |
| bike space arrangement | angled or perpendicular |
