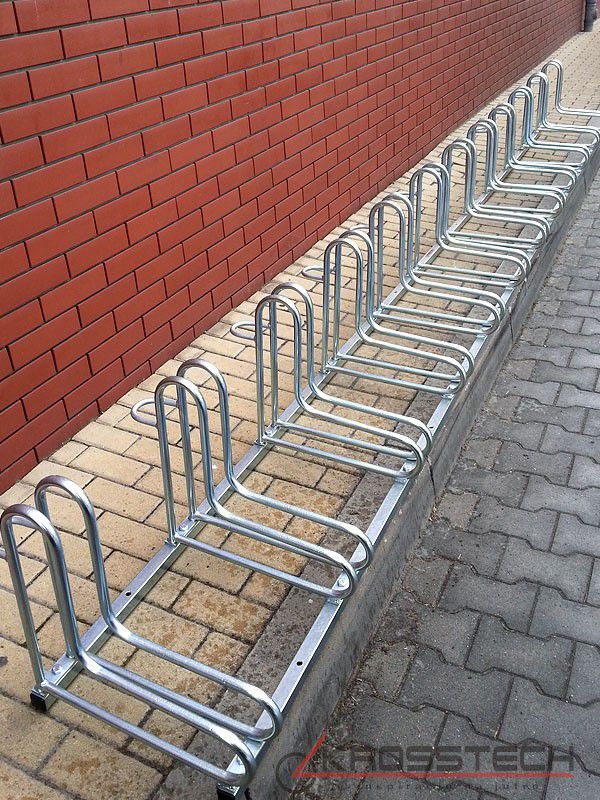

Elsa 12-Space Bike Rack
Product code: UF-MAST110
The Elsa 12-Space Bike Rack is a surface-mounted steel structure for 12 bicycles with a width of 474 cm. The spaces can be set perpendicular or at an angle. It is suitable for cycle parking at public buildings, housing estates and office buildings.
Product description
- 12 bike spaces across a width of 474 cm

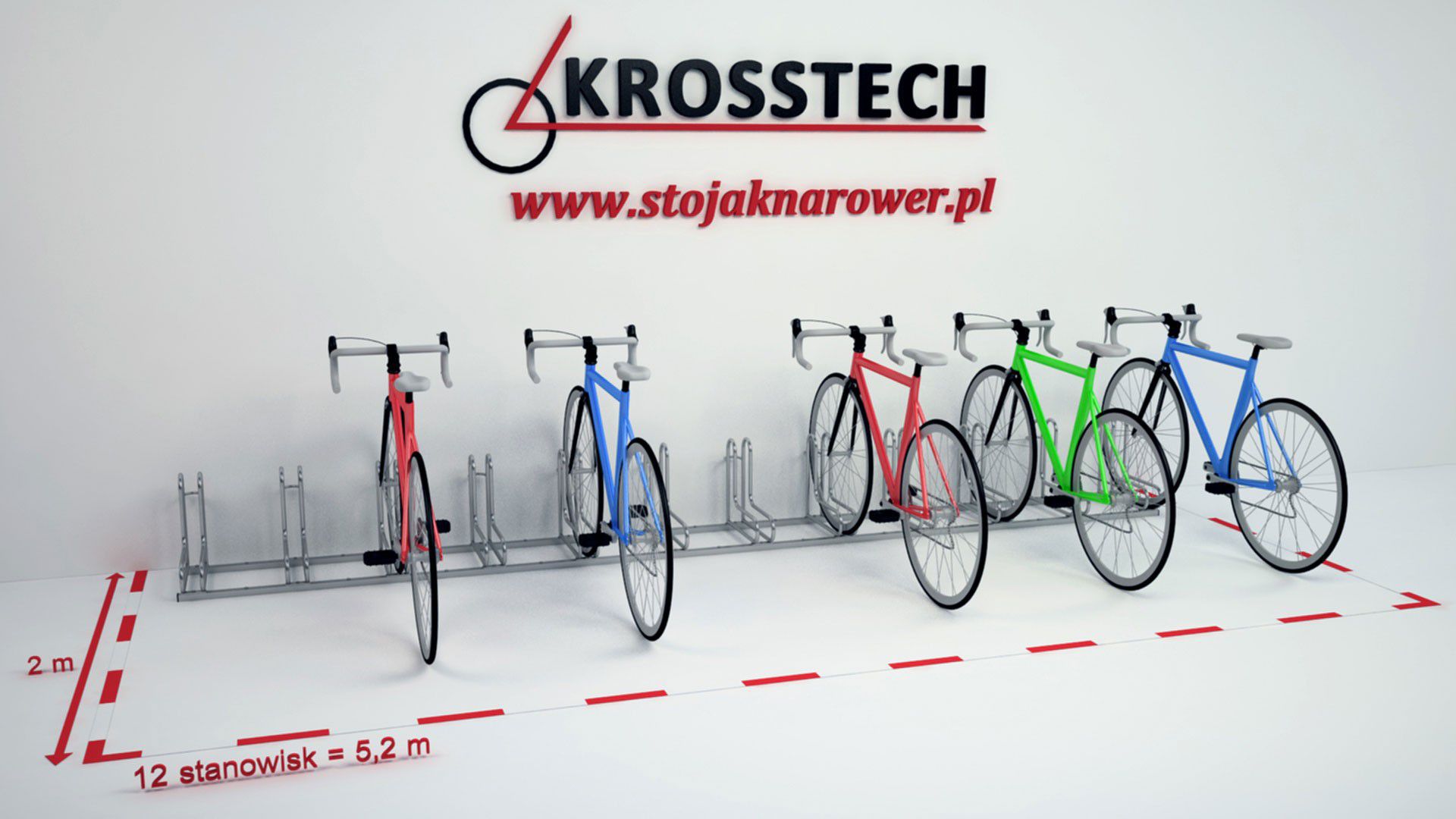

- Adjustable bike spaces: 90 or 45 degrees
- Galvanised, painted or stainless steel
- Full set of wall plugs and bolts included
- Weight 40 kg
Stojak rowerowy Elsa 12 stanowisk daje 12 miejsc na rowery w jednym rzędzie o długości 474 cm. Rowery parkuje się z jednej strony, a stanowiska są regulowane: możecie je ustawić pod kątem 90 albo 45 stopni, czyli prostopadle albo skośnie. Przy wąskim chodniku czy alejce wybierzcie wariant skośny.
Rama jest z profilu 30x30x1,5 mm, a stanowiska z rurki o przekroju 18 mm i grubości ścianki 2 mm. Stojak waży 40 kg. Przykręca się go do podłoża, a 12 kołków rozporowych ze śrubami jest w zestawie.
Do wyboru jest stal ocynkowana, stal ocynkowana i malowana albo stal nierdzewna. Wariant wykończenia ustalimy z Wami indywidualnie. Stojak sprawdzi się przy urzędach, na osiedlach i przy biurowcach.
- Liczba stanowisk: 12
- Wymiary: 474 x 56 x 42 cm (szer. x gł. x wys.)
- Szerokość stanowiska: 6,5 cm, odstęp: 42 cm
- Waga: 40 kg
- Montaż: 12 kołków Ø 10x100 mm, śruby Ø 7x107 mm, klucz SW13 lub T40
Specification
| number of bike spaces | 12 |
| rack/hanger width | 474cm |
| height | 42cm |
| depth | 56cm |
| bike space width | 6.5cm |
| spacing between bike spaces | 42cm |

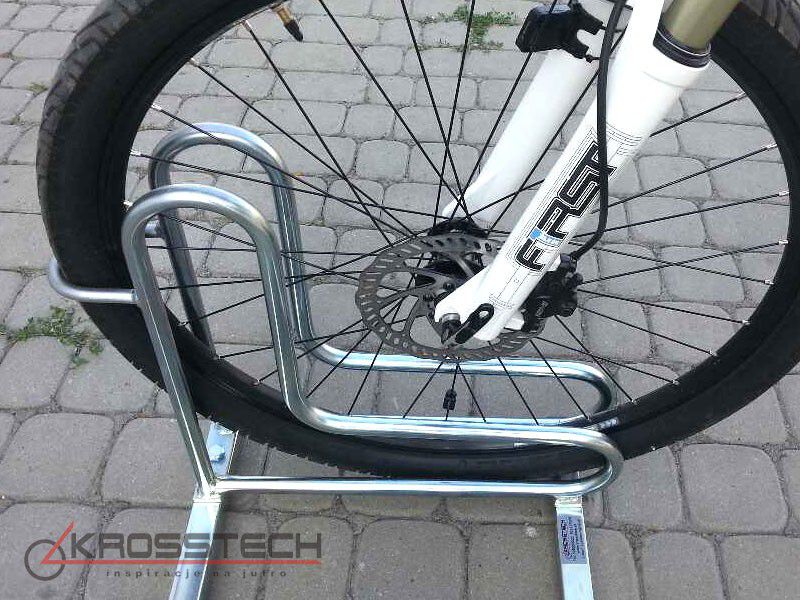

| tube diameter | 18mm |
| tube wall thickness | 2mm |
| rack profile | 30x30x1.5mm |
| material | galvanised steel, galvanised and painted steel, stainless steel |
| bike space adjustment | adjustable (90 and 45 degrees) |
| parking arrangement | single-sided |
| fixing method | to the ground |
| installation method | bolt-down |
| weight | 40kg |
| installation | 12 Ø 10x100mm expansion plugs for Ø 7x107mm screws (included), for SW13 or T40 drive |
| bike space arrangement | angled or perpendicular |
