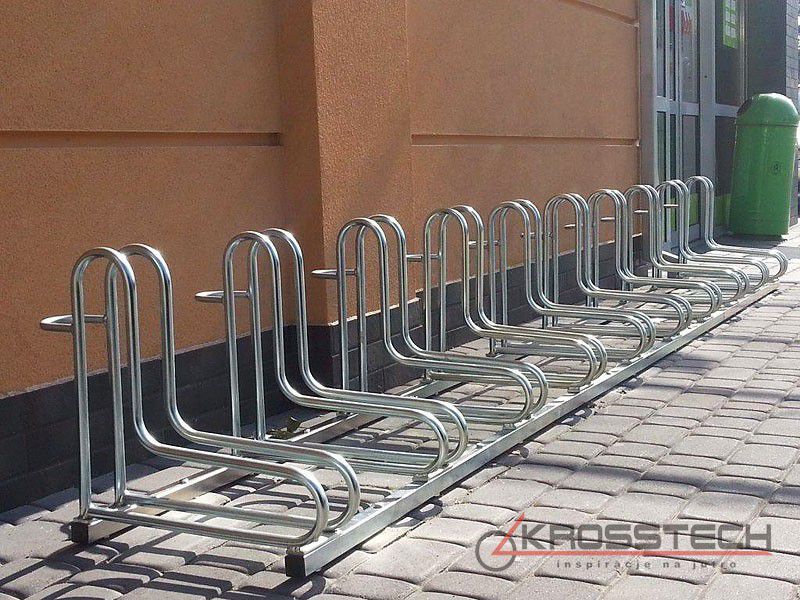

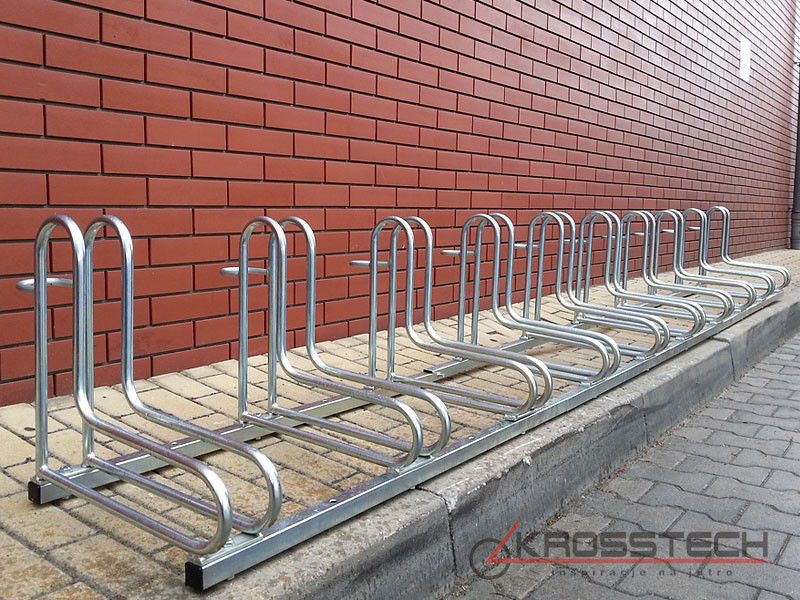

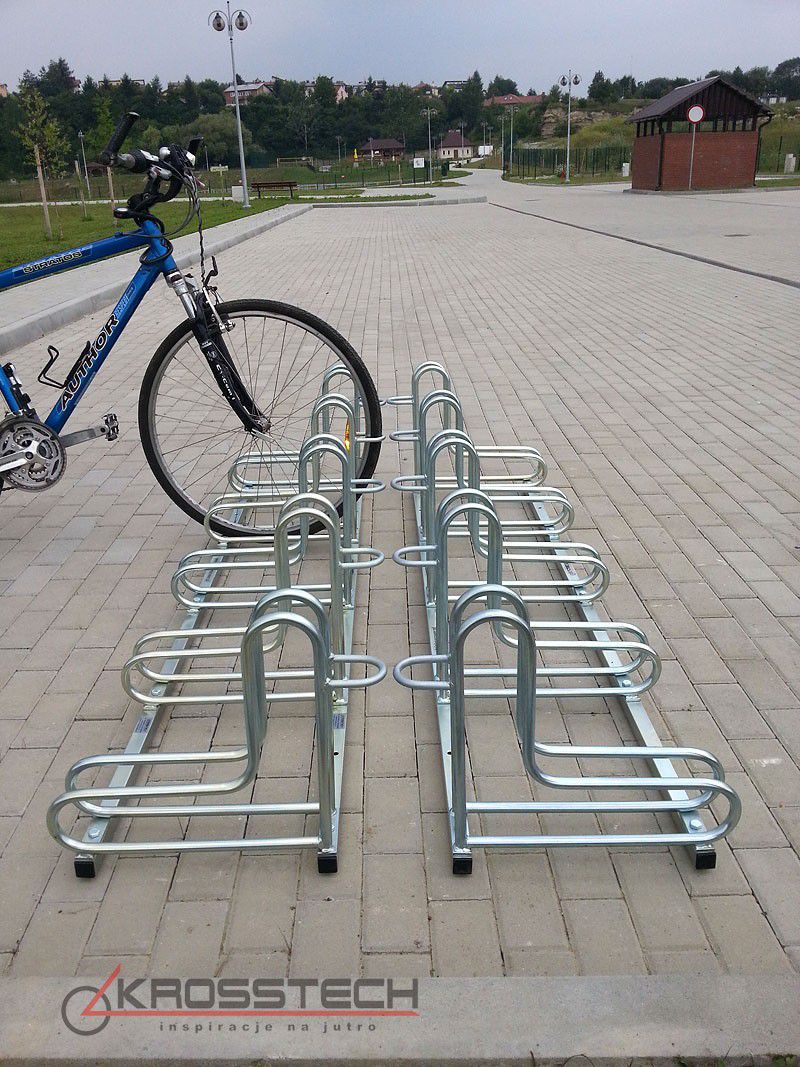

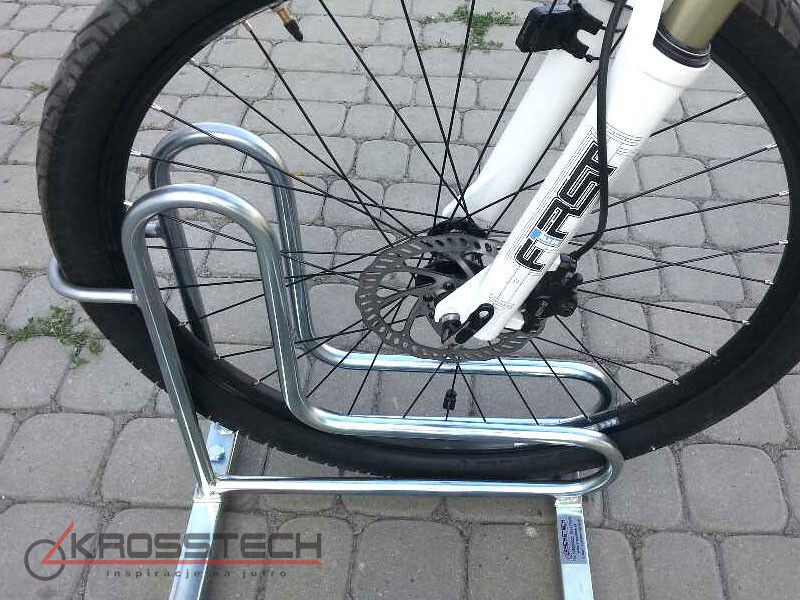

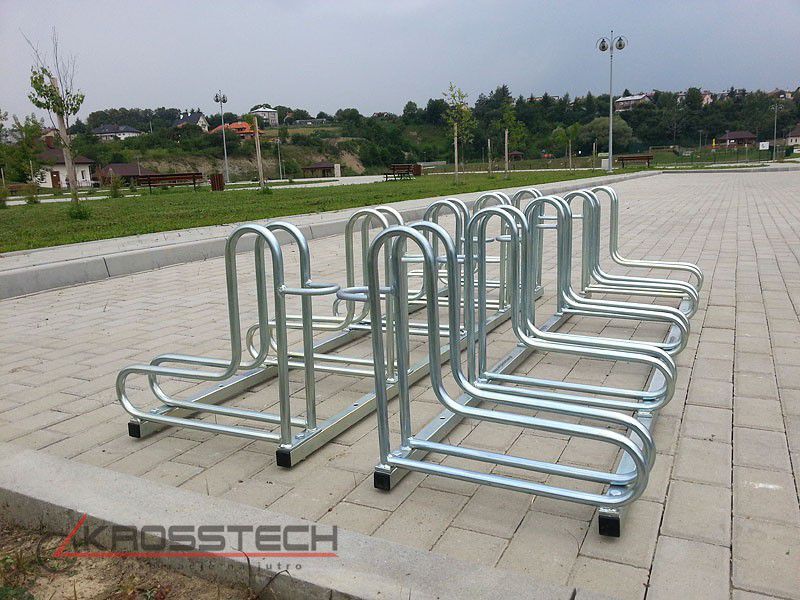

Elsa 10-Space Bike Rack
Product code: UF-MAST112
The Elsa 10-Space Bike Rack is a surface-mounted steel rack for 10 bicycles. The spaces can be set perpendicular or at an angle (90 or 45 degrees). The rack is available in galvanised, galvanised and powder-coated, or stainless steel.
Product description
- 10 bike spaces across a width of 390 cm

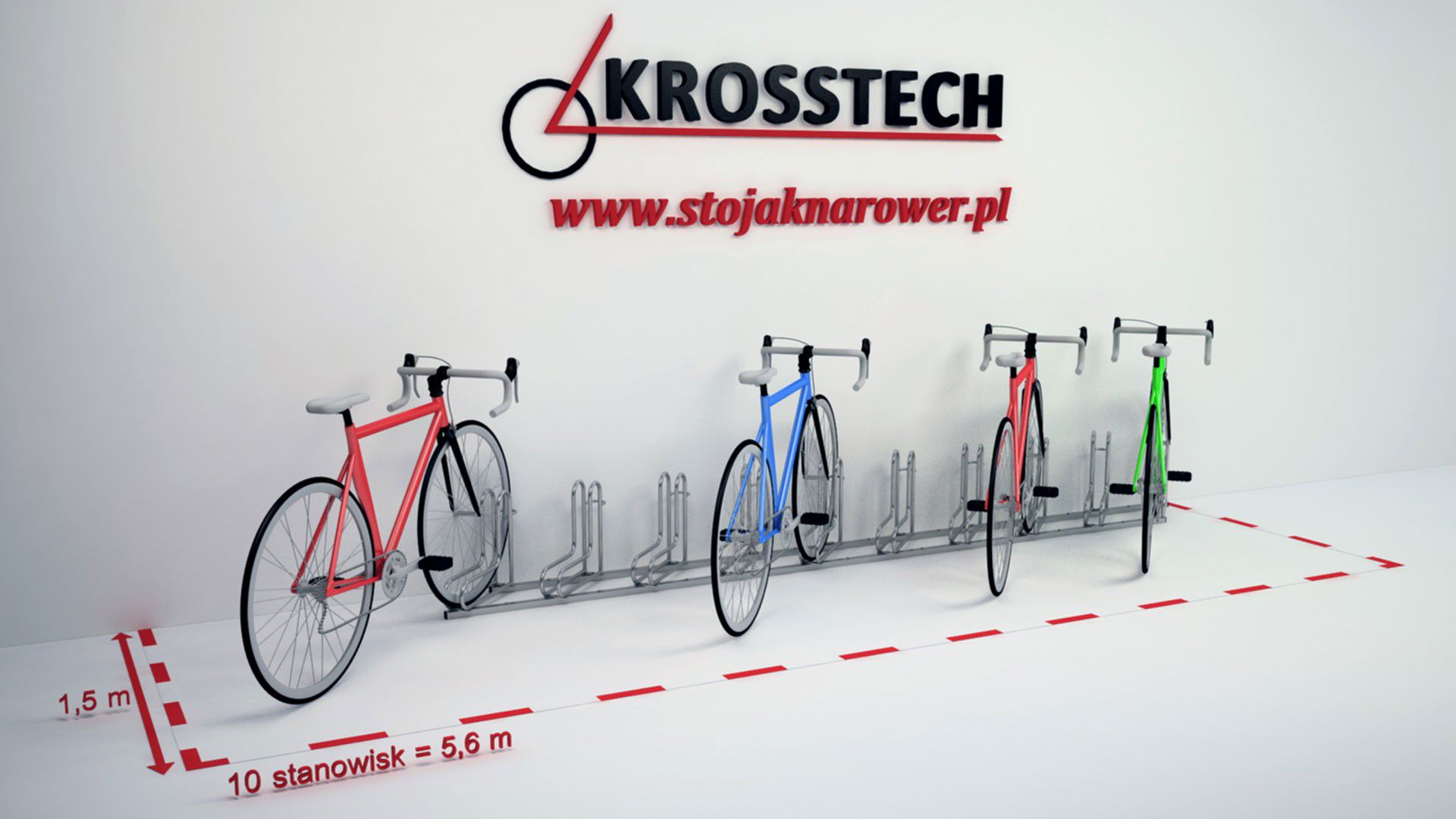

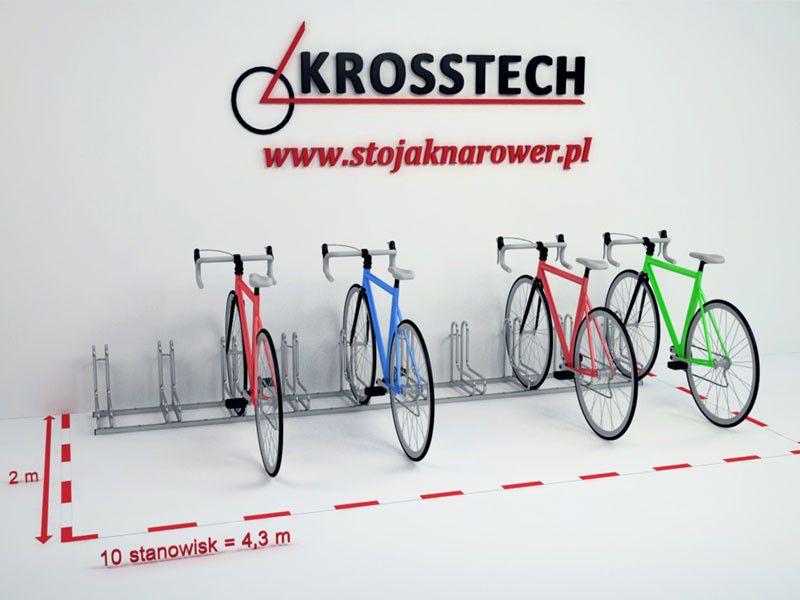

- Adjustable bike space angle: 90 or 45 degrees
- Galvanised, painted or stainless steel
- 8 fixing anchors included
- Weight 35 kg
Stojak rowerowy Elsa 10 stanowisk mieści 10 rowerów na odcinku o szerokości 390 cm. Stojak jest niski (42 cm) i ma 56 cm głębokości. Stanowiska są rozmieszczone co 42 cm, a każde ma szerokość 6,5 cm.
Stanowiska można ustawić pod kątem 90 lub 45 stopni. Ustawienie skośne przydaje się tam, gdzie przy stojaku jest mniej miejsca. Konstrukcję wykonano z profilu 30 x 30 x 1,5 mm i rurek o przekroju 18 mm i grubości ścianki 2 mm.
Stojak przykręca się do podłoża. W zestawie jest 8 kołków rozporowych Ø 10 x 100 mm ze śrubami Ø 7 x 107 mm, które dokręcicie kluczem SW13 albo T40. Wariant wykończenia (stal ocynkowana, ocynkowana i malowana albo nierdzewna) ustalimy z Wami indywidualnie.
- Liczba stanowisk: 10
- Wymiary: 390 x 56 x 42 cm (szer. x gł. x wys.)
- Rozstaw stanowisk: 42 cm
- Waga: 35 kg
Specification
| number of bike spaces | 10 |
| rack/hanger width | 390cm |
| height | 42cm |
| depth | 56cm |
| bike space width | 6.5cm |
| spacing between bike spaces | 42cm |
| tube diameter | 18mm |
| tube wall thickness | 2mm |
| rack profile | 30x30x1.5mm |
| material | galvanised steel, galvanised and painted steel, stainless steel |
| bike space adjustment | adjustable (90 and 45 degrees) |
| fixing method | to the ground |
| installation method | bolt-down |
| weight | 35kg |
| installation | 8 expansion anchors Ø 10x100mm for Ø 7x107mm screws (included), for SW13 spanner or T40 bit |
| bike space arrangement | angled or perpendicular |
