Kornel bike rack, 8 spaces
Product code: UF-MAST094

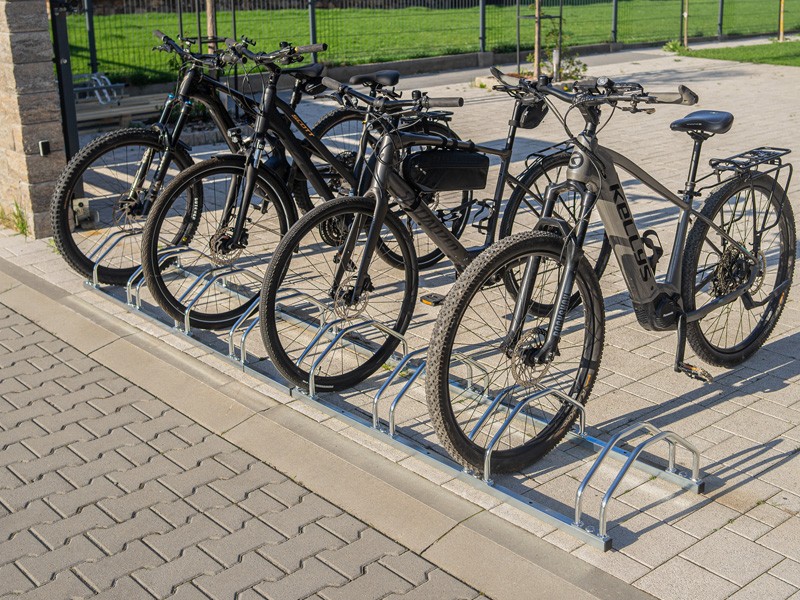

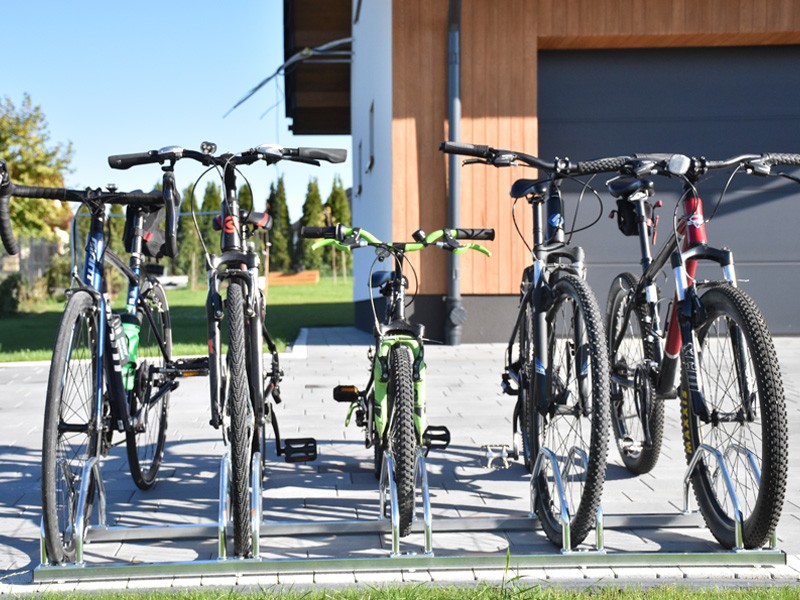

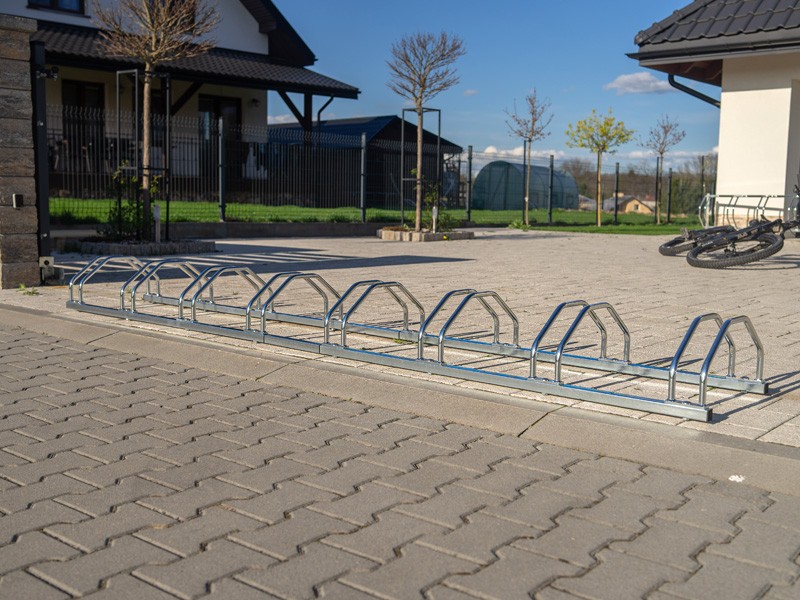

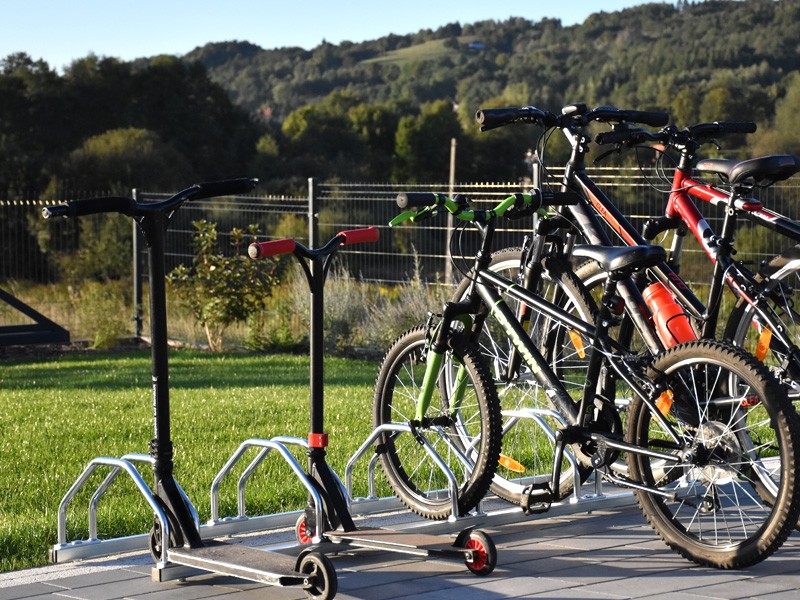

The Kornel bike rack with 8 spaces is a steel rack for eight bicycles, 306 cm wide, bolted to the ground. It suits bike parking areas at schools, public offices, sports facilities, residential estates and business premises.
Product description
- 8 bike spaces across a width of 306 cm
- Angled or perpendicular layout
- Angle adjustable from 90 to 45 degrees
- 8 expansion anchors included
- Galvanised, painted or stainless steel
Stojak rowerowy Kornel 8 stanowisk zapewnia osiem miejsc postojowych w jednym rzędzie o długości 306 cm. Sprawdzi się na większych parkingach rowerowych przy obiektach publicznych, na osiedlach i przy biurach.

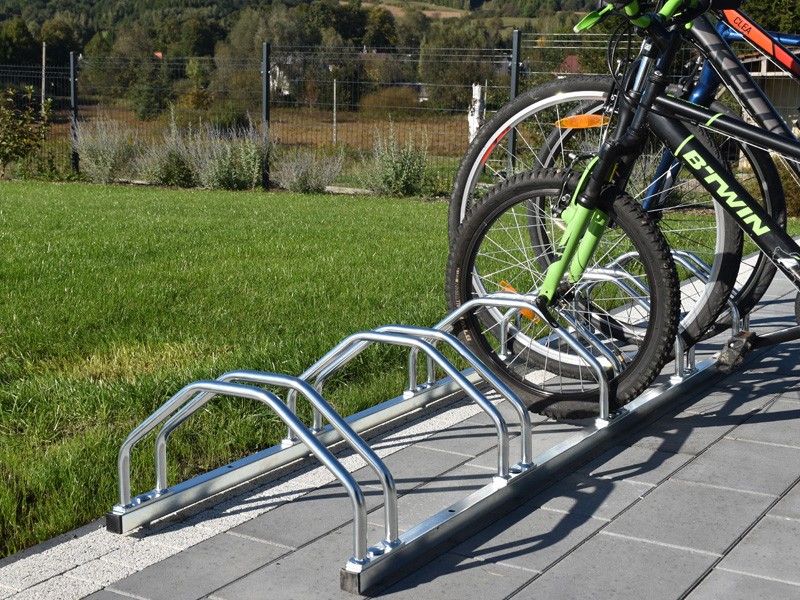

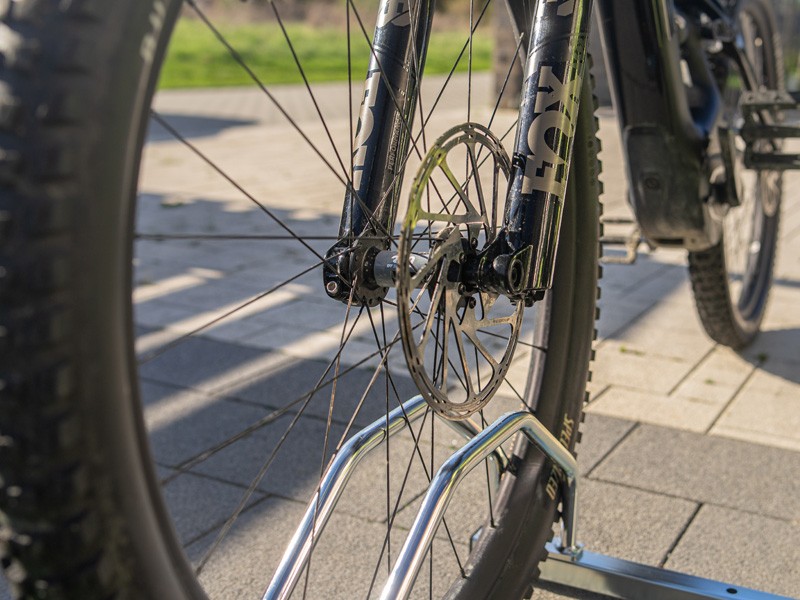

Konstrukcję tworzy rurka 18 mm o ściance 2 mm, mocowana na profilu 30x30x1,5 mm. Stanowiska regulujecie w zakresie od 90 do 45 stopni, dzięki czemu rowery mogą stać prostopadle lub skośnie.
Stojak przykręca się do podłoża. Do zestawu dołączamy 8 kołków rozporowych Ø 10x100 mm ze śrubami Ø 7x107 mm pod klucz SW13 lub T40. Wykończenie wybieracie spośród stali ocynkowanej, ocynkowanej i malowanej albo nierdzewnej, a szczegóły ustalimy indywidualnie.
- Liczba stanowisk: 8
- Wymiary (szer. x wys. x gł.): 306 x 26 x 45,5 cm
- Szerokość stanowiska: 6,5 cm, rozstaw: 42 cm
- Waga: 19 kg
Specification
| number of bike spaces | 8 |
| rack/hanger width | 306cm |
| rack height | 26cm |
| rack depth | 45.5cm |
| bike space width | 6.5cm |
| spacing between bike spaces | 42cm |
| tube diameter | 18mm |
| tube wall thickness | 2mm |
| rack profile | 30x30x1.5mm |
| material | galvanised steel, galvanised and painted steel, stainless steel |
| bike space adjustment | range from 90 to 45 degrees |
| fixing method | to the ground |
| installation method | bolt-down |
| weight | 19kg |
| installation | 8 expansion anchors Ø 10x100mm for Ø 7x107mm screws (included), for SW13 spanner or T40 bit |
| bike space arrangement | angled or perpendicular |
