Kornel Bike Rack 10 Spaces
Product code: UF-MAST131

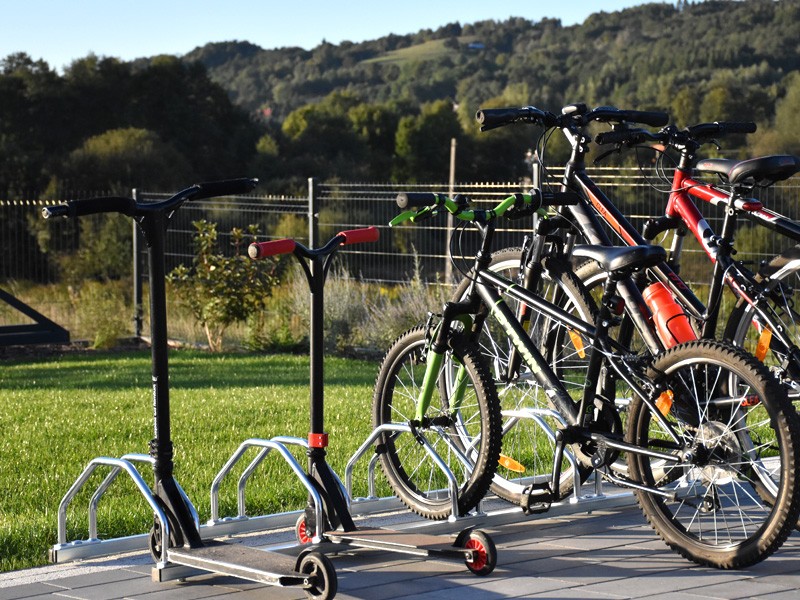

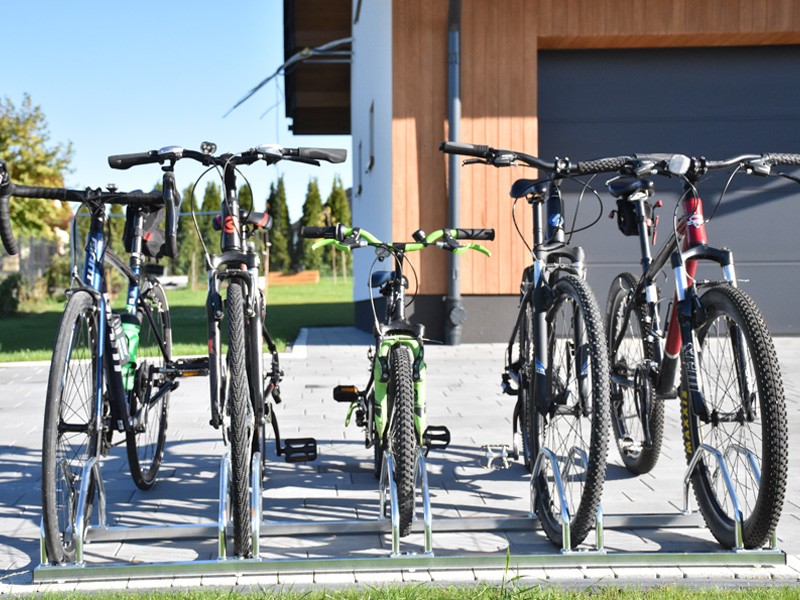

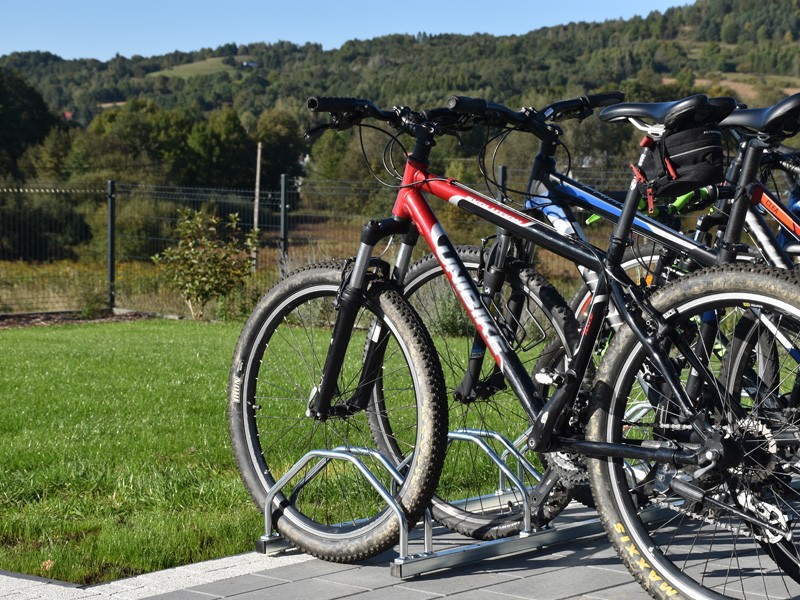

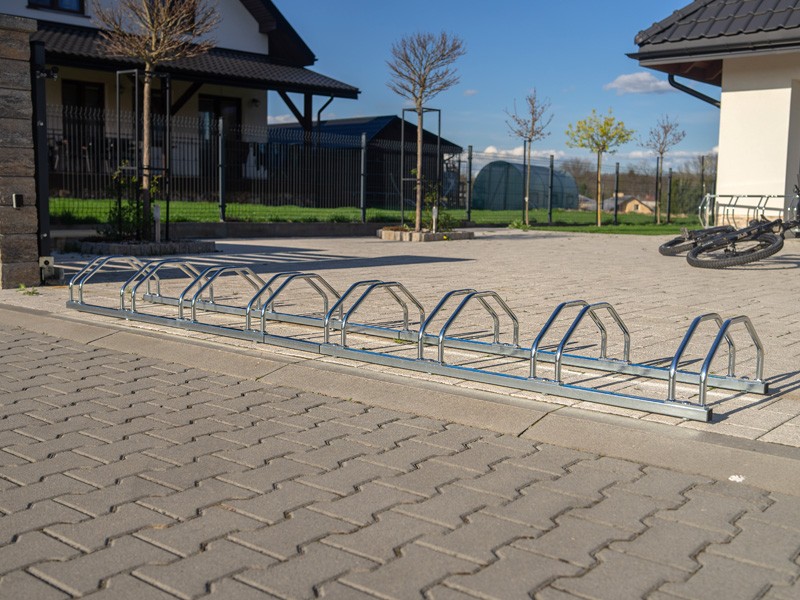

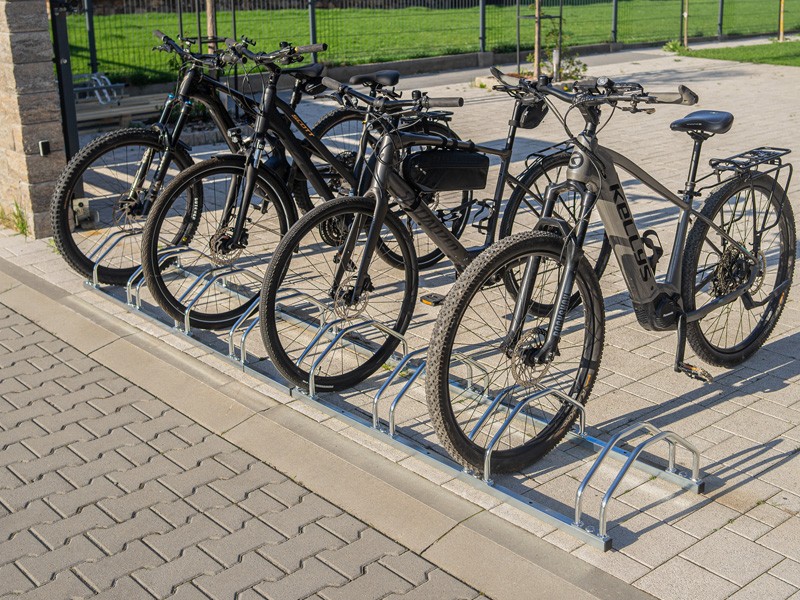

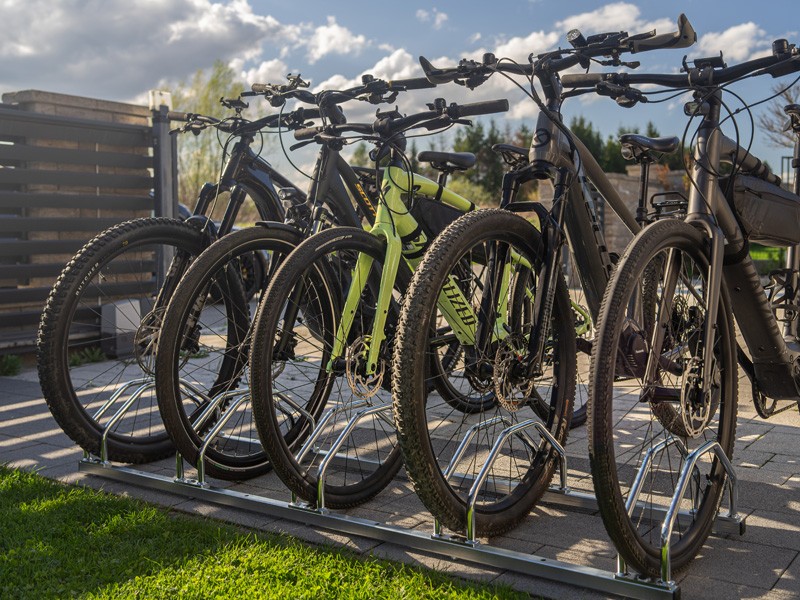

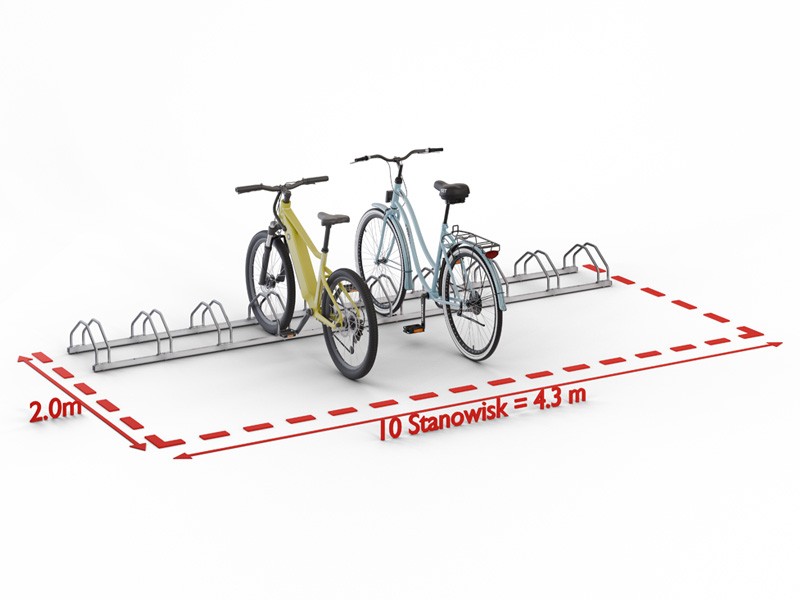

The Kornel Bike Rack 10 Spaces is a steel tube rack with 10 parking spaces. It is 390 cm wide and the angle of the spaces can be adjusted from 90 to 45 degrees. It is fixed to the ground or to a wall, for example at a school, council office or housing estate.
Product description
- 10 stands over a length of 390 cm
- Space angle adjustable from 90 to 45 degrees
- Floor or wall installation
- Galvanised, painted or stainless steel
- Fixing anchors and screws included

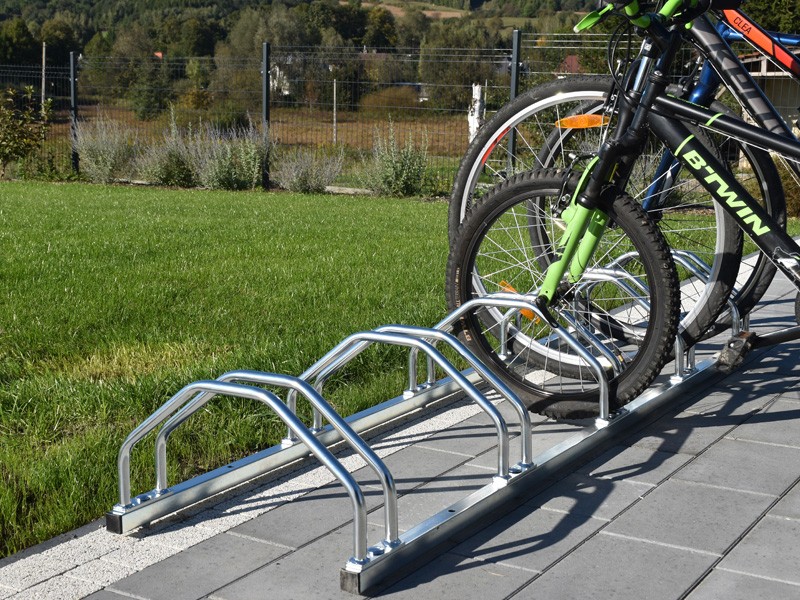

Stojak rowerowy Kornel 10 stanowisk ma klasyczną konstrukcję z rurki stalowej osadzonej na profilu 30x30x1,5 mm. Jeden stojak zapewnia 10 miejsc postojowych na długości 390 cm. Kolejne stanowiska dzieli odstęp 42 cm.
Kąt ustawienia stanowisk regulujecie w zakresie od 90 do 45 stopni, więc stojak dopasujecie do miejsca, które macie na chodniku albo przy elewacji. Konstrukcja jest niska, ma 26 cm wysokości i 45,5 cm głębokości.
Do wyboru są trzy wykonania: stal ocynkowana, stal ocynkowana i malowana albo stal nierdzewna. Wariant wykończenia ustalimy z Wami indywidualnie. Stojak przykręcacie do podłoża lub do ściany. Kołki i śruby są w zestawie.
- liczba stanowisk: 10
- wymiary (szer. x wys. x gł.): 390 x 26 x 45,5 cm
- szerokość stanowiska: 6,5 cm
- rurka: przekrój 18 mm, grubość ścianki 2 mm
- waga: 25 kg
- montaż: 8 kołków rozporowych Ø 10x100 mm i śruby Ø 7x107 mm, klucz SW13 lub T40
Specification
| number of bike spaces | 10 |
| rack/hanger width | 390cm |
| rack height | 26cm |
| rack depth | 45.5cm |
| bike space width | 6.5cm |
| spacing between bike spaces | 42cm |
| tube diameter | 18mm |
| tube wall thickness | 2mm |
| rack profile | 30x30x1.5mm |
| material | galvanised steel, galvanised and painted steel, stainless steel |
| bike space adjustment | range from 90 to 45 degrees |
| fixing method | to ground or wall |
| installation method | bolt-down |
| weight | 25kg |
| installation | 8 expansion anchors Ø 10x100mm for Ø 7x107mm screws (included), for SW13 spanner or T40 bit |
