Kornel 13-Space Bike Rack
Product code: UF-MAST157

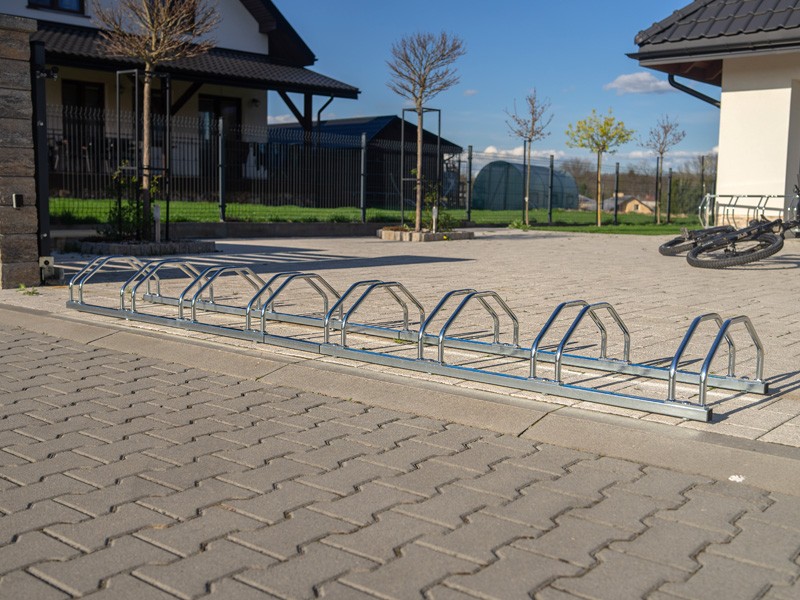

The Kornel 13-space bike rack is a low, surface-mounted steel rack. It holds 13 bicycles over a length of 516 cm. The spaces can be set at an angle from 90° to 45°. It is suitable for public spaces, housing estates and business premises.
Product description
- 13 stands over a length of 516 cm
- Low-profile design, height 26 cm
- Angle adjustable from 90° to 45°
- 12 fixing plugs included
- Weight 32 kg
Stojak rowerowy Kornel 13 stanowisk to niska konstrukcja: ma 26 cm wysokości, 45,5 cm głębokości i 516 cm szerokości. Mieści 13 rowerów. Stanowiska mają po 6,5 cm szerokości i stoją co 42 cm.

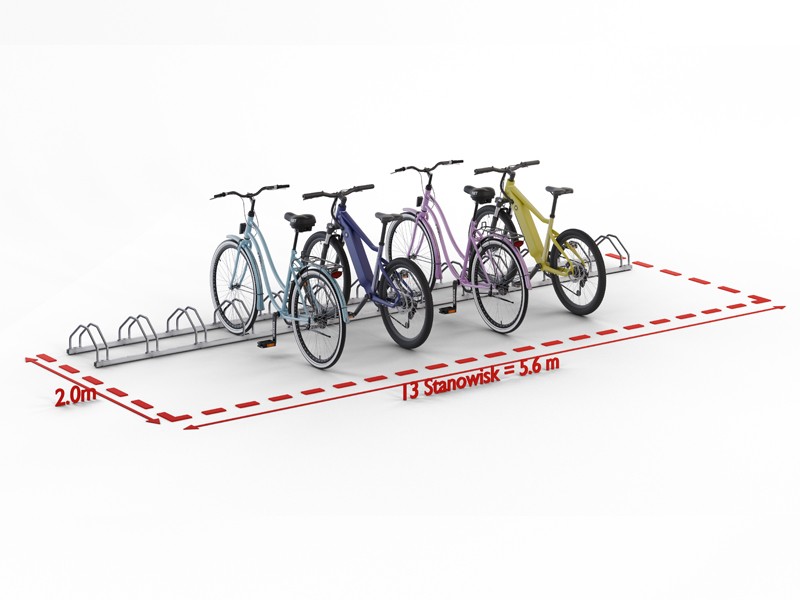

Kąt stanowisk ustawicie w zakresie od 90° do 45°, czyli prostopadle albo skośnie, zależnie od miejsca. Stojak wykonano z rurki 18 mm o ściance 2 mm, na profilu 30x30x1,5 mm.
Do wyboru są trzy wykonania: stal ocynkowana, stal ocynkowana i malowana albo stal nierdzewna. Wariant ustalimy z Wami indywidualnie. Stojak przykręca się do podłoża, a 12 kołków rozporowych ze śrubami jest w zestawie.
- Liczba stanowisk: 13
- Wymiary: 516 × 45,5 × 26 cm
- Waga: 32 kg
- Montaż: 12 kołków Ø 10x100 mm, śruby Ø 7x107 mm, klucz SW13 lub T40
Specification
| number of bike spaces | 13 |
| rack/hanger width | 516cm |
| rack height | 26cm |
| rack depth | 45.5cm |
| bike space width | 6.5cm |
| spacing between bike spaces | 42cm |
| tube diameter | 18mm |
| tube wall thickness | 2mm |
| rack profile | 30x30x1.5mm |
| material | galvanised steel, galvanised and painted steel, stainless steel |
| bike space adjustment | range from 90 to 45 degrees |
| fixing method | to the ground |
| installation method | bolt-down |
| weight | 32kg |
| installation | 12 Ø 10x100mm expansion plugs for Ø 7x107mm screws (included), for SW13 or T40 drive |
| bike space arrangement | angled or perpendicular |
