Kornel bike rack, 6 spaces
Product code: UF-MAST093

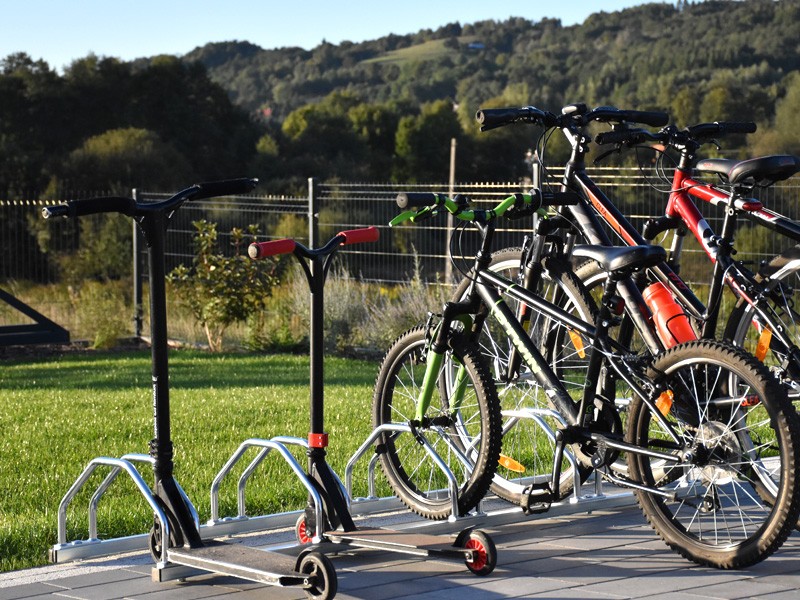

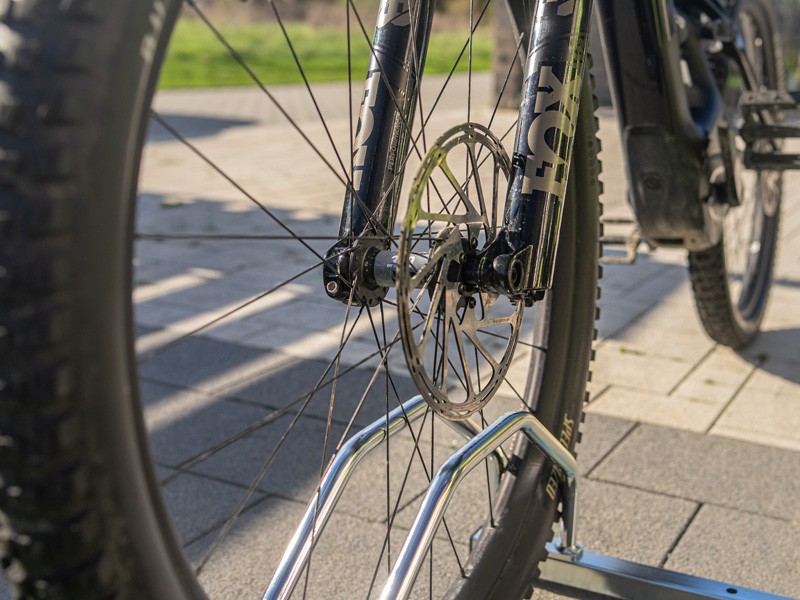

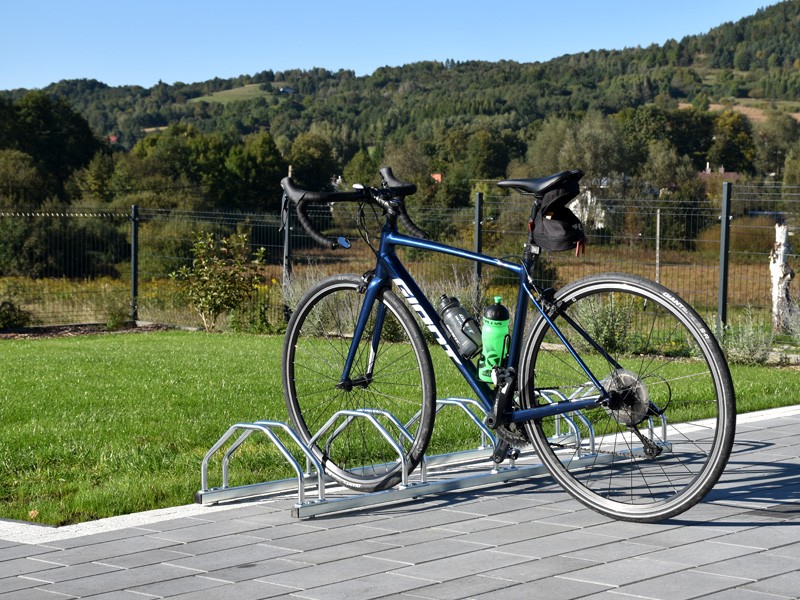

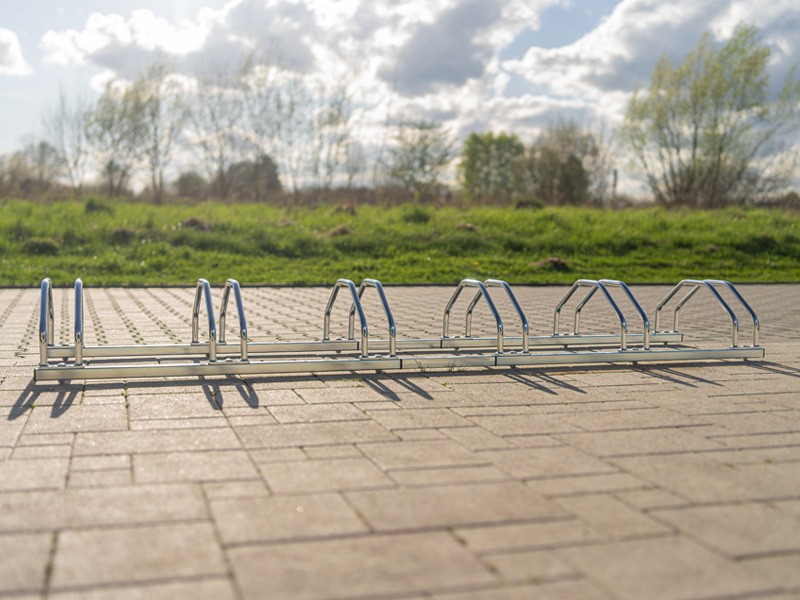

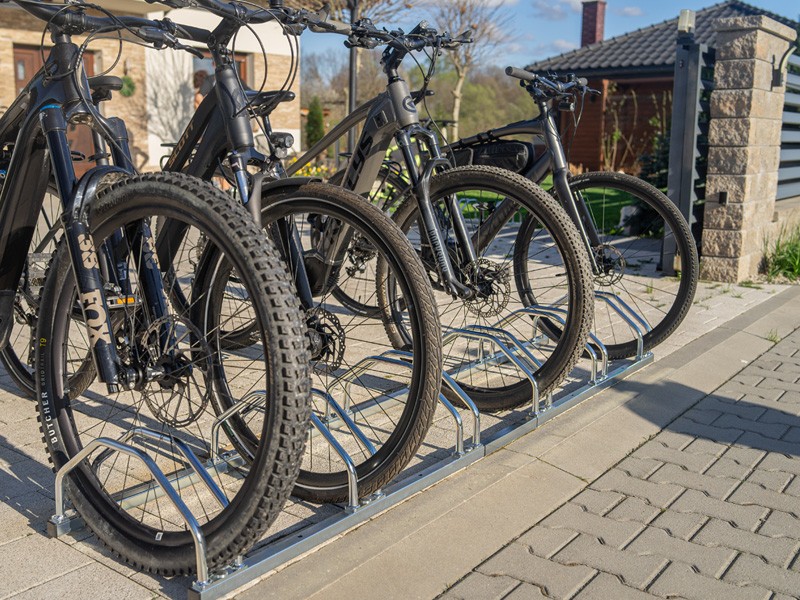

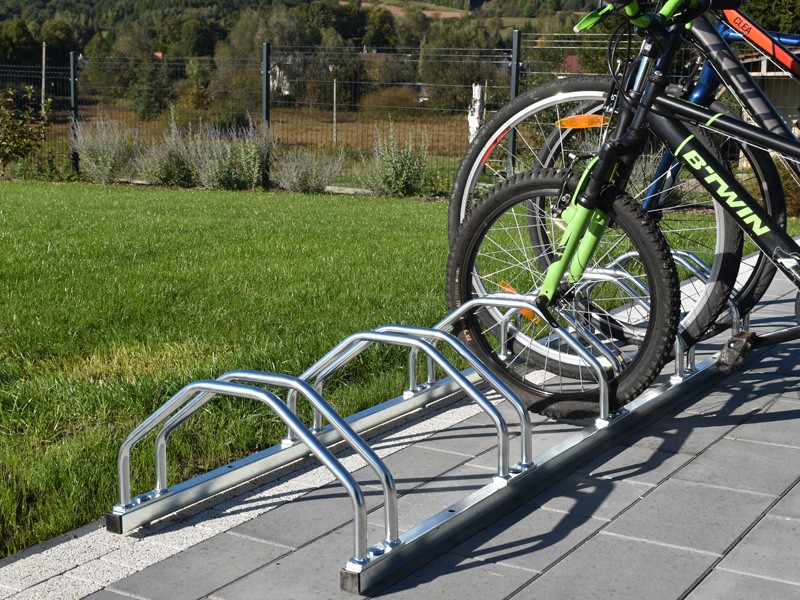

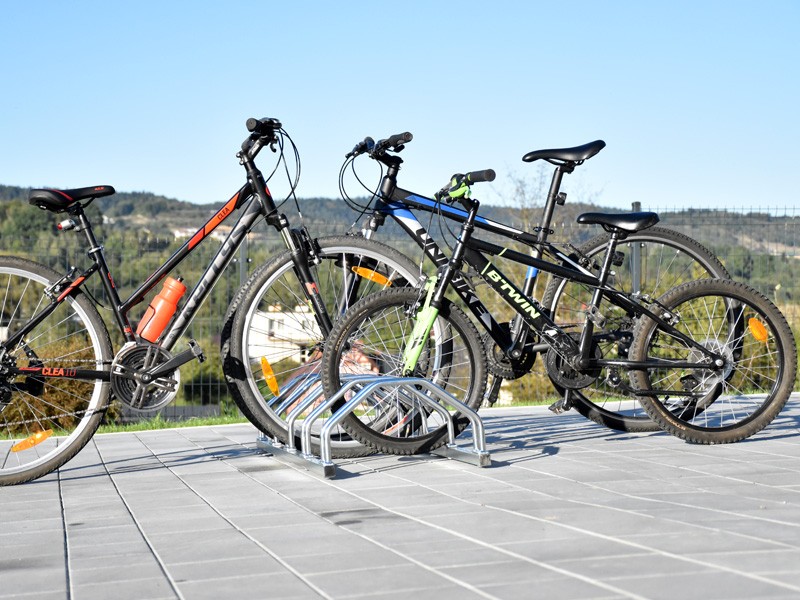

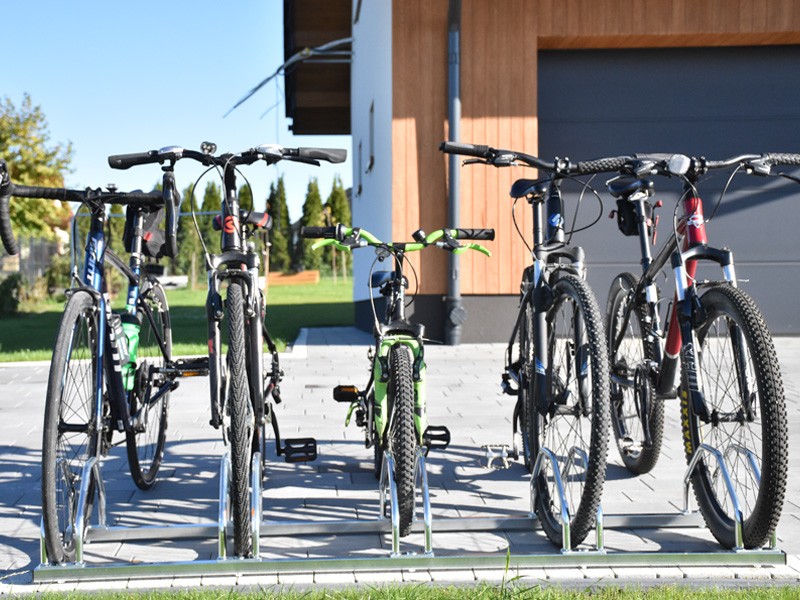

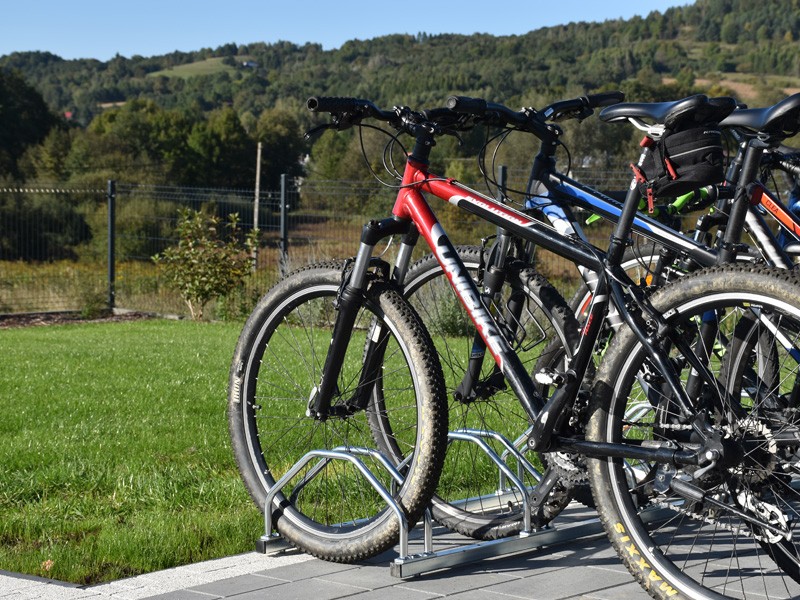

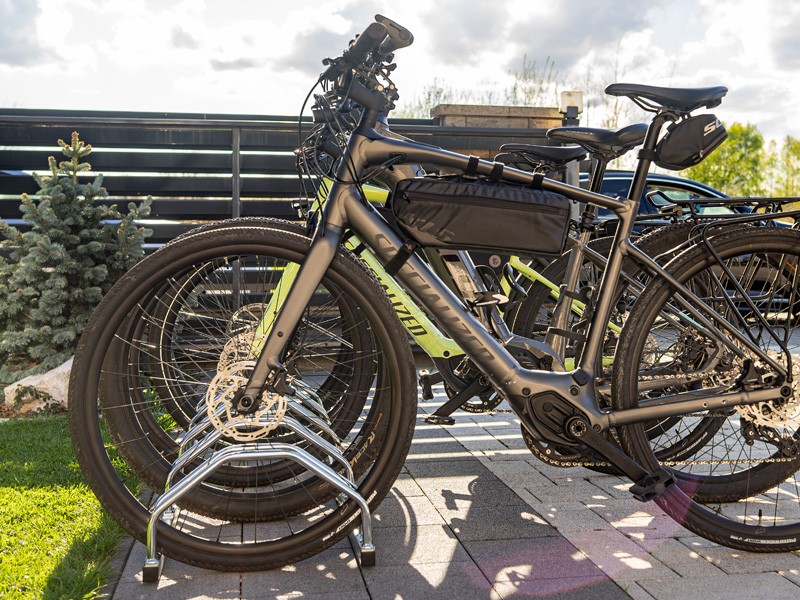

The Kornel bike rack with 6 spaces is a low rack bolted to the ground, holding six bicycles across a width of 222 cm. It is made from galvanised steel, galvanised and painted steel or stainless steel. The angle of the spaces can be adjusted from 90 to 45 degrees.
Product description
- 6 spaces across a width of 222 cm
- Space angle adjustable from 90 to 45 degrees
- Galvanised, painted or stainless steel
- 8 wall plugs and mounting screws included
- Weight 15 kg
Stojak rowerowy Kornel 6 stanowisk to niska konstrukcja na sześć rowerów. Ma 26 cm wysokości i 45,5 cm głębokości. Stanowiska rozstawione są co 42 cm, a każde ma 6,5 cm szerokości. Kąt stanowisk ustawiacie w zakresie od 90 do 45 stopni, więc rowery mogą stać prostopadle albo skośnie, zależnie od dostępnego miejsca.
Rama jest z profilu 30x30x1,5 mm, a uchwyty z rurki o przekroju 18 mm i ściance 2 mm. Do wyboru są trzy wykonania: stal ocynkowana, stal ocynkowana i malowana oraz stal nierdzewna. Wariant ustalimy z Wami indywidualnie.
Stojak przykręca się do podłoża. W zestawie jest 8 kołków rozporowych Ø 10x100 mm ze śrubami Ø 7x107 mm pod klucz SW13 lub T40.
- Liczba stanowisk: 6

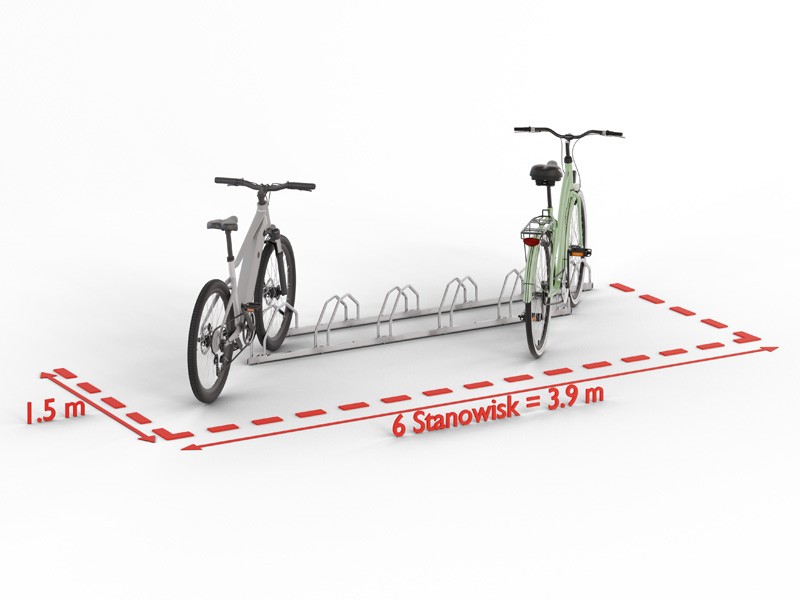

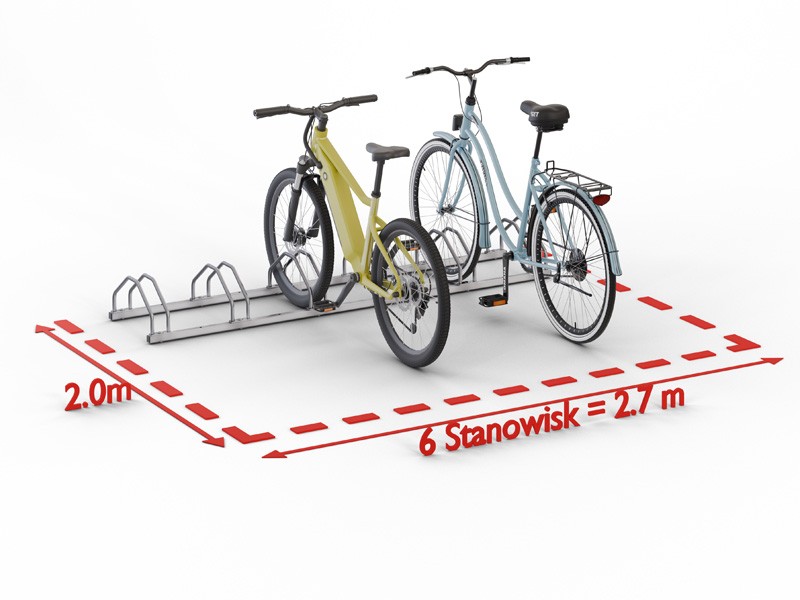

- Wymiary: 222 x 45,5 x 26 cm (szer. x gł. x wys.)
- Odległość między stanowiskami: 42 cm
- Regulacja stanowisk: od 90 do 45 stopni
- Waga: 15 kg
Specification
| number of bike spaces | 6 |
| rack/hanger width | 222cm |
| rack height | 26cm |
| rack depth | 45.5cm |
| bike space width | 6.5cm |
| spacing between bike spaces | 42cm |
| tube diameter | 18mm |
| tube wall thickness | 2mm |
| rack profile | 30x30x1.5mm |
| material | galvanised steel, galvanised and painted steel, stainless steel |
| bike space adjustment | range from 90 to 45 degrees |
| fixing method | to the ground |
| installation method | bolt-down |
| weight | 15kg |
| installation | 8 expansion anchors Ø 10x100mm for Ø 7x107mm screws (included), for SW13 spanner or T40 bit |
| bike space arrangement | angled or perpendicular |
