Kamil Bike Hanger 4 Spaces on Support Rail
Product code: UF-MAST475

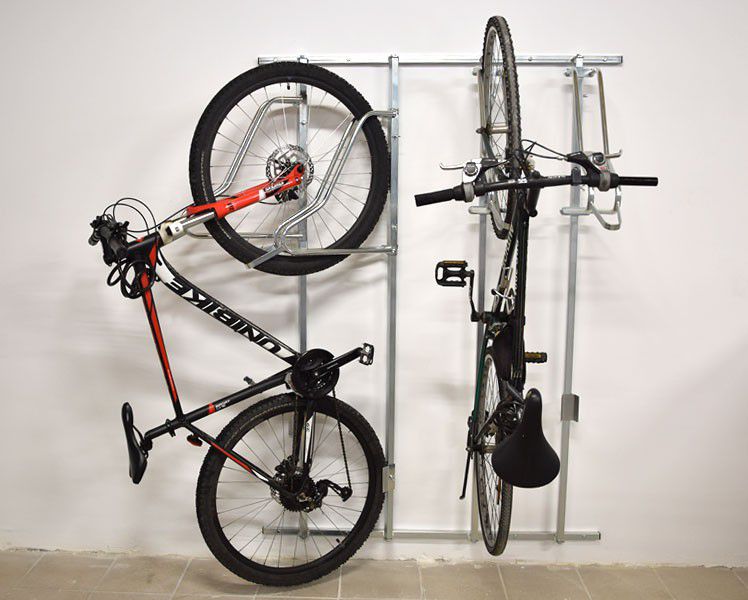

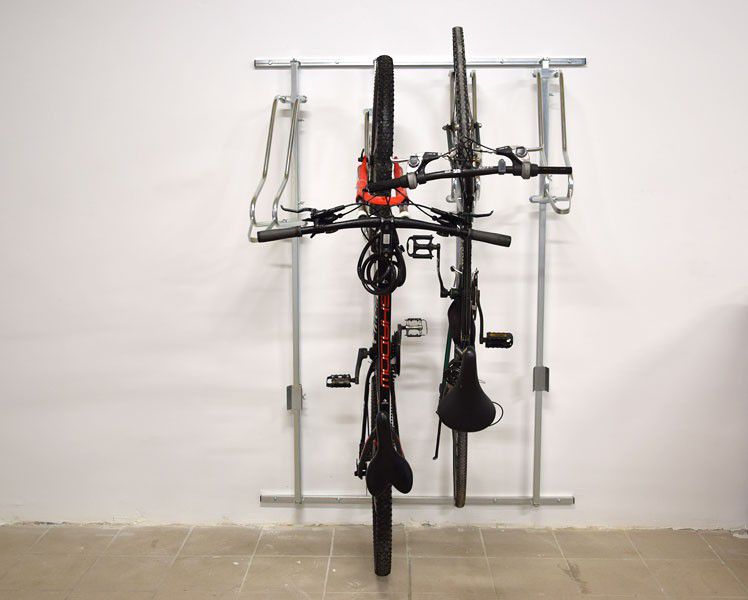

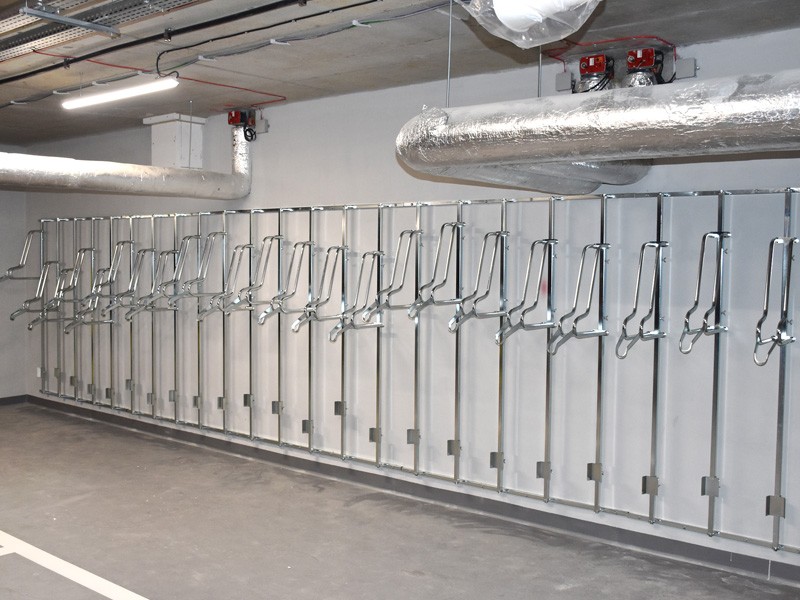

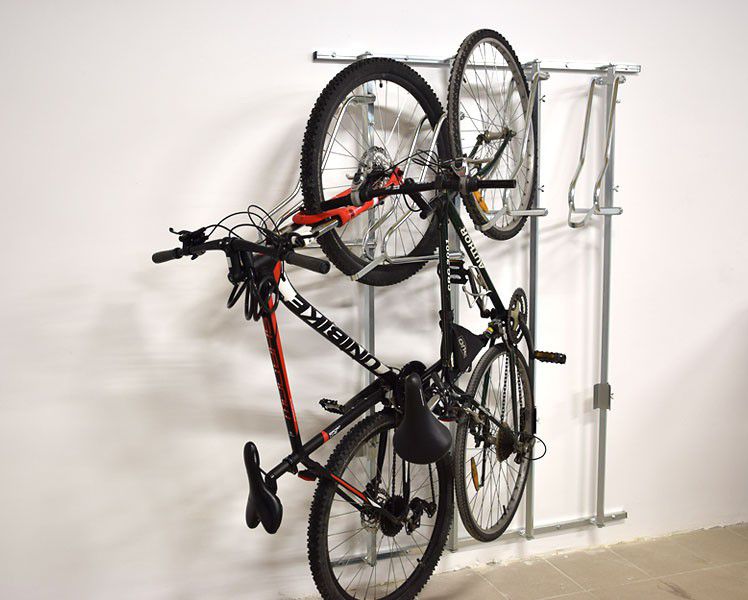

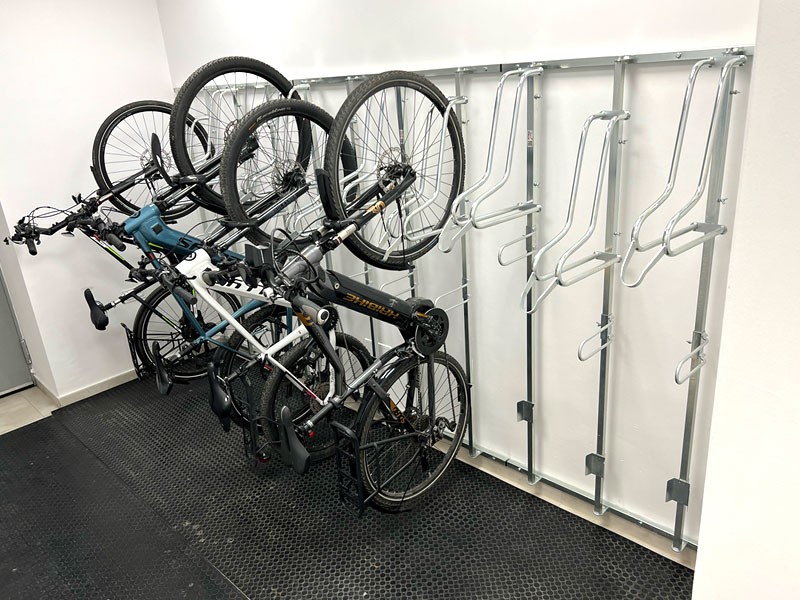

The Kamil Bike Hanger 4 Spaces on Support Rail is a wall-mounted galvanised steel system on which bicycles are hung vertically by the wheel. It takes up much less space than floor-standing racks. It is well suited to bike shelters, underground car parks, schools, office buildings and multi-occupancy residential buildings.
Product description
- 4 bays spaced 33 cm apart
- Load capacity up to 30 kg per bay
- Tyres up to 8 cm in variant II
- Brake discs up to Ø 203 mm
- Galvanised steel, wall-mounted
Wieszak rowerowy Kamil 4 stanowiska na profilu nośnym pozwala zawiesić cztery rowery pionowo na ścianie, w odstępach co 33 cm. Przydaje się tam, gdzie brakuje miejsca na stojaki naziemne, np. w wiatach rowerowych, garażach podziemnych i przy wejściach do szkół, biurowców i bloków. Rower wisi stabilnie, a felga i opona nie ulegają uszkodzeniu.

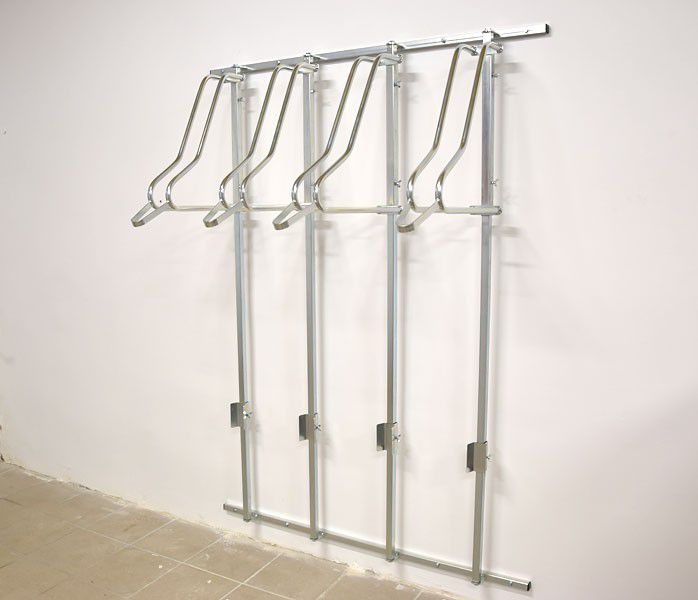

Wieszak zrobiono ze stali ocynkowanej. Stanowiska wykonano z rurki Ø 18 mm o ściance 2 mm i osadzono na profilu mocującym 30 × 30 × 1,5 mm. Prowadnice mają 180 cm długości i profil 25 × 25 × 1,5 mm. Każde stanowisko przenosi do 30 kg. Wieszak jest dostępny w dwóch wariantach szerokości opony: I do 29 × 2,2 cala (5,5 cm) i II do 29 × 3,15 cala (8 cm). Oba warianty pasują do rowerów z tarczami hamulcowymi do Ø 203 mm.

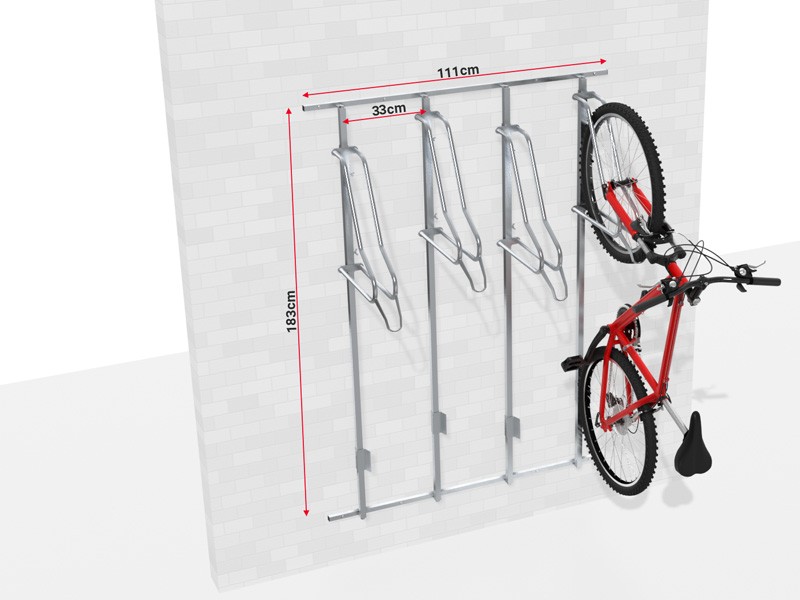

- Wymiary: 111 cm szerokości, 69 cm głębokości, 185 cm wysokości
- Waga: 26 kg
- Montaż do ściany: 4 kołki rozporowe Ø 10 × 100 mm, śruby Ø 7 × 107 mm, klucz SW13 lub T40 (w zestawie)
Specification
| number of bike spaces | 4 |
| hanger width | 111cm, 30x30x1.5mm mounting section |
| hanger depth | 69cm |

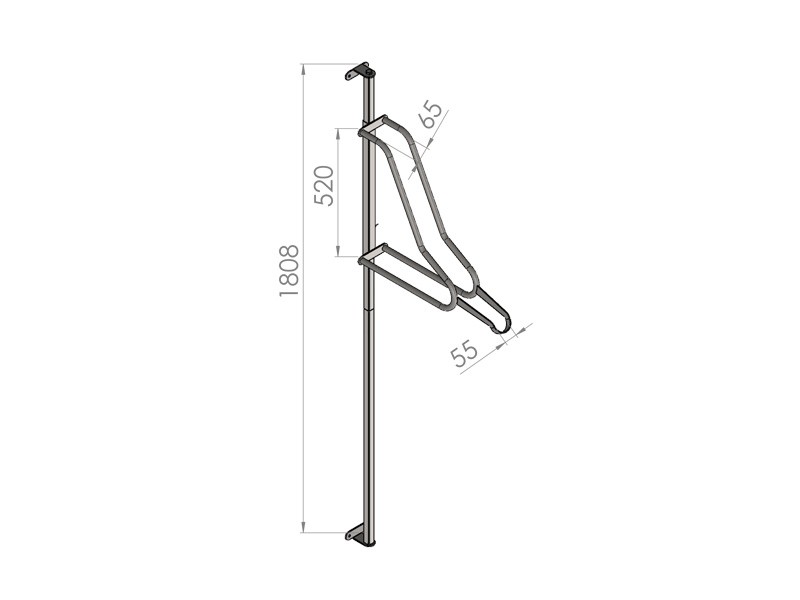

| overall height of the bike hanger | 185cm |
| spacing between bike spaces | 33cm |
| tube diameter | Ø 18mm |
| tube wall thickness | 2mm |
| material | galvanised steel |
| rail length | 180cm, 25x25x1.5mm profile |

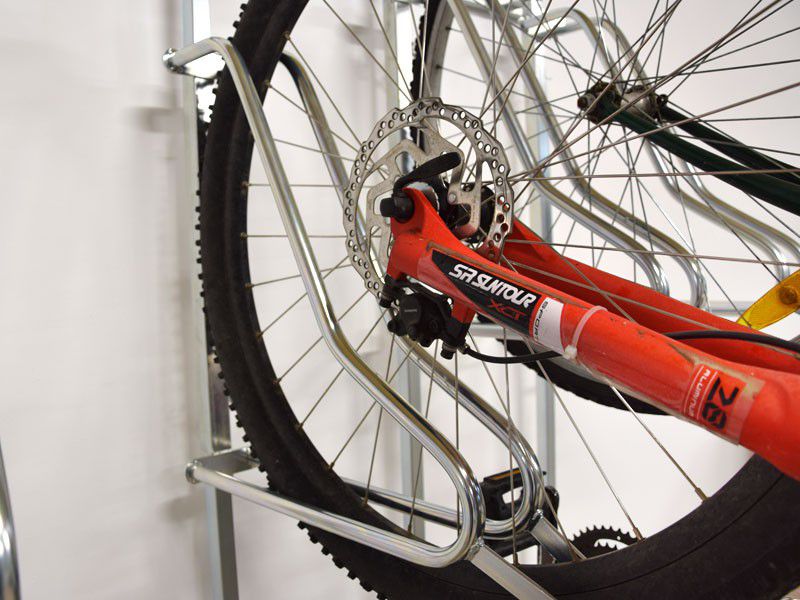

| bay width (max. tyre width) | variant I: up to 29x2.2 in (5.5cm); variant II: up to 29x3.15 in (8cm); compatible with brake discs up to Ø 203mm |
| fixing method | to wall |
| installation method | bolt-down |
| weight | 26kg |
| installation | 4 expansion anchors Ø 10x100mm for Ø 7x107mm screws (included), for SW13 spanner or T40 bit |
| permissible load per hanger | 30kg |
| intended use | universal |
