Kamil Bike Hanger 3 Spaces on Support Rail
Product code: UF-MAST476

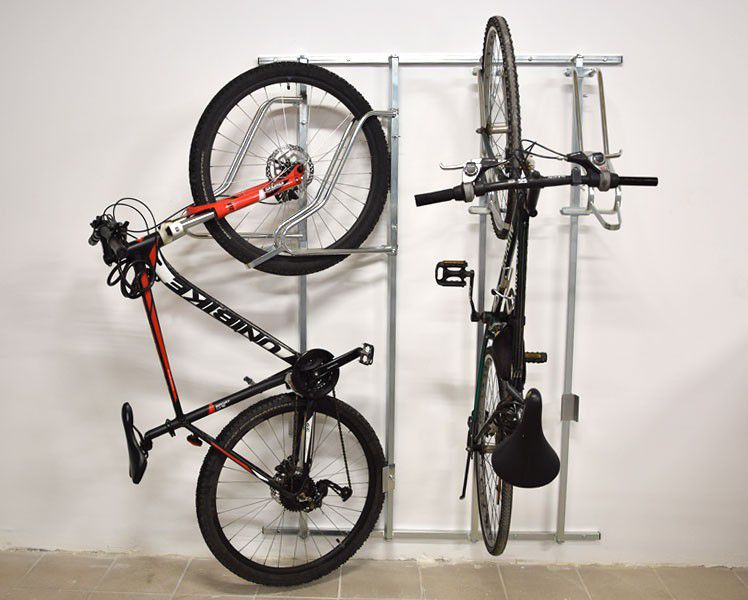

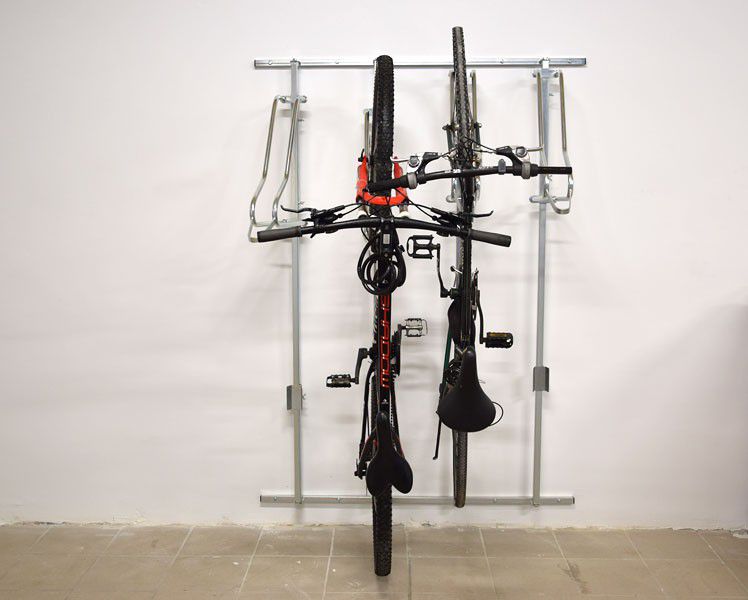

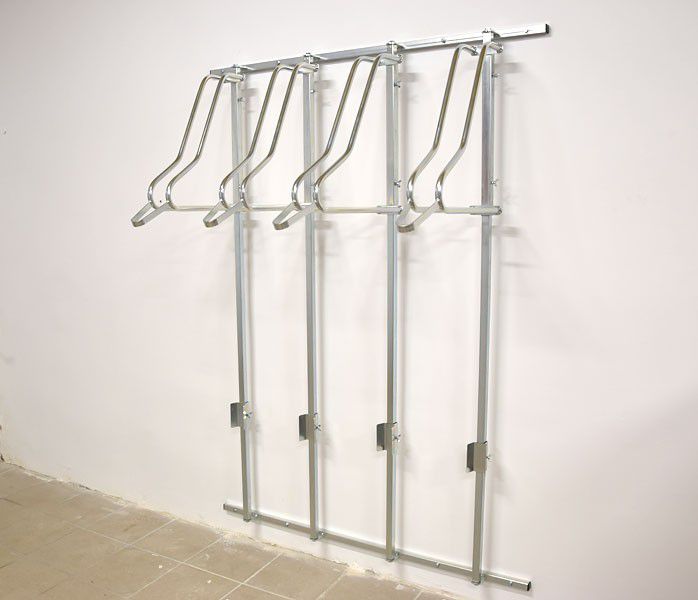

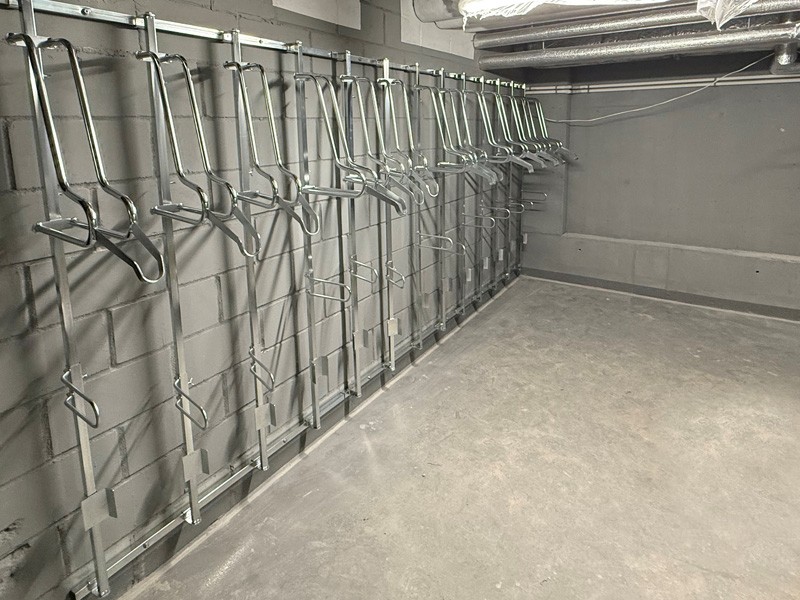

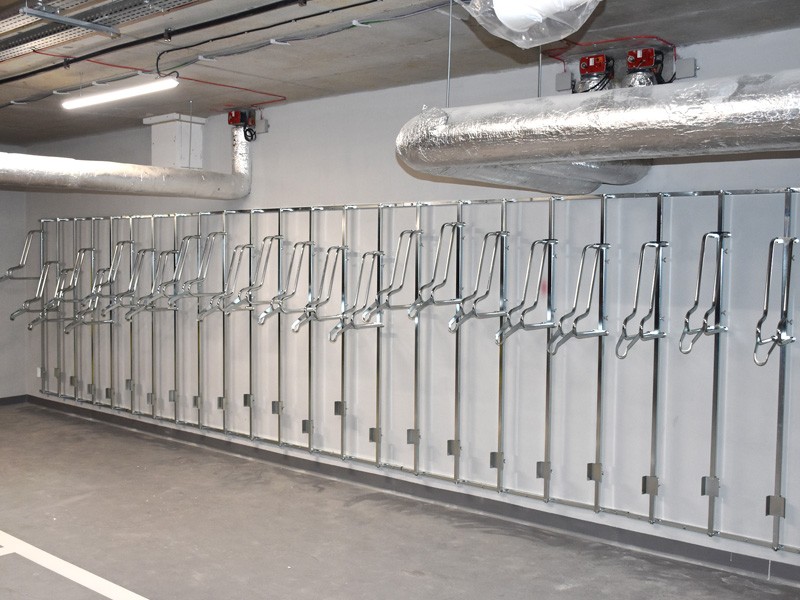

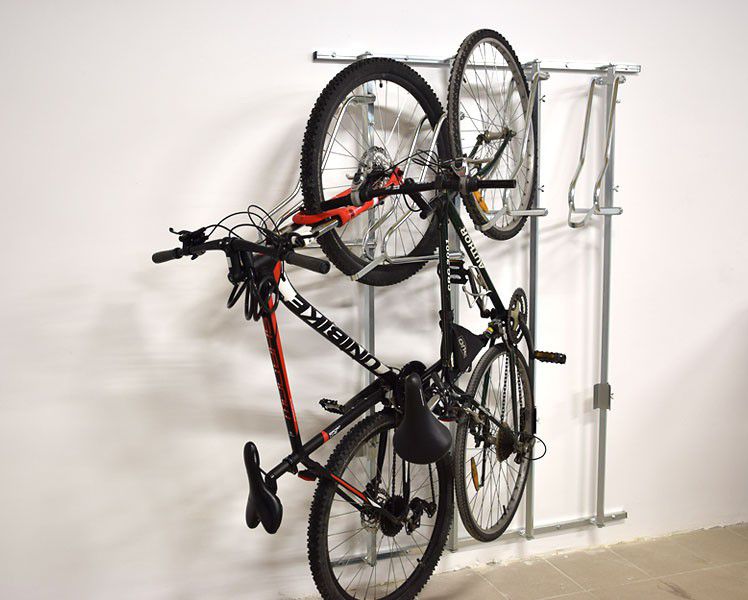

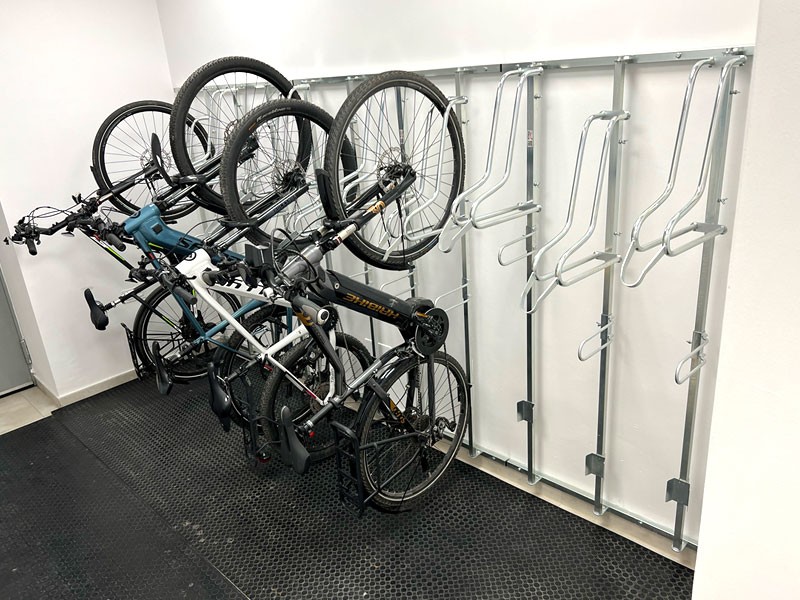

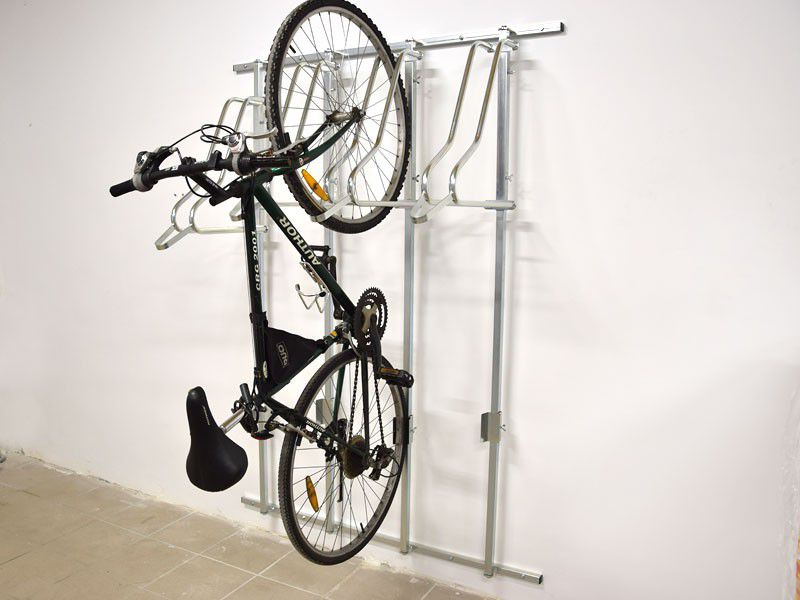

The Kamil Bike Hanger 3 Spaces on Support Rail is a wall-mounted galvanised steel system for hanging three bicycles vertically by the wheel. It saves space in bike shelters, underground car parks and at entrances to office buildings, schools and multi-occupancy residential buildings.
Product description
- 3 bays spaced 33 cm apart
- Load capacity up to 30 kg per bay
- Tyres up to 8 cm wide in variant II
- Galvanised steel, wall-mounted
- Adjustable configuration
Wieszak rowerowy Kamil 3 stanowiska na profilu nośnym pozwala zawiesić rowery pionowo na ścianie. Zajmuje znacznie mniej miejsca niż stojaki ustawione na ziemi. Przyda się w wiatach rowerowych, garażach podziemnych, przy biurowcach, szkołach i budynkach wielorodzinnych.
Trzy stanowiska rozmieszczono co 33 cm. Całość wykonano ze stali ocynkowanej: rurka ma przekrój Ø 18 mm i grubość ścianki 2 mm, profil mocujący 30 × 30 × 1,5 mm, a prowadnica o długości 180 cm to profil 25 × 25 × 1,5 mm. Każde stanowisko przenosi do 30 kg.
Wieszak jest uniwersalny. W wariancie I mieści opony do 29 × 2,2 cala (5,5 cm), a w wariancie II do 29 × 3,15 cala (8 cm). Współpracuje z tarczami hamulcowymi do Ø 203 mm. Ustawienia można dopasować do Waszych potrzeb, szczegóły ustalimy indywidualnie.
- Wymiary: szer. 78 cm, gł. 69 cm, wys. 185 cm
- Waga: 19 kg
- Mocowanie: do ściany, przykręcane
- Montaż: 4 kołki rozporowe Ø 10 × 100 mm, śruby Ø 7 × 107 mm (w zestawie), klucz SW13 lub T40
Specification
| number of bike spaces | 3 |
| hanger width | 78cm, 30x30x1.5mm mounting section |
| hanger depth | 69cm |
| overall height of the bike hanger | 185cm |
| spacing between bike spaces | 33cm |
| tube diameter | Ø 18mm |
| tube wall thickness | 2mm |
| material | galvanised steel |
| rail length | 180cm, 25x25x1.5mm profile |

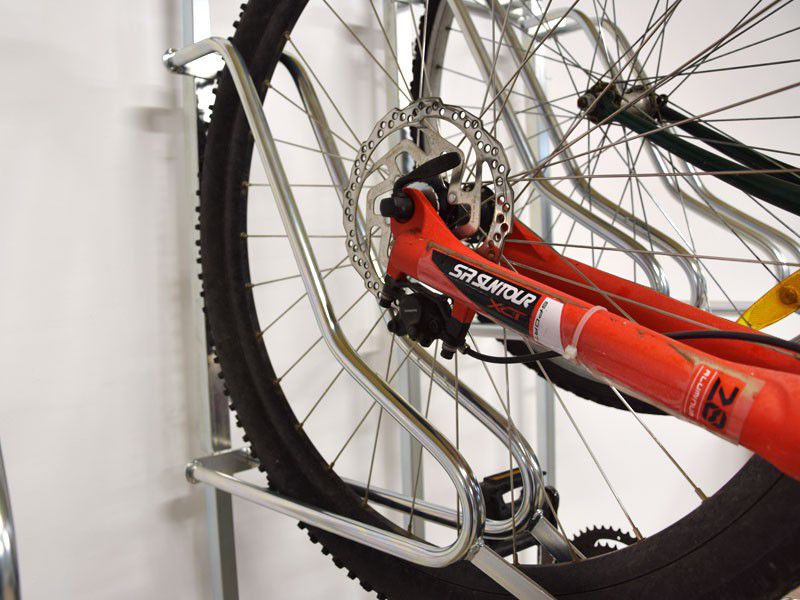

| bay width (max. tyre width) | variant I: up to 29x2.2 in (5.5cm); variant II: up to 29x3.15 in (8cm); compatible with brake discs up to Ø 203mm |
| fixing method | to wall |
| installation method | bolt-down |
| weight | 19kg |
| installation | 4 expansion anchors Ø 10x100mm for Ø 7x107mm screws (included), for SW13 spanner or T40 bit |
| permissible load per hanger | 30kg |
| intended use | universal |
| customisable settings | yes |
