Kasper bike rack 11 spaces with rails
Product code: UF-MAST525

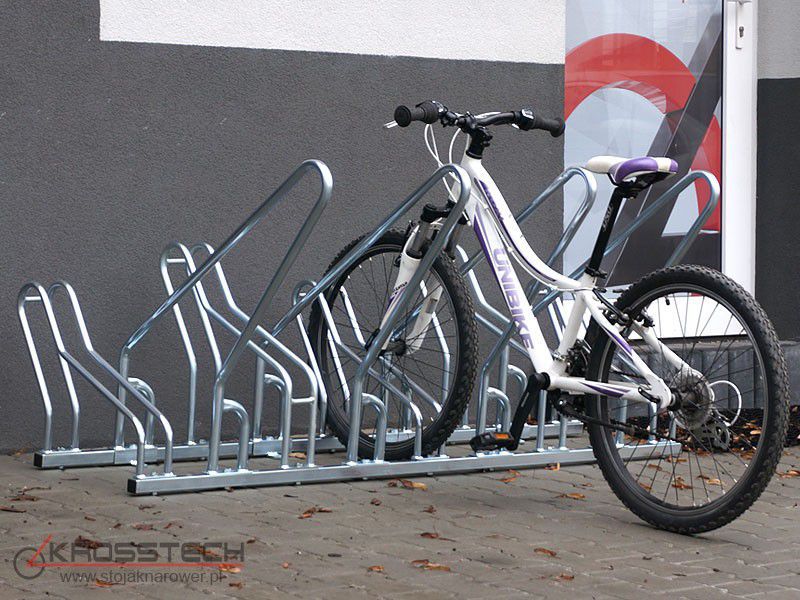

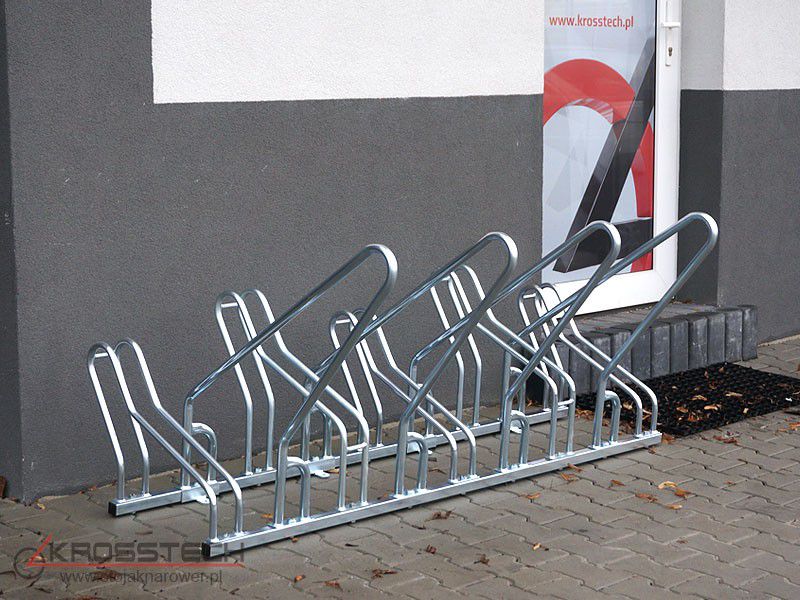

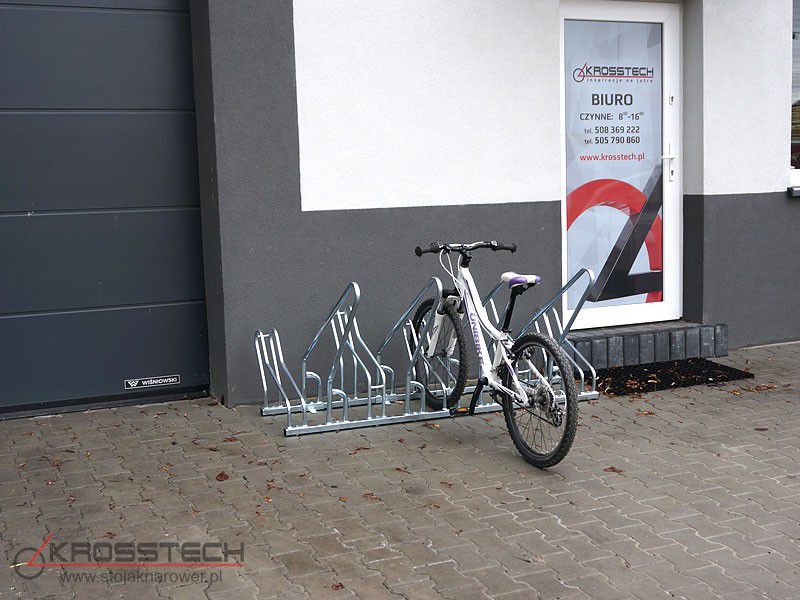

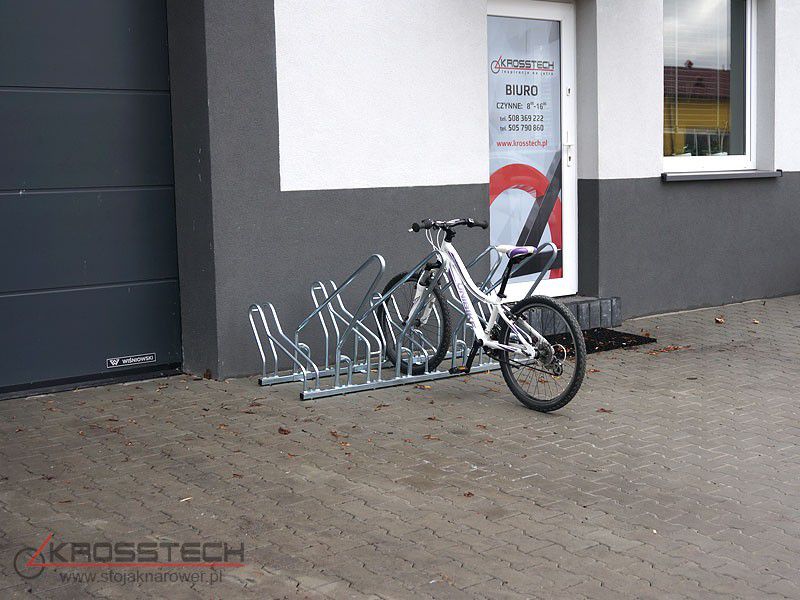

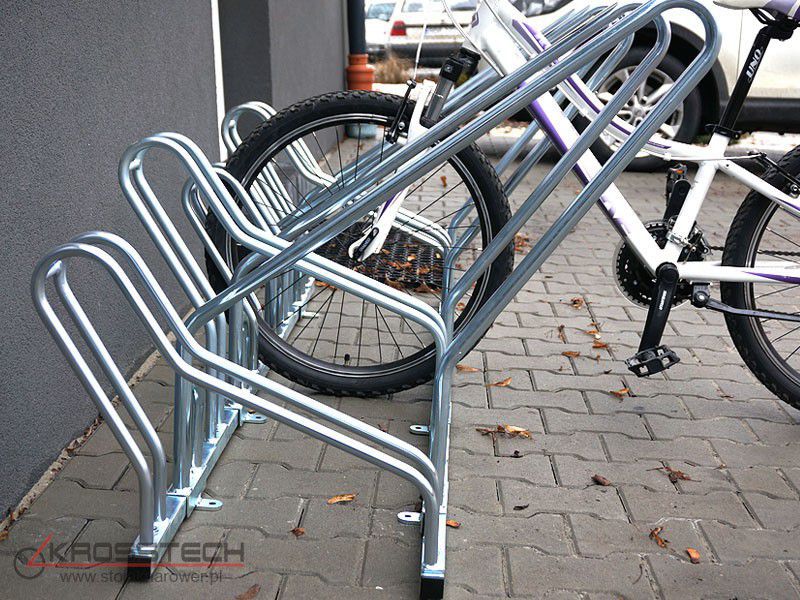

The Kasper bike rack 11 spaces with rails is a 432 cm wide steel rack for 11 bicycles parked perpendicularly. Rails made from Ø 25 mm tube make it easier to lean the bicycle. It is bolted to the ground, with anchors and bolts included. Well suited to large bicycle parking areas.
Product description
- 11 bays, width 432 cm
- Rails made of Ø 25 mm tubing
- Bay spacing 42 cm
- Weight 70 kg, 30x30x1.5 mm profile
- 20 expansion anchors included
Stojak rowerowy Kasper 11 stanowisk z barierkami mieści 11 rowerów ustawianych prostopadle. Ma szerokość 432 cm, głębokość 85 cm i wysokość od 45 do 80 cm. Odstęp między stanowiskami wynosi 42 cm, a szerokość pojedynczego stanowiska to 6,5 cm.
Ramę wykonano z profilu 30x30x1,5 mm, a rurki na koła mają przekrój 18 mm i ściankę 2 mm. Barierki z rurki Ø 25 mm usztywniają konstrukcję i ułatwiają oparcie roweru. Do wyboru jest stal ocynkowana, stal ocynkowana i malowana albo stal nierdzewna. Wykończenie ustalimy z Wami indywidualnie.
Stojak waży 70 kg i przykręca się go do podłoża. W zestawie jest 20 kołków rozporowych Ø 10x80 mm ze śrubami Ø 7x80 mm, które dokręca się kluczem SW13 lub bitem T40. Sprawdzi się przy szkołach, uczelniach, dworcach i zakładach pracy.
- Stanowiska: 11, nieregulowane
- Wymiary: 432 x 85 cm, wysokość 45–80 cm
- Profil: 30x30x1,5 mm
- Waga: 70 kg
Specification
| number of bike spaces | 11 |
| rack/hanger width | 432cm |
| height | 45-80cm |
| depth | 85cm |
| bike space width | 6.5cm |
| spacing between bike spaces | 42cm |
| tube diameter | 18mm |
| tube wall thickness | 2mm |
| rack profile | 30x30x1.5mm |
| material | galvanised steel, galvanised and painted steel, stainless steel |
| bike space adjustment | non-adjustable |
| barrier tube cross-section | Ø 25mm |
| fixing method | to the ground |
| installation method | bolt-down |
| weight | 70kg |
| installation | 20 expansion anchors Ø 10x80mm for Ø 7x80mm screws (included), for SW13 spanner or T40 bit |
| bike space arrangement | perpendicular |
