Kamil Bike Hanger, 2 Spaces
Product code: UF-MAST303

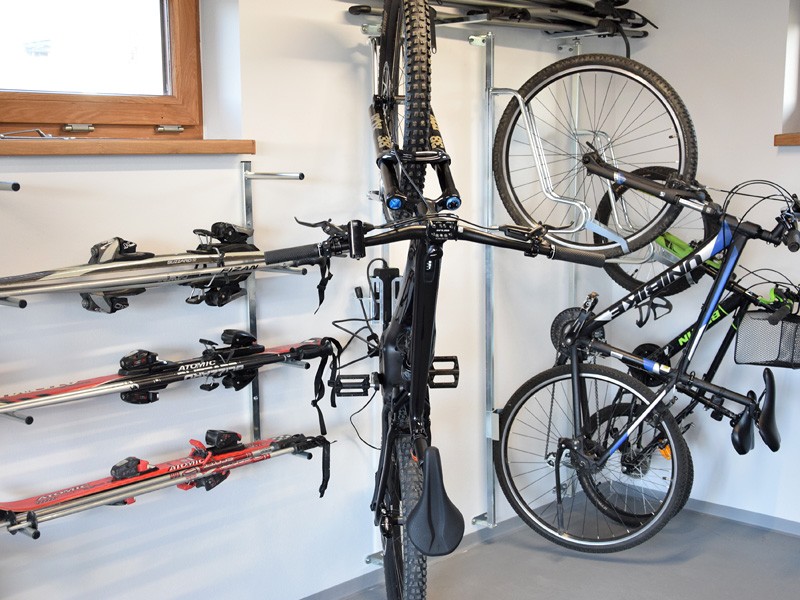

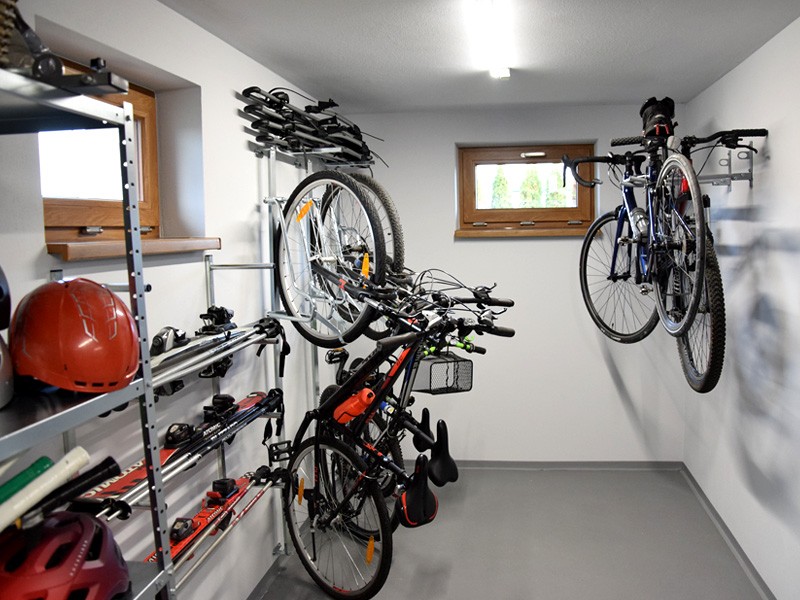

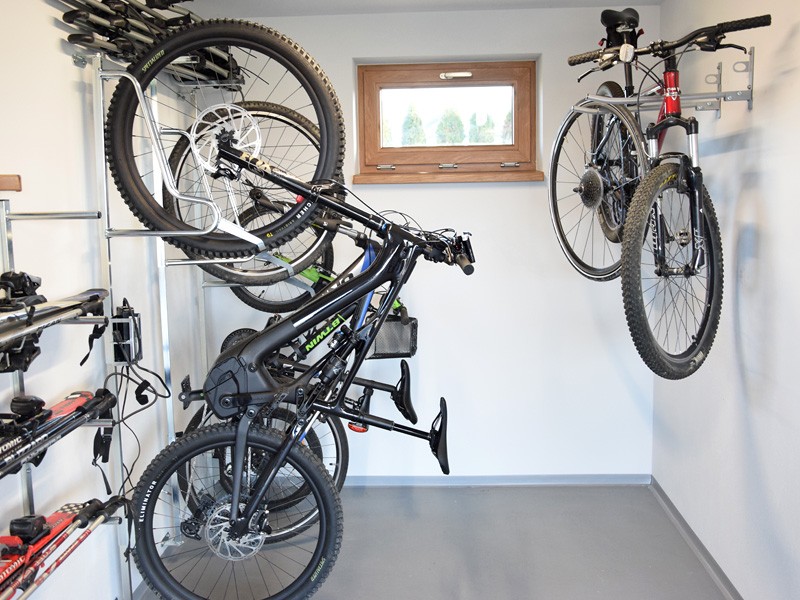

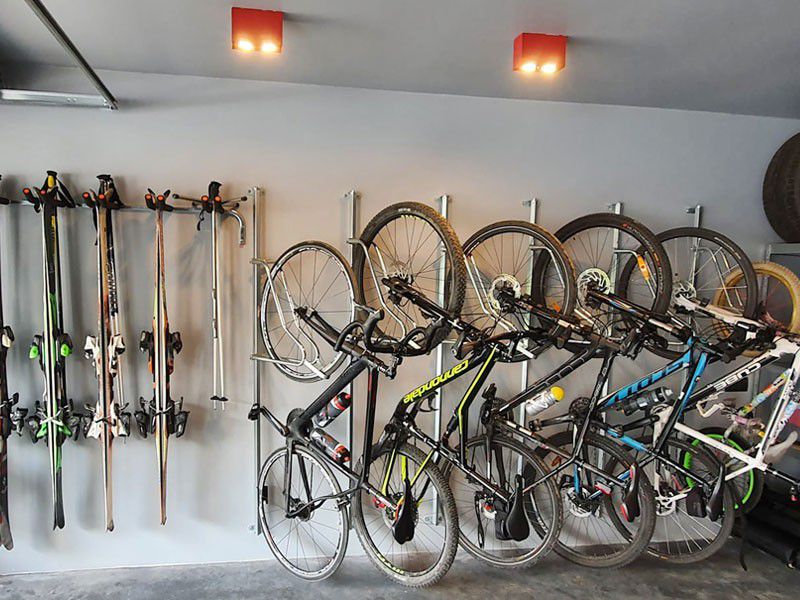

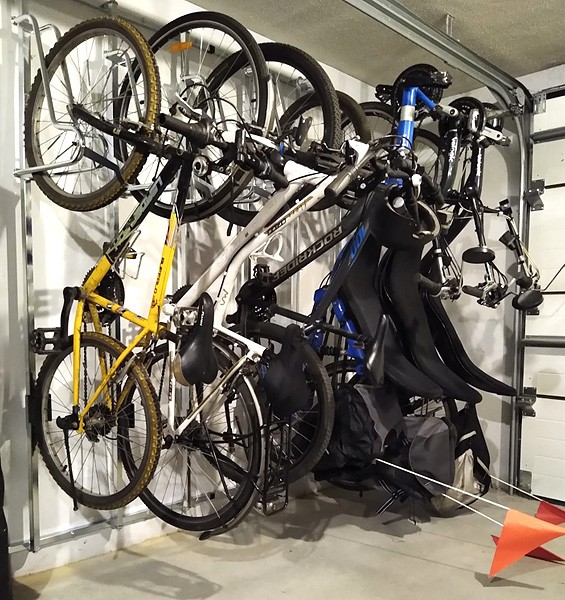

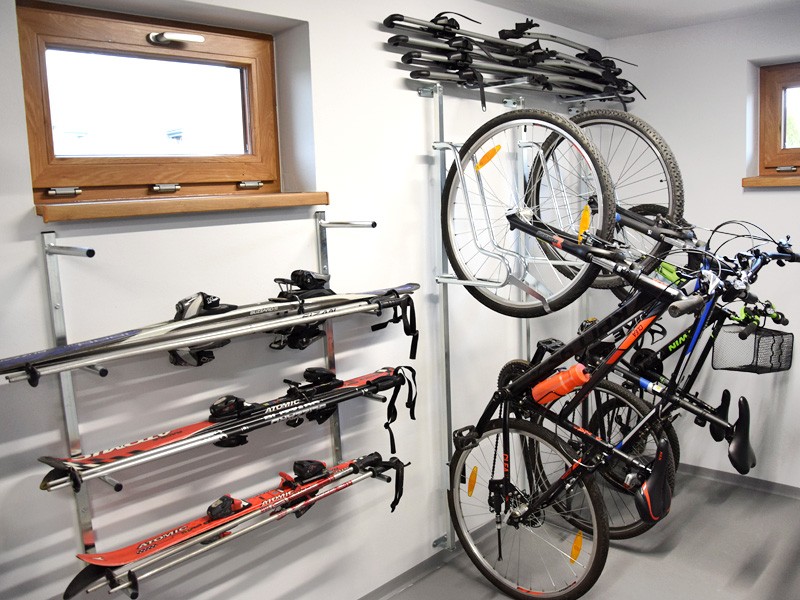

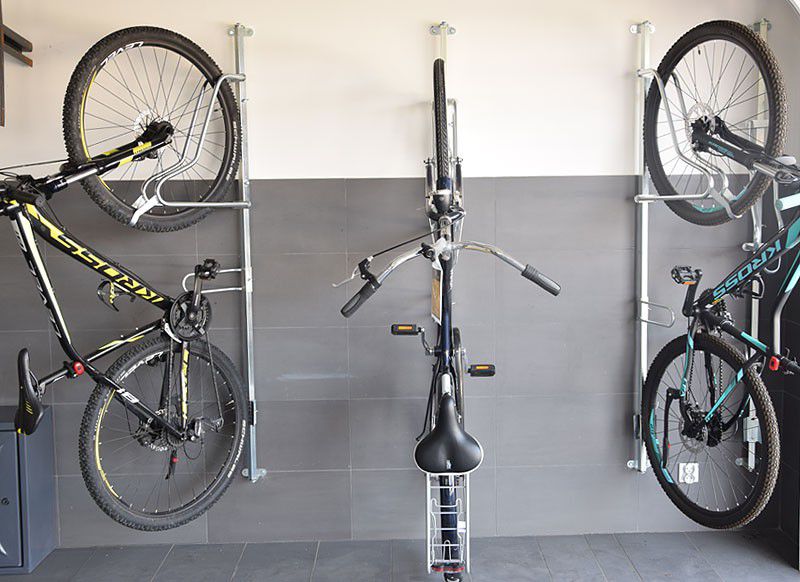

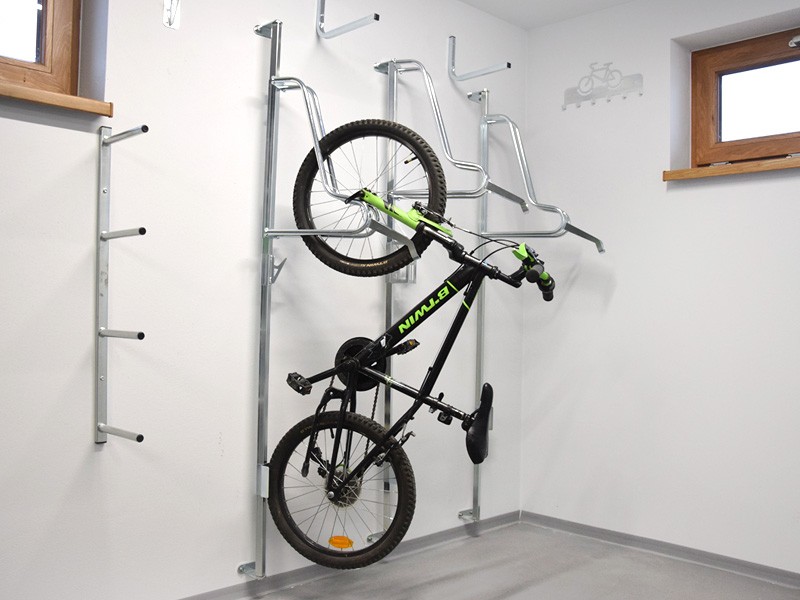

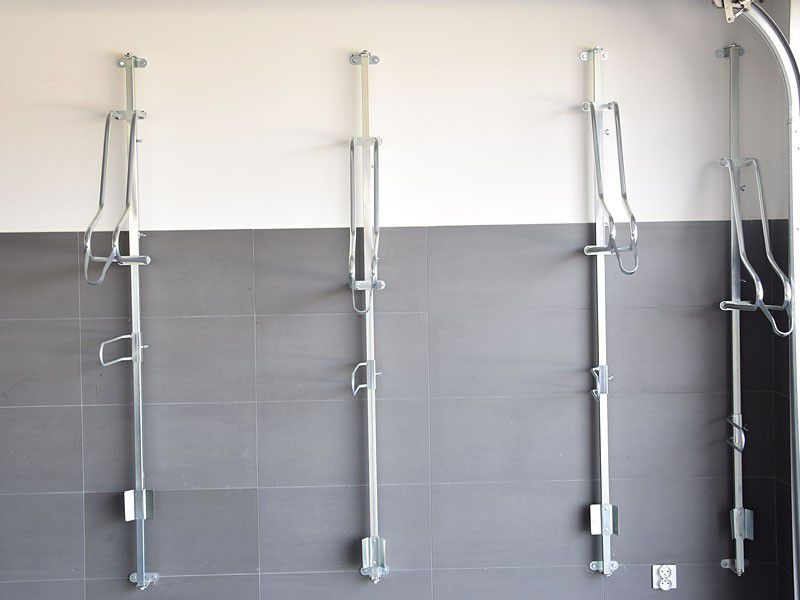

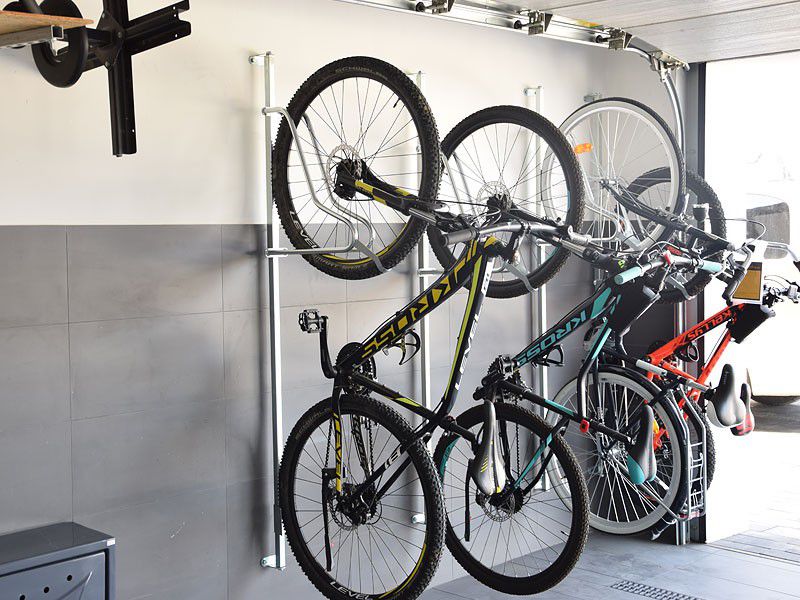

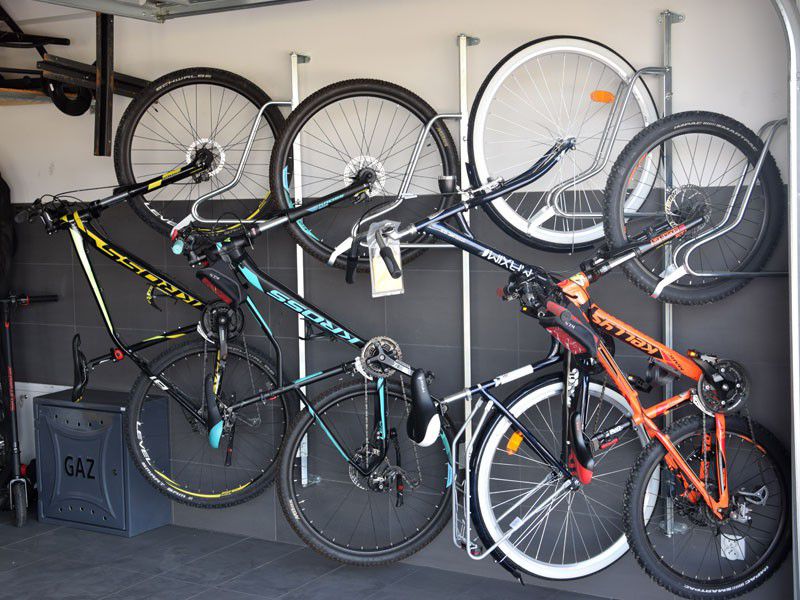

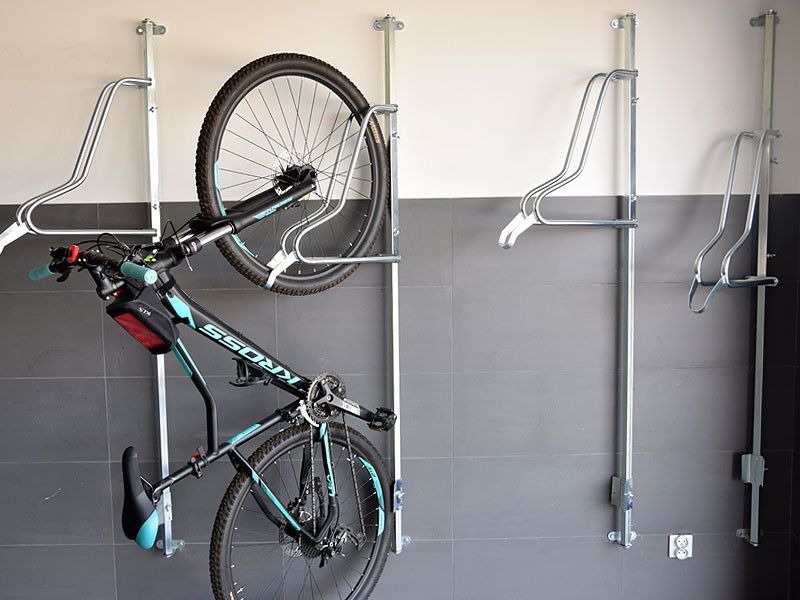

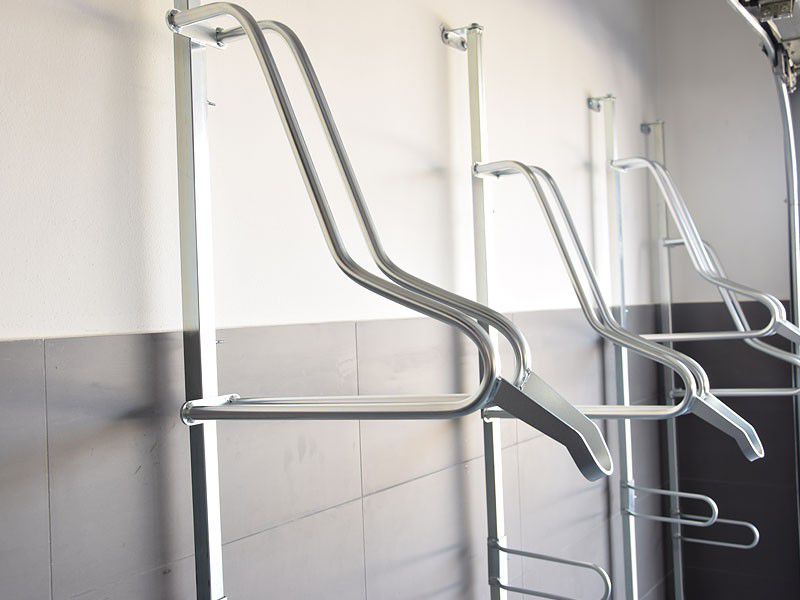

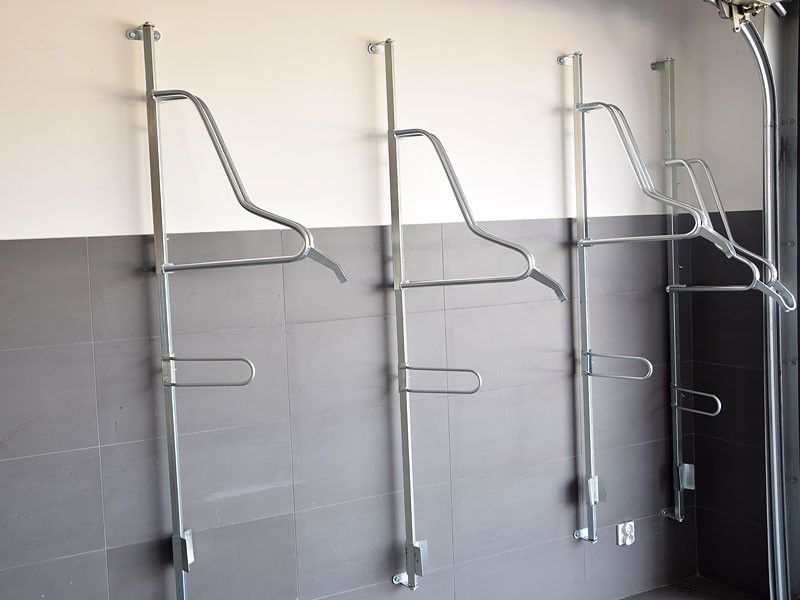

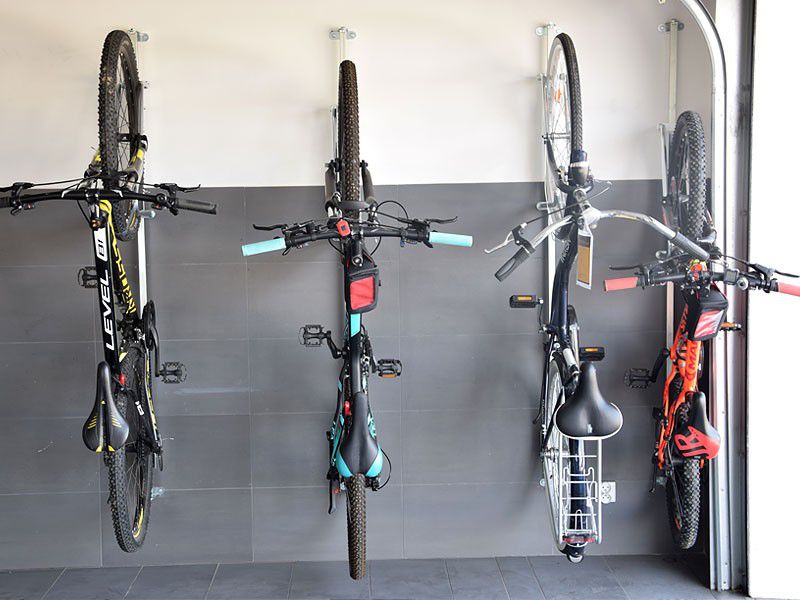

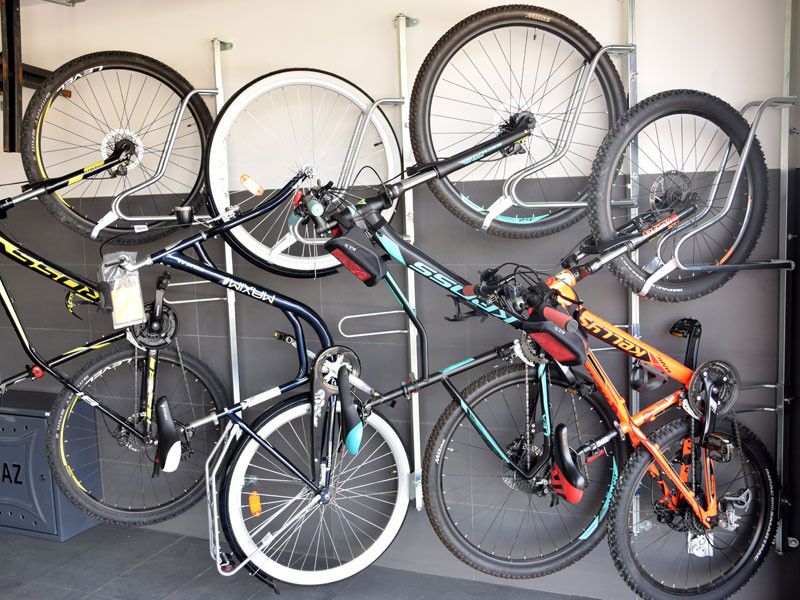

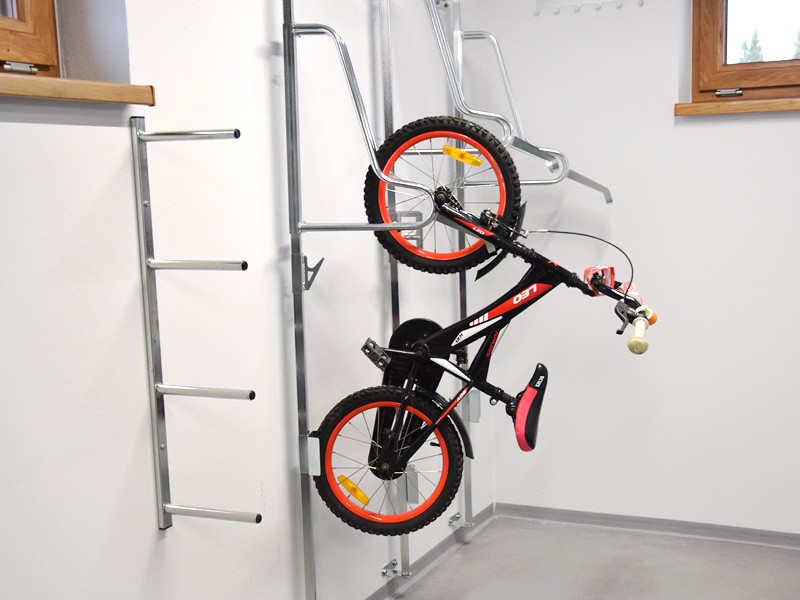

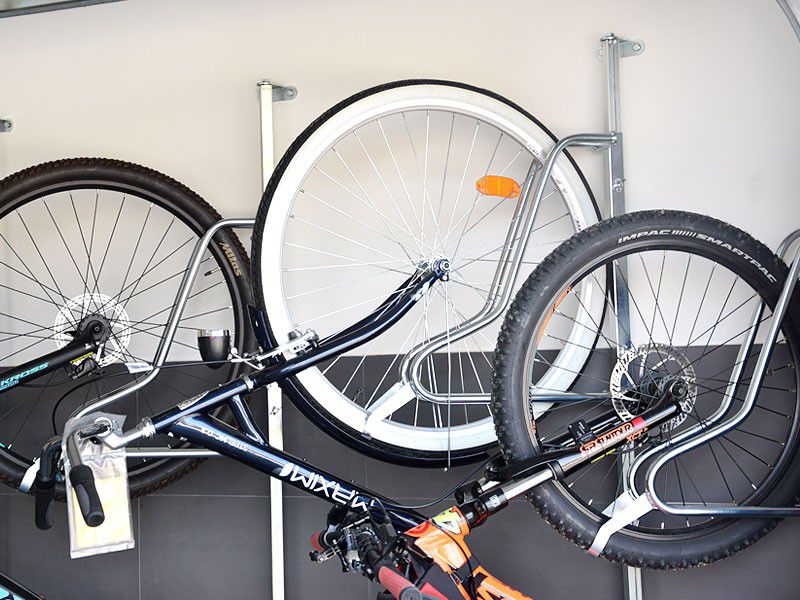

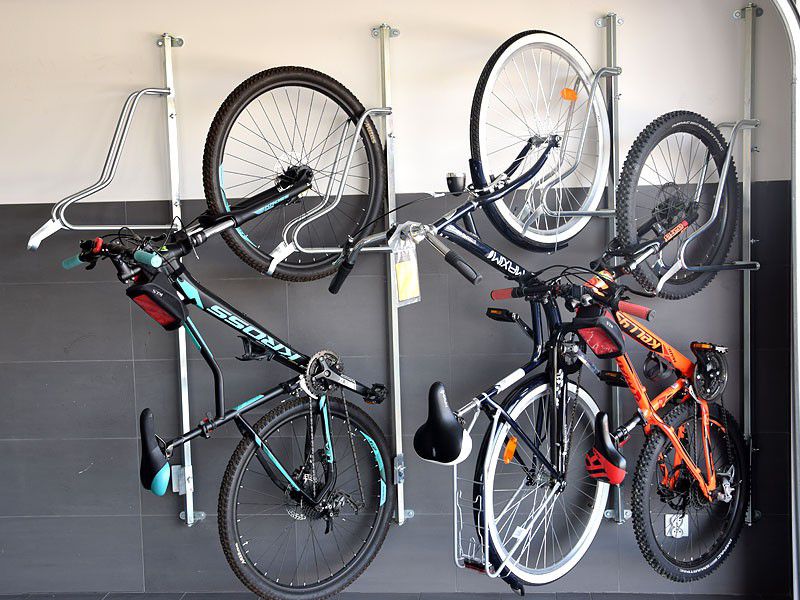

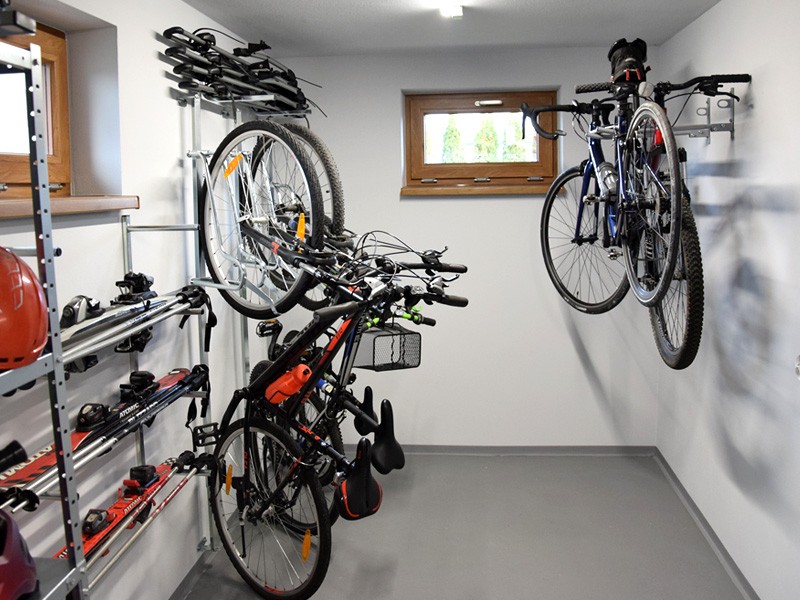

The Kamil Bike Hanger, 2 Spaces, is a wall-mounted hanger made of galvanised steel with a 180 cm rail on which the two spaces can be positioned as required. It is available in two tyre-width variants. It is ideal for bike stores in residential and office buildings.
Product description
- 180 cm rail with adjustable spacing
- Two tyre width variants

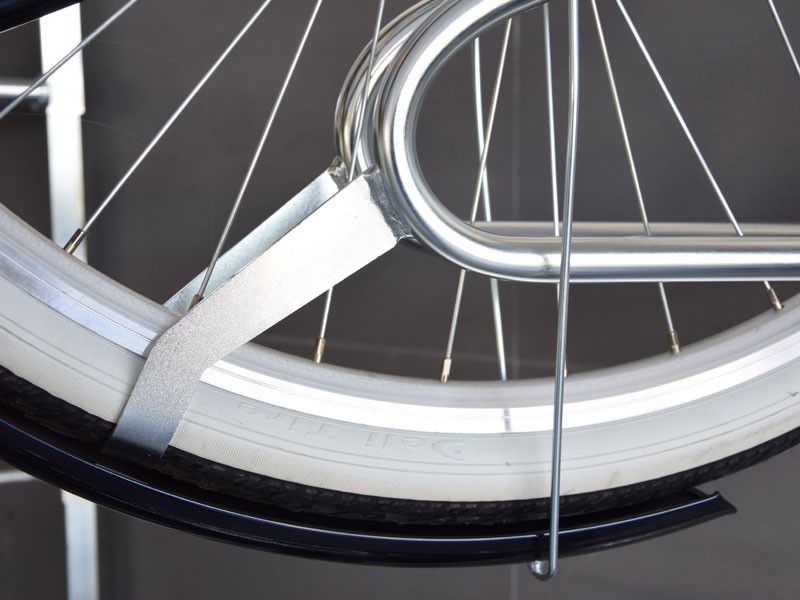

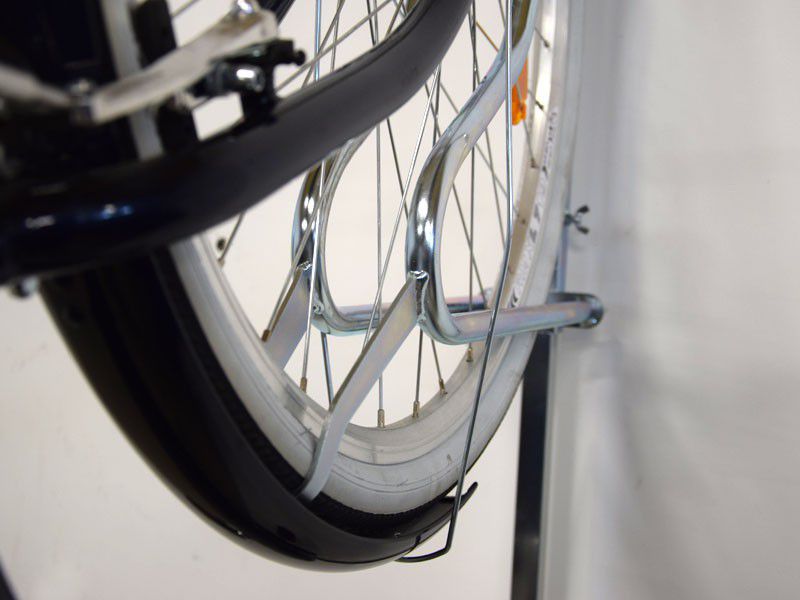

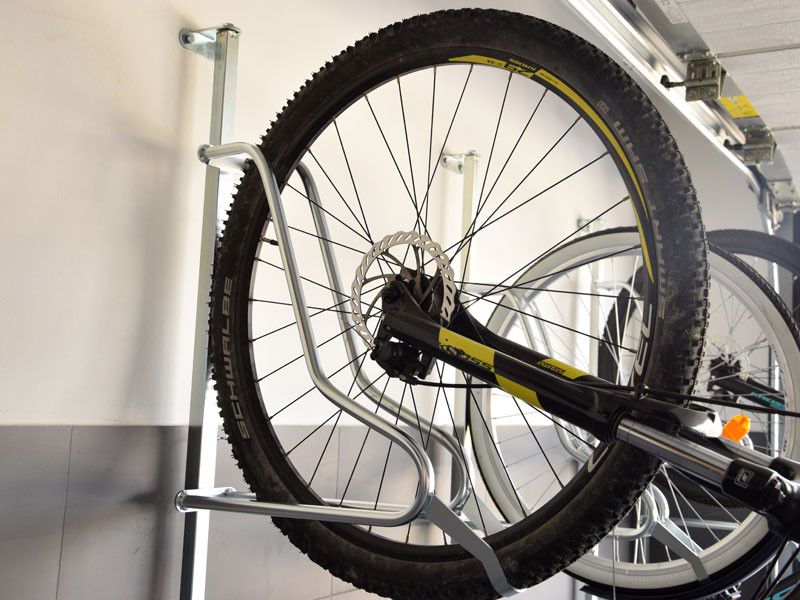

- Brake discs up to Ø 203 mm
- Up to 30 kg per bay
- 4 fixing anchors included
Wieszak rowerowy Kamil 2 stanowiska ma prowadnicę o długości 180 cm z profilu 25x25x1,5 mm. Dwa stanowiska można rozstawić wzdłuż niej dowolnie, np. tak, żeby kierownice sąsiednich rowerów się nie stykały. Ułatwia to urządzenie rowerowni o nietypowym kształcie.
Wieszak wykonano ze stali ocynkowanej z rurki Ø 18 mm o grubości ścianki 2 mm. Ma 50 cm głębokości. Jest dostępny w dwóch wariantach: na opony do 29x2,2 cala (5,5 cm) albo do 29x3,15 cala (8 cm). Oba pasują do tarcz hamulcowych do Ø 203 mm. Jedno stanowisko można obciążyć do 30 kg.
Wieszak przykręca się do ściany. W zestawie są 4 kołki rozporowe Ø 8x80 mm ze śrubami Ø 6x80 mm pod klucz SW10 albo bit T30. Wariant ustalimy z Wami indywidualnie.
- Liczba stanowisk: 2
- Prowadnica: 180 cm, profil 25x25x1,5 mm
- Głębokość: 50 cm
- Opony: do 29x2,2 cala lub do 29x3,15 cala
- Obciążenie jednego stanowiska: do 30 kg
- Materiał: stal ocynkowana

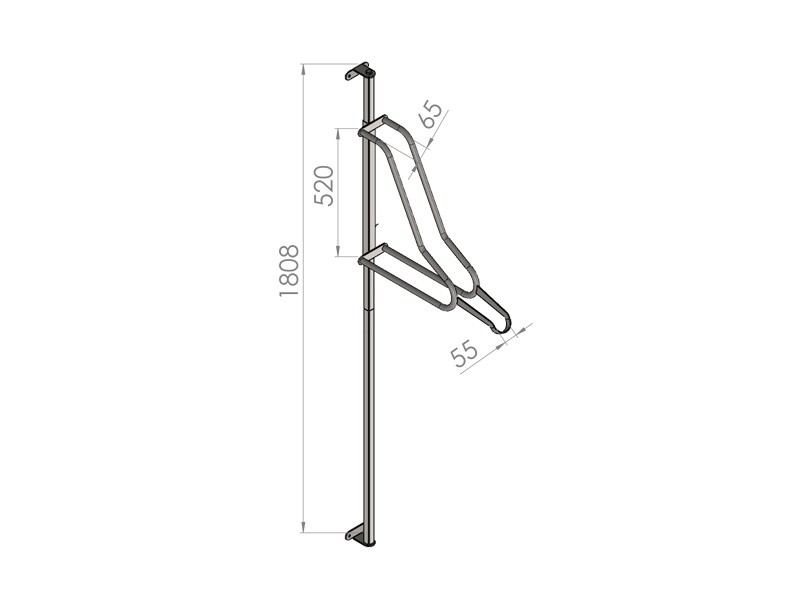

Specification
| number of bike spaces | 2 |
| hanger depth | 50cm |
| tube diameter | Ø 18mm |
| tube wall thickness | 2mm |
| material | galvanised steel |
| rail length | 180cm, 25x25x1.5mm profile |

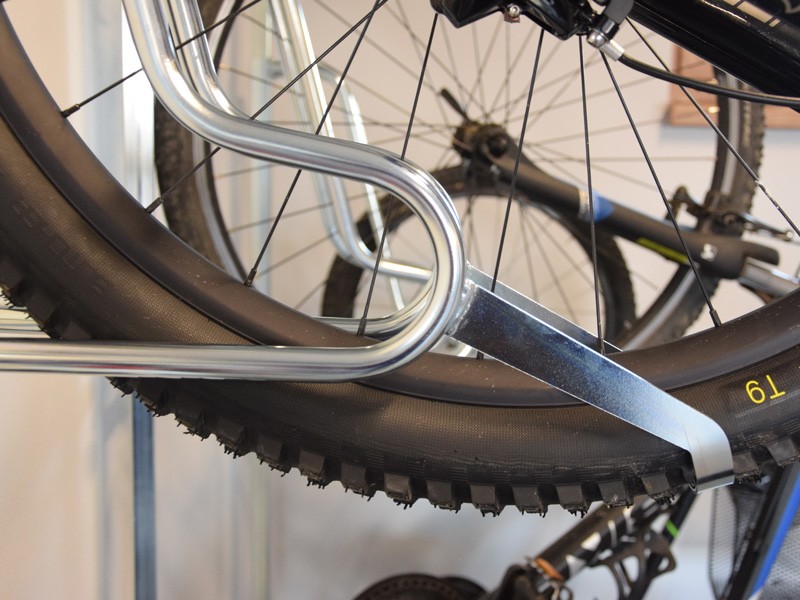

| bay width (max. tyre width) | variant I: up to 29x2.2 in (5.5cm); variant II: up to 29x3.15 in (8cm); compatible with brake discs up to Ø 203mm |
| fixing method | to wall |
| installation method | bolt-down |
| installation | 4 expansion anchors Ø 8x80mm for Ø 6x80mm screws (included), for SW10 spanner or T30 bit |
| permissible load per hanger | 30kg |
| intended use | universal |
| customisable settings | yes |
