Sabina bike rack, 2 spaces, with charging station
Product code: UF-MAST503

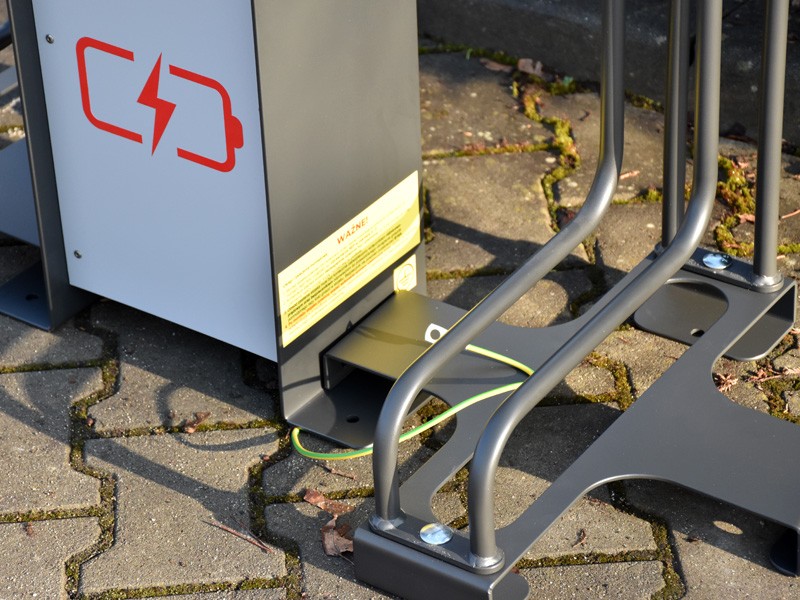

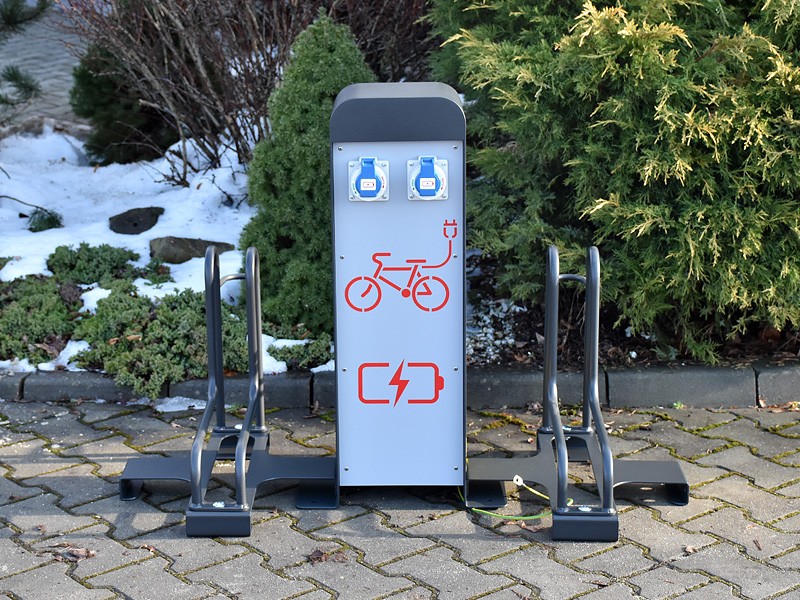

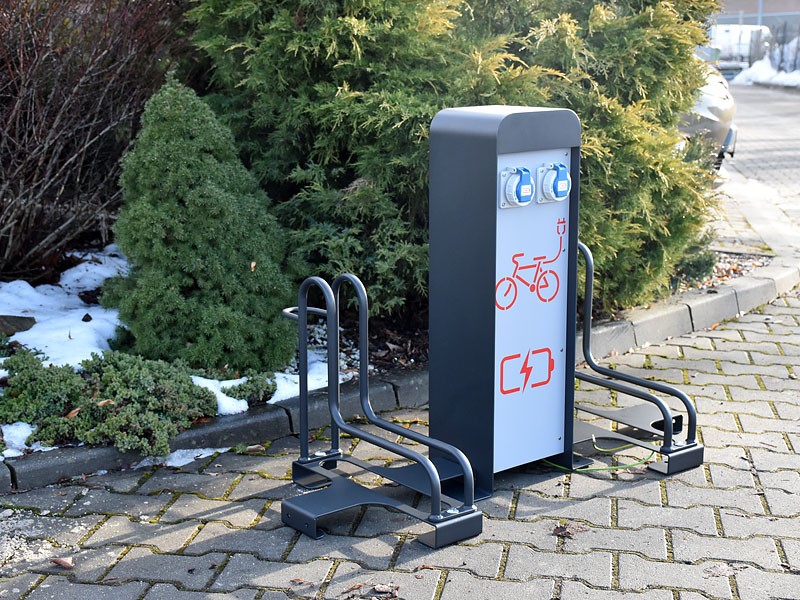

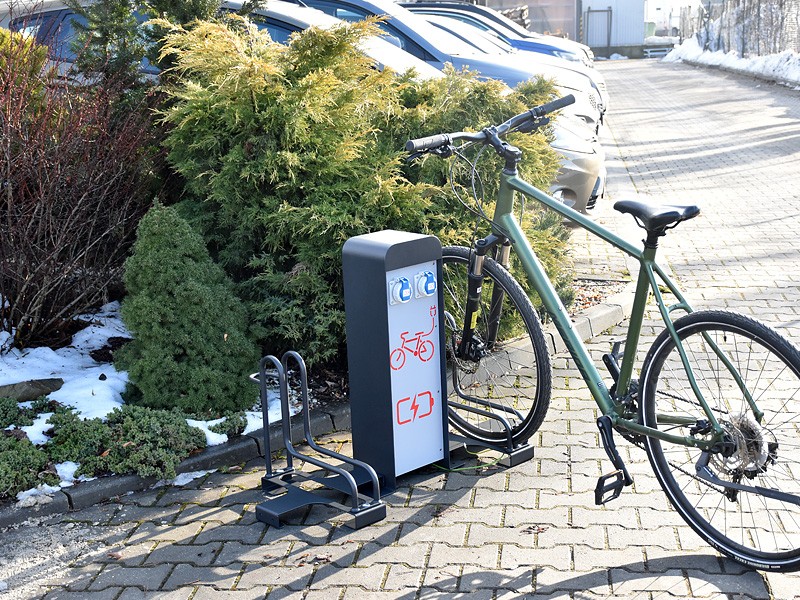

The Sabina bike rack, 2 spaces, with charging station is a steel rack for two bicycles with two waterproof 230 V sockets. It allows e-bikes to be charged while parked, and the galvanised, powder-coated and stainless steel is designed for outdoor use.
Product description
- Two 230 V sockets, IP-65 rated
- Combined charging power up to 3600 W
- Galvanised, painted and stainless steel
- Width 110 cm, weight 35 kg
- Wall plugs and screws for installation included
Stojak rowerowy Sabina 2 stanowiska ze stacją ładowania to miejsce postoju dla dwóch rowerów, w tym elektrycznych, z możliwością ładowania baterii. Konstrukcję wykonano ze stali ocynkowanej i malowanej oraz stali nierdzewnej.

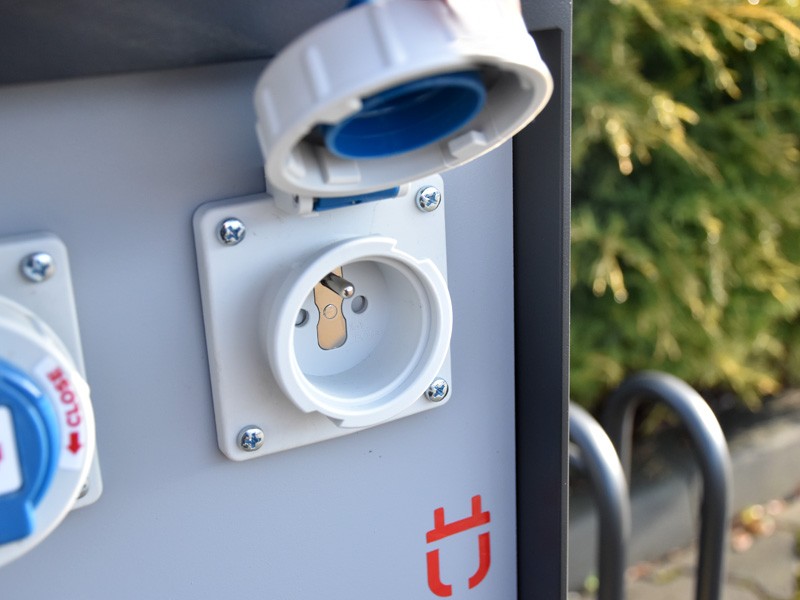

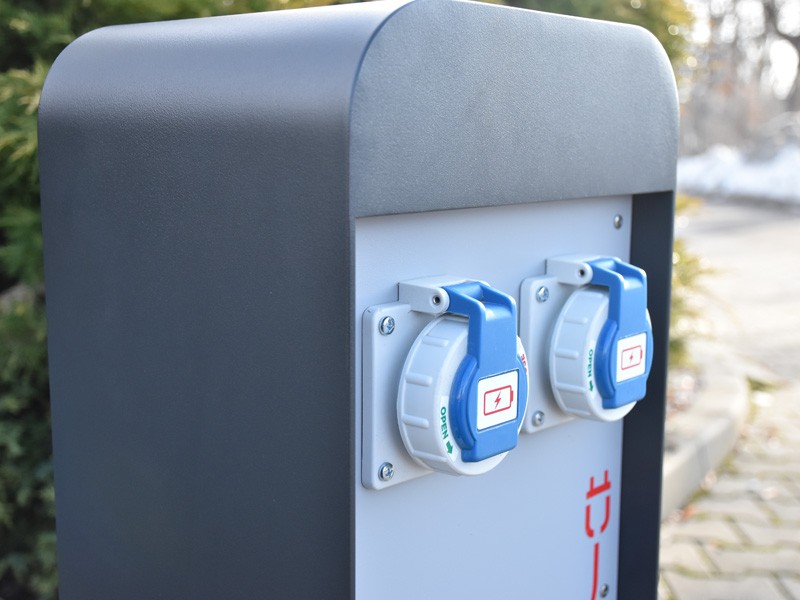

Stojak ma dwa gniazda 230 V w wodoszczelnych obudowach tablicowych z klapką, o klasie szczelności IP-65. Instalacja jest jednofazowa, z uziemionym przewodem 2,5 mm. Maksymalna moc ładowania to 3600 W i jest to wspólna moc długotrwała dla całej stacji, a nie dla każdego gniazda osobno.
Do montażu służy 8 kołków rozporowych Ø 10 x 80 mm na śruby Ø 7 x 80 mm, dołączonych do zestawu, pod klucz SW13 lub T40.
- Liczba stanowisk: 2
- Wymiary: 110 x 81 x 55 cm (szer. x wys. x gł.)
- Szerokość stanowiska: 6,5 cm
- Zasilanie: 2 gniazda 230 V, IP-65
- Waga: 35 kg
Specification
| number of bike spaces | 2 |
| rack/hanger width | 110cm |
| rack height | 81cm |
| rack depth | 55cm |
| bike space width | 6.5cm |
| material | galvanised and painted steel, stainless steel |
| weight | 35kg |
| installation | 8 expansion anchors Ø 10x80mm for Ø 7x80mm screws (included), SW13 or T40 drive |
| power supply | 2 x 230V socket |
| installation specification | waterproof panel-mounted PCE socket with flap, IP-65 waterproof rating, 2.5mm earthed cable, maximum charging power 3600W (nominal continuous power of the whole station, shared across all sockets), single-phase power supply |
