Mathias Bike Rack, 9 Spaces, with Rail
Product code: UF-MAST281

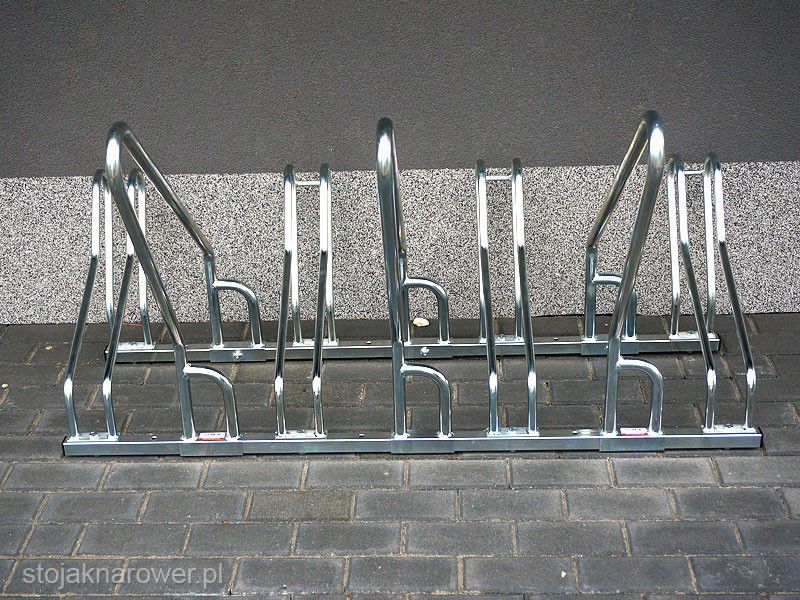

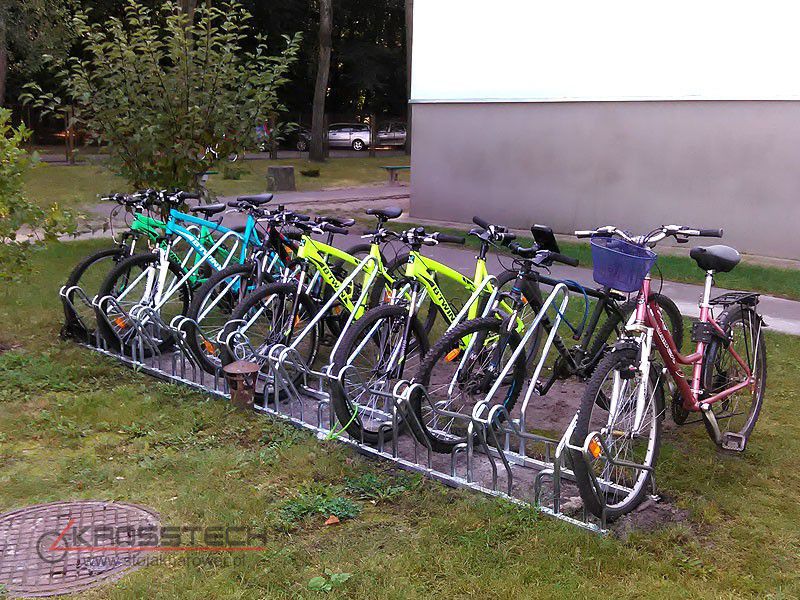

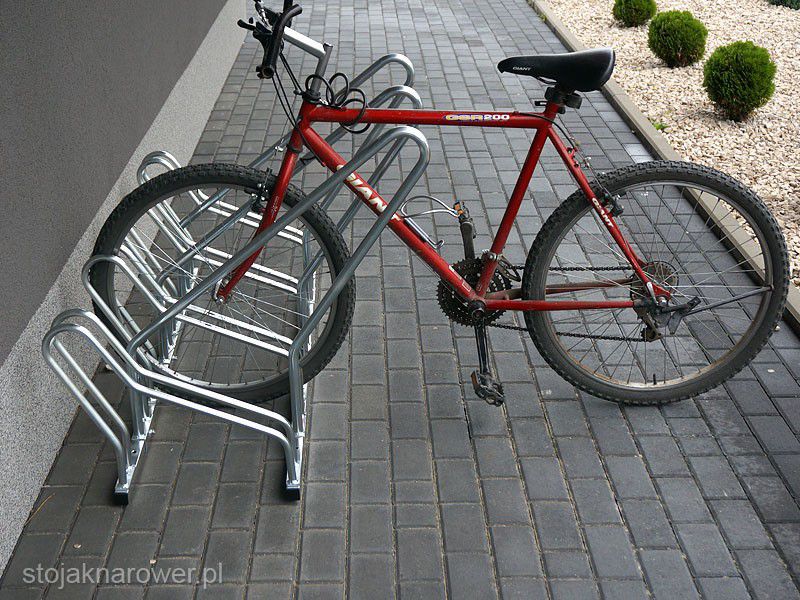

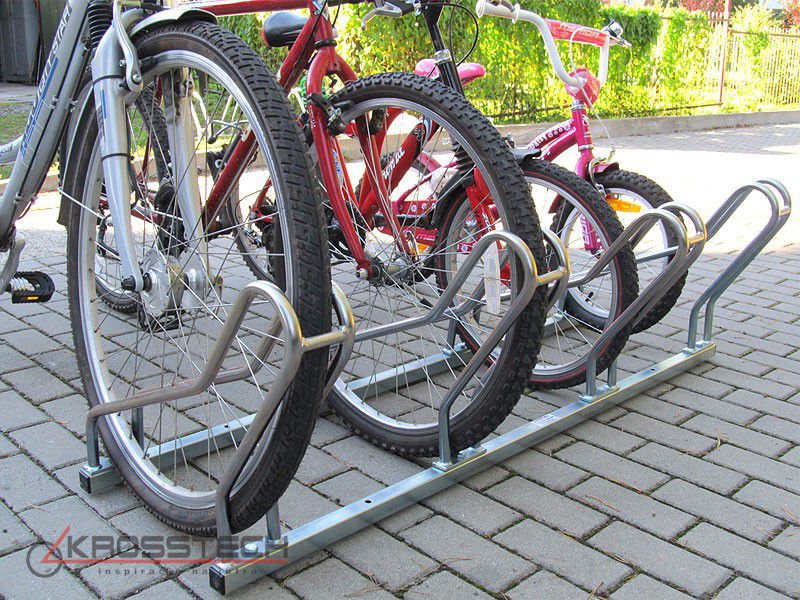

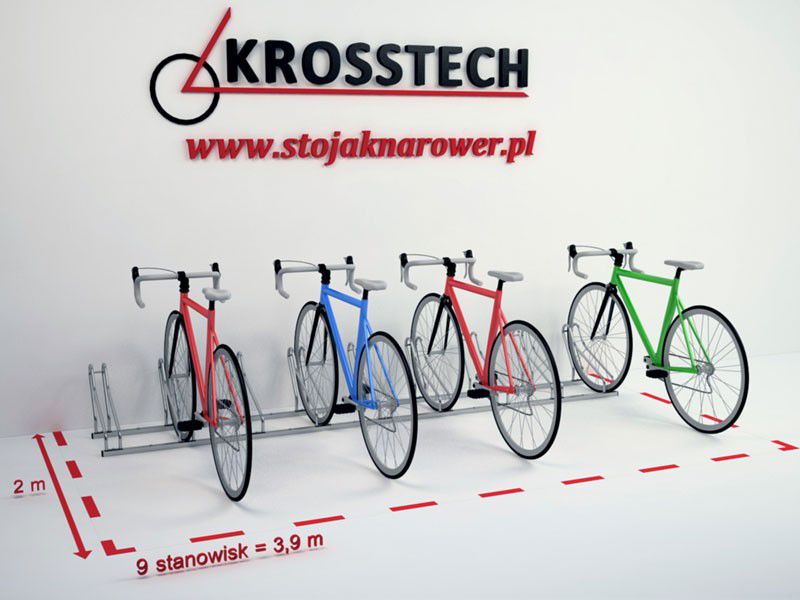

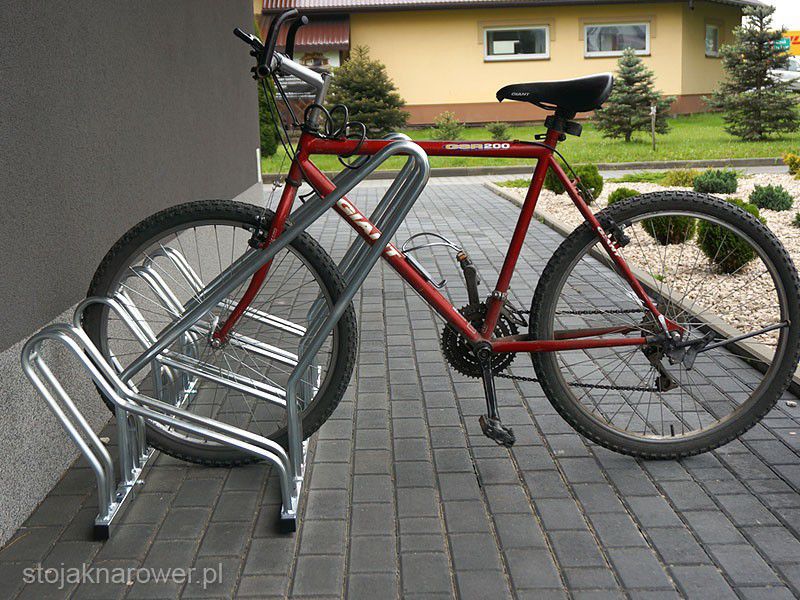

The Mathias bike rack for 9 spaces with rail is a steel rack for nine bicycles with an 80 cm high rail against which the frame can rest. It is 348 cm wide and is bolted to the ground. It is well suited to larger bike parking areas at local authority facilities and properties.
Product description
- 9 bike spaces across a width of 348 cm

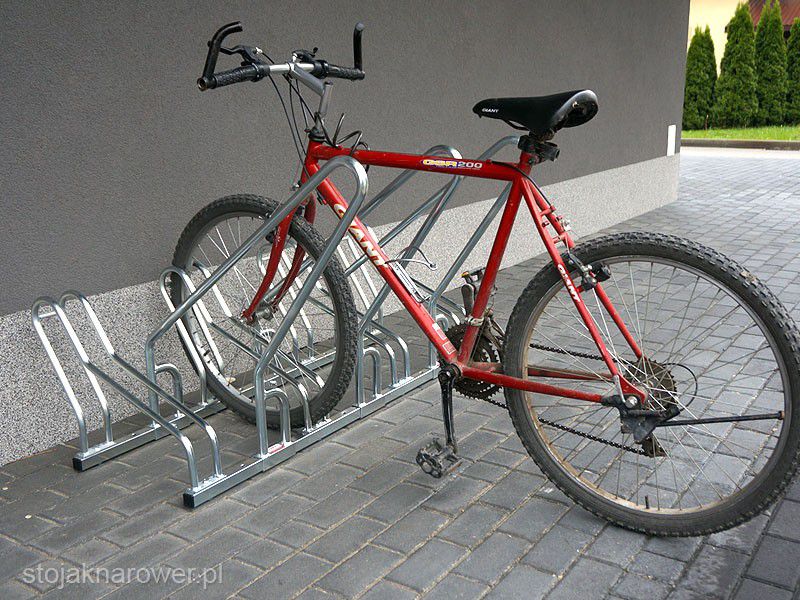

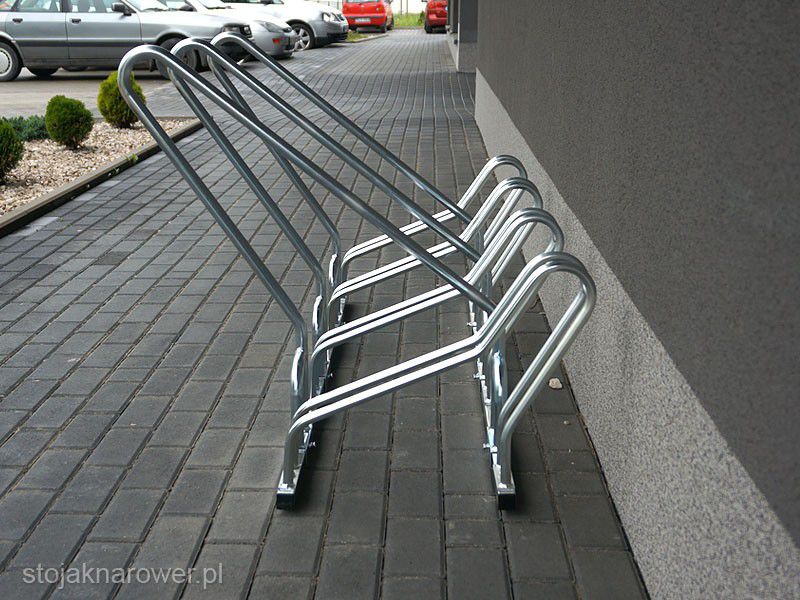

- 80 cm rail to support the frame
- Three steel finish options
- 16 fixing anchors included

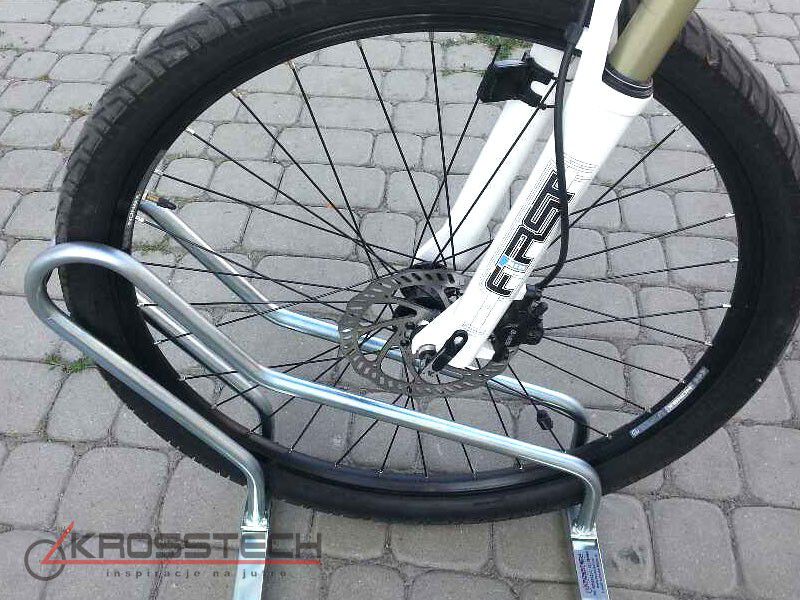

Stojak rowerowy Mathias 9 stanowisk z barierką mieści dziewięć rowerów ustawianych prostopadle na jednej konstrukcji o szerokości 348 cm. Stanowiska mają szerokość 6,5 cm i są rozstawione co 42 cm. Nad nimi biegnie barierka o wysokości 80 cm z rurki Ø 25 mm, o którą można oprzeć ramę roweru.

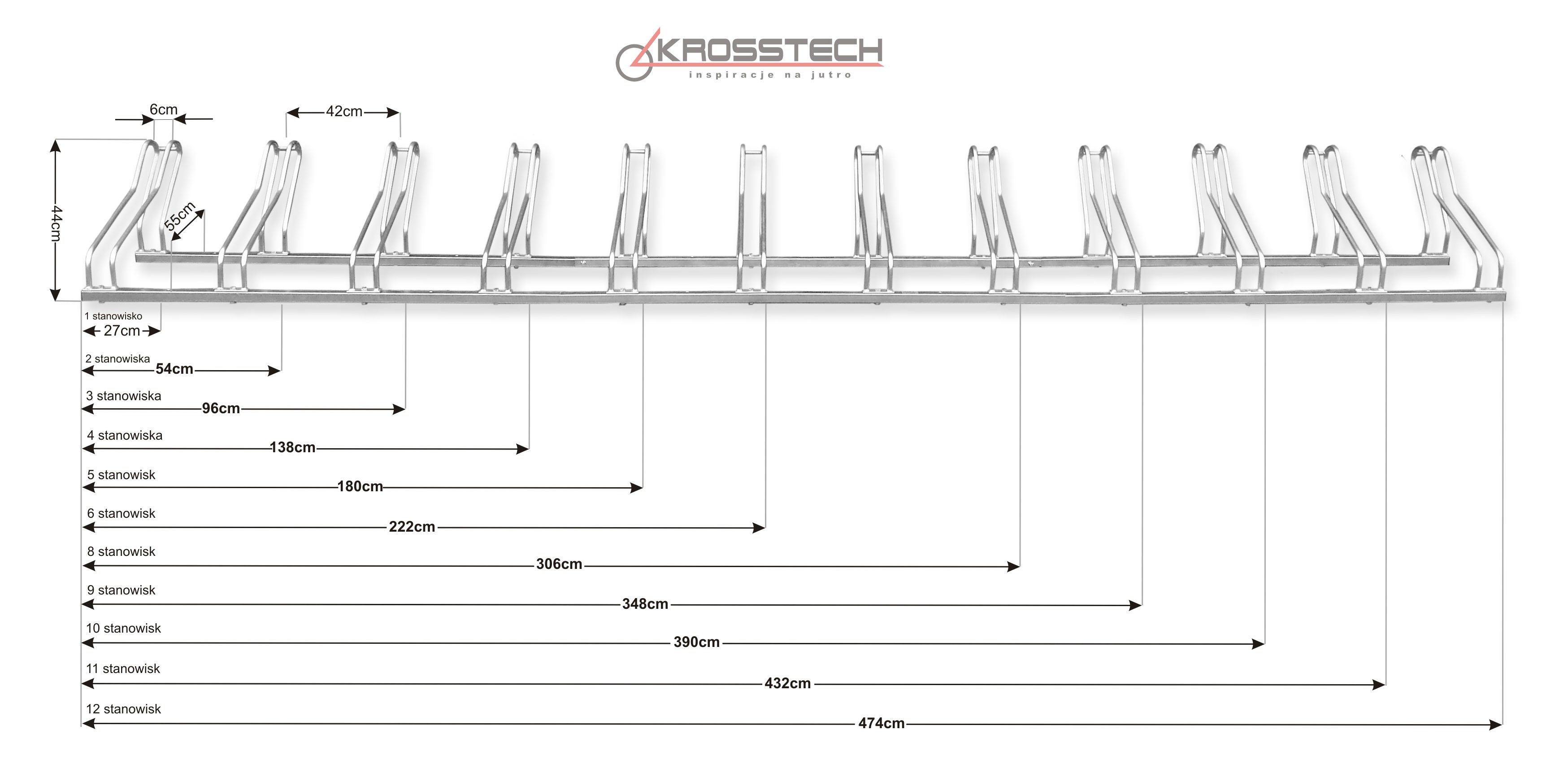

Część dolna to rurki 18 mm o grubości ścianki 2 mm, osadzone w profilu 30x30x1,5 mm. Stojak może być ze stali ocynkowanej, stali ocynkowanej i malowanej albo ze stali nierdzewnej. Wariant ustalimy z Wami indywidualnie. Stojaki można ustawiać obok siebie i w ten sposób dopasować liczbę stanowisk do potrzeb parkingu.
Stojak przykręca się do podłoża. W zestawie jest 16 kołków rozporowych Ø 10x80 mm i śruby Ø 7x80 mm pod klucz SW13 lub bit T40.
- liczba stanowisk: 9, nieregulowane

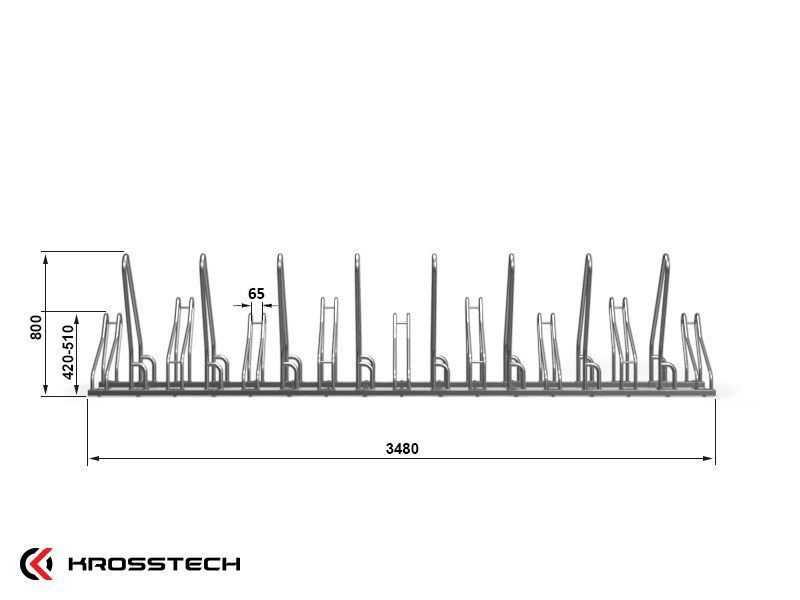

- szerokość: 348 cm, wysokość: 44 cm, głębokość całkowita: 87 cm
- wysokość barierki: 80 cm
- waga: 44 kg
Specification
| number of bike spaces | 9 |
| rack/hanger width | 348cm |
| height | 44cm |
| bike space width | 6.5cm |
| spacing between bike spaces | 42cm |
| tube diameter | 18mm |
| tube wall thickness | 2mm |
| rack profile | 30x30x1.5mm |
| material | galvanised steel, galvanised and painted steel, stainless steel |
| bike space adjustment | non-adjustable |
| barrier height | 80cm |
| barrier tube cross-section | Ø 25mm |
| fixing method | to the ground |
| installation method | bolt-down |
| weight | 44kg |
| installation | 16 expansion anchors Ø 10x80mm for Ø 7x80mm bolts (included), for SW13 spanner or T40 bit |

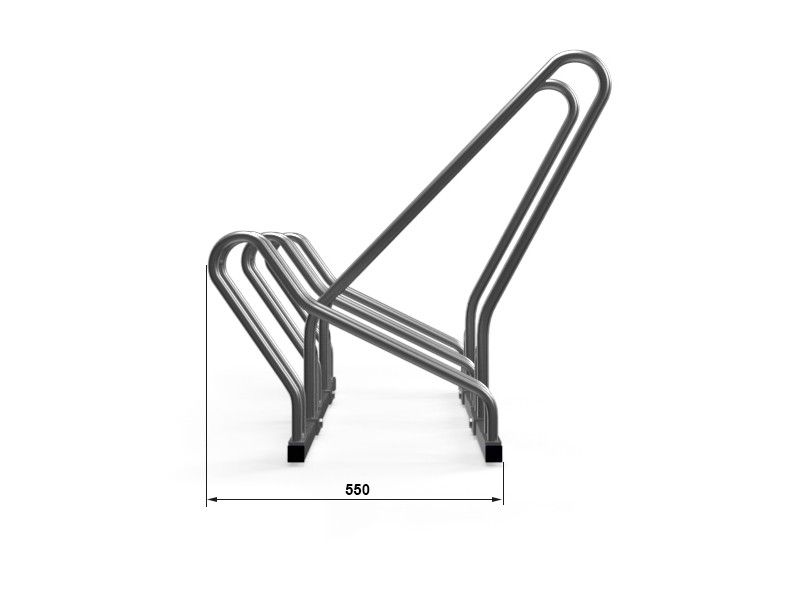

| overall rack depth | 87cm |
| bike space arrangement | perpendicular |
