Marcus 12-Space Bike Rack with 474 cm Rail
Product code: UF-MAST526

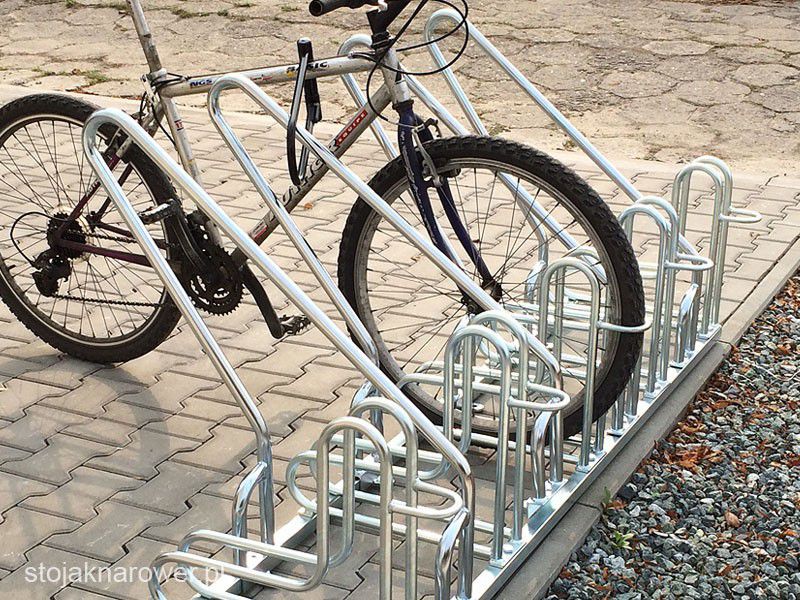

The Marcus 12-space bike rack with 474 cm rail is a galvanised steel rack for 12 bicycles parked perpendicularly, with an 80 cm high rail to lean bikes against. It is bolted to the ground. It is well suited to schools, housing estates, office buildings and Bike&Ride car parks.
Product description
- 12 perpendicular bays at 42 cm spacing
- 80 cm high rail for leaning bicycles
- Galvanised steel, 30x30x1.5 mm profile
- Width 474 cm, weight 70 kg
- 22 fixing anchors with bolts included
Stojak rowerowy Marcus 12 stanowisk z barierką 474 cm to stojak dla miejsc, w których parkuje dużo rowerów: przy szkołach, biurowcach, na osiedlach, parkingach Bike&Ride i w przestrzeni publicznej. Ma 12 stałych stanowisk ustawionych prostopadle. Rozstaw między nimi wynosi 42 cm.
Wzdłuż stojaka biegnie barierka z rurki Ø 25 mm o wysokości 80 cm. Można o nią oprzeć rower, dzięki czemu stoi stabilniej i trudniej go przewrócić. Konstrukcja jest ze stali ocynkowanej: profil 30x30x1,5 mm oraz rurki o przekroju 18 mm i grubości ścianki 2 mm.
Stojak przykręca się do podłoża, np. na chodniku, parkingu czy placu. W zestawie jest 22 kołki rozporowe z kompletem śrub.
- liczba stanowisk: 12, bez regulacji
- wymiary: szerokość 474 cm, wysokość 77 cm, głębokość 81 cm
- szerokość stanowiska: 6,5 cm, rozstaw: 42 cm
- barierka: wysokość 80 cm, rurka Ø 25 mm
- waga: 70 kg
- montaż: 22 kołki rozporowe Ø 10x80 mm i śruby Ø 7x80 mm (w zestawie), klucz SW13 lub T40
Specification
| number of bike spaces | 12 |
| rack/hanger width | 474cm |
| height | 77cm |
| bike space width | 6.5cm |
| spacing between bike spaces | 42cm |
| tube diameter | 18mm |
| tube wall thickness | 2mm |
| rack profile | 30x30x1.5mm |
| rack finish | galvanised |
| material | galvanised steel |
| bike space adjustment | non-adjustable |
| barrier height | 80cm |
| barrier tube cross-section | Ø 25mm |
| fixing method | to the ground |
| installation method | bolt-down |
| weight | 70kg |
| installation | 22 Ø 10x80mm expansion anchors for Ø 7x80mm screws (included), SW13 or T40 drive |
| overall rack depth | 81cm |
| bike space arrangement | perpendicular |
