Lucas bike rack with charging station 100 cm
Product code: UF-MAST539

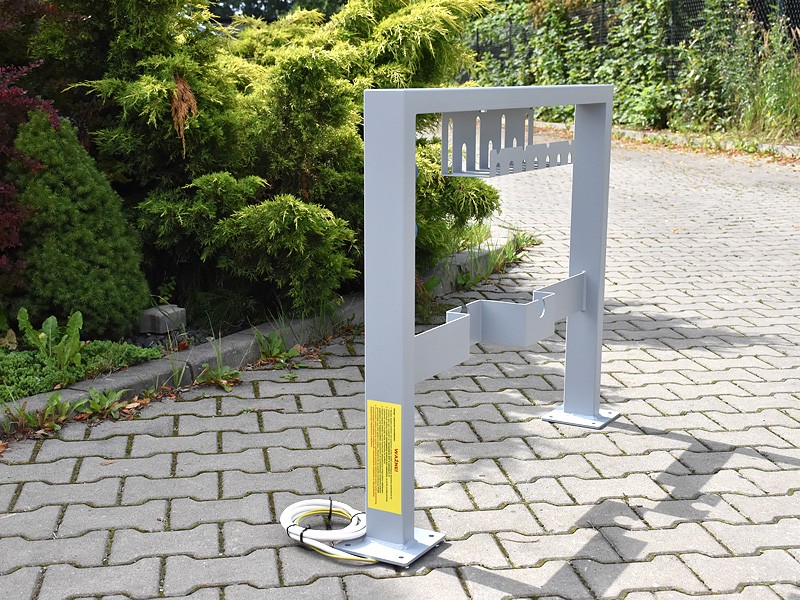

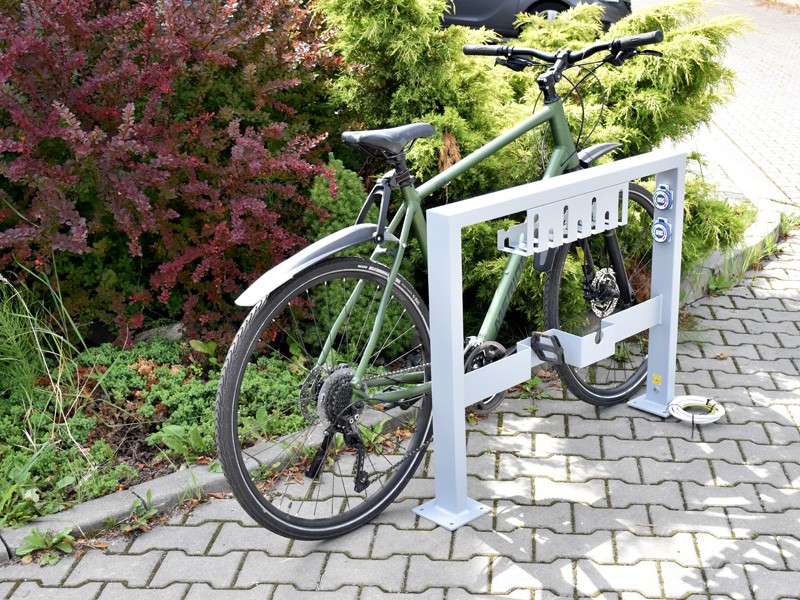

The Lucas bike rack with charging station 100 cm is a steel rack for 2 bicycles with two waterproof 230 V sockets and space for a power supply. It allows e-bikes to be parked and charged at housing estates, office buildings, hotels and business premises.
Product description
- 2 charging points and 2 × 230 V sockets

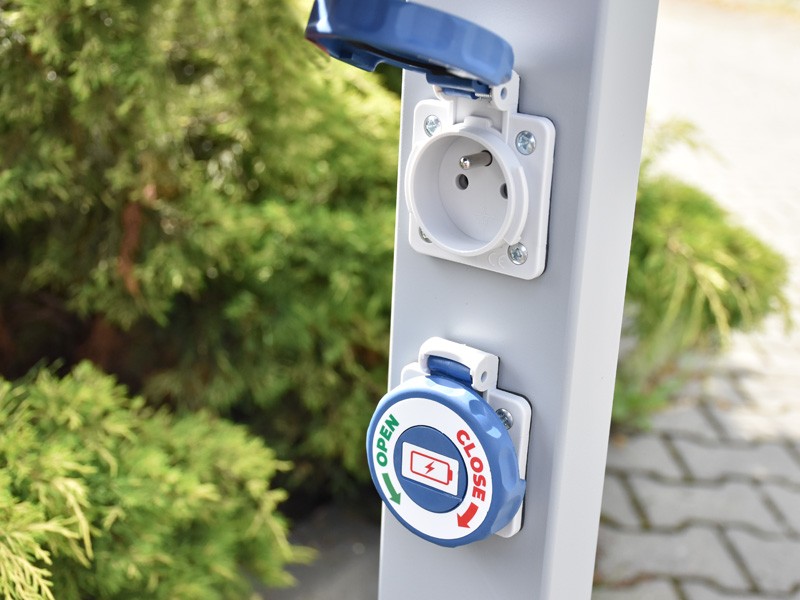

- IP-65 waterproof sockets with flap cover
- Station power up to 3600 W, single-phase supply
- Space for the bike charger
- 80x60x2 mm profile, weight 10 kg
Stojak rowerowy Lucas ze stacją ładowania 100 cm to stojak na dwa rowery z wbudowanymi gniazdami do ładowania akumulatorów rowerów elektrycznych. W konstrukcji przewidziano też miejsce na zasilacz roweru.
Stojak wykonano z profilu 80x60x2 mm na stopie 15x15 cm. Użyto stali ocynkowanej, stali ocynkowanej i malowanej oraz stali nierdzewnej. Waży tylko 10 kg.

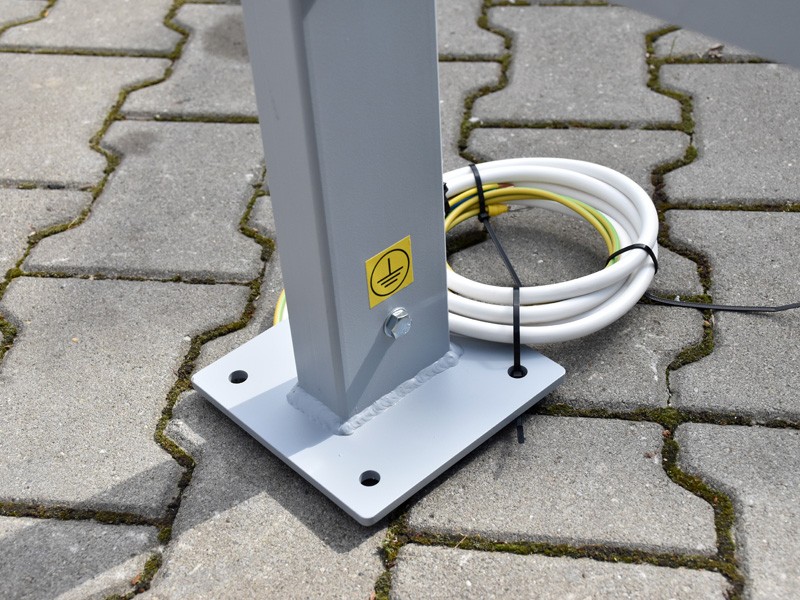

Ma dwa tablicowe gniazda 230 V z klapką, wodoszczelne w klasie IP-65, podłączone uziemionym przewodem 2,5 mm. Stacja jest zasilana jednofazowo, a jej nominalna moc długotrwała wynosi 3600 W i jest wspólna dla obu gniazd. Stojak możecie przykręcić albo wbetonować, zależnie od nawierzchni i sposobu doprowadzenia prądu.
- Wymiary: szerokość 100 cm, wysokość 80 cm
- Stanowiska: 2
- Zasilanie: 2 gniazda 230 V, IP-65, maks. 3600 W łącznie
Specification
| number of bike spaces | 2 |
| rack/hanger width | 100cm |
| height | 80cm |
| rack profile | 80x60x2mm |
| foot | 15x15cm |
| material | galvanised steel, galvanised and painted steel, stainless steel |
| installation method | bolt-down or set in concrete |
| weight | 10kg |
| power supply | 2 x 230V socket |
| installation specification | waterproof panel-mounted PCE socket with flap, IP-65 waterproof rating, 2.5mm earthed cable, maximum charging power 3600W (nominal continuous power of the whole station, shared across all sockets), single-phase power supply |
