Karl 5-space bike rack
Product code: UF-MAST224

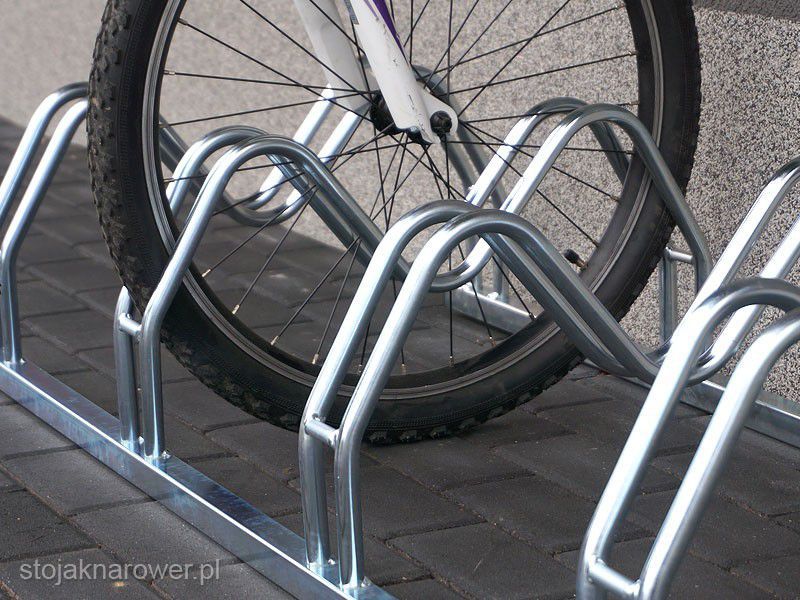

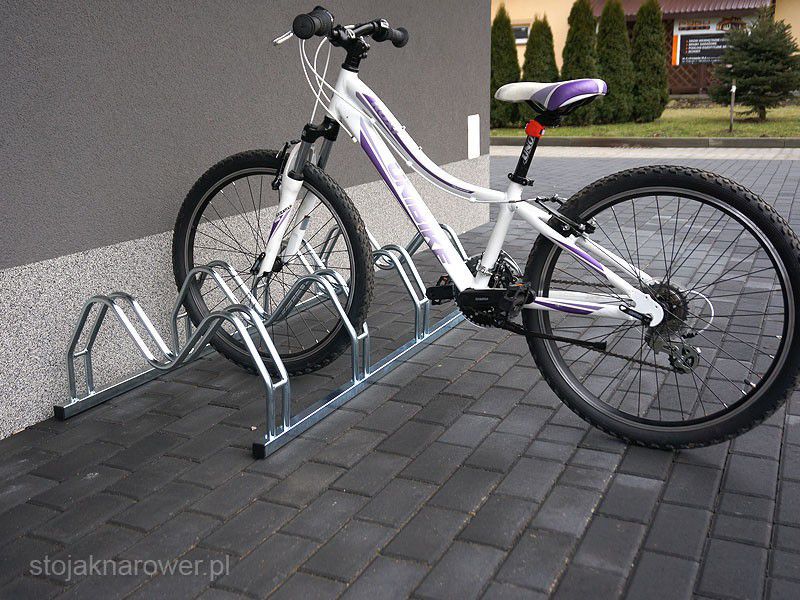

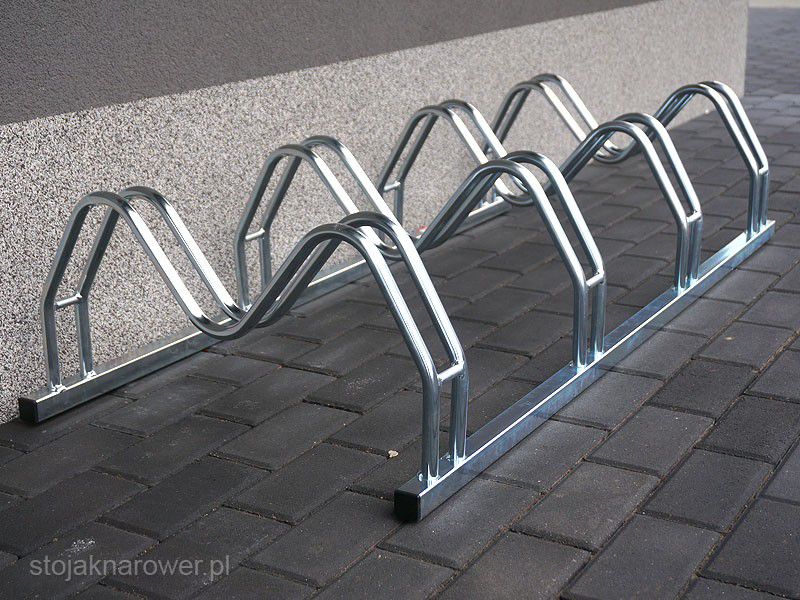

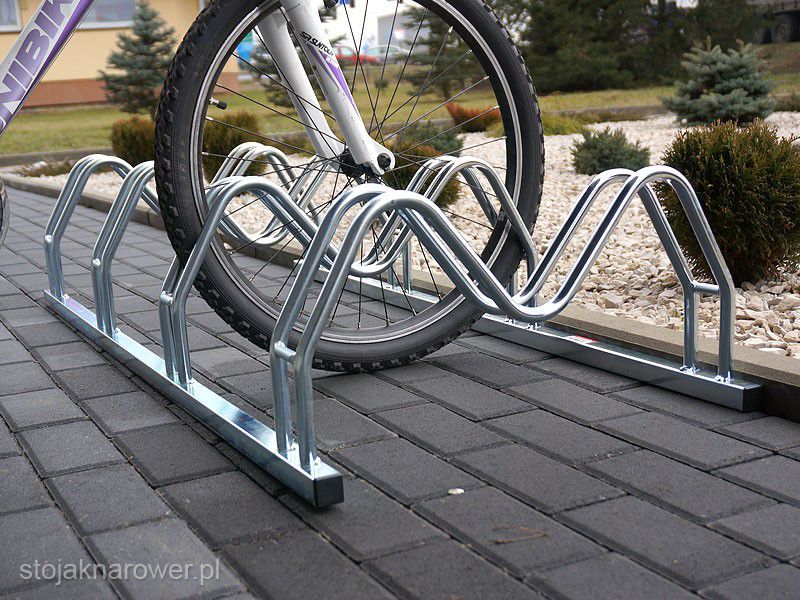

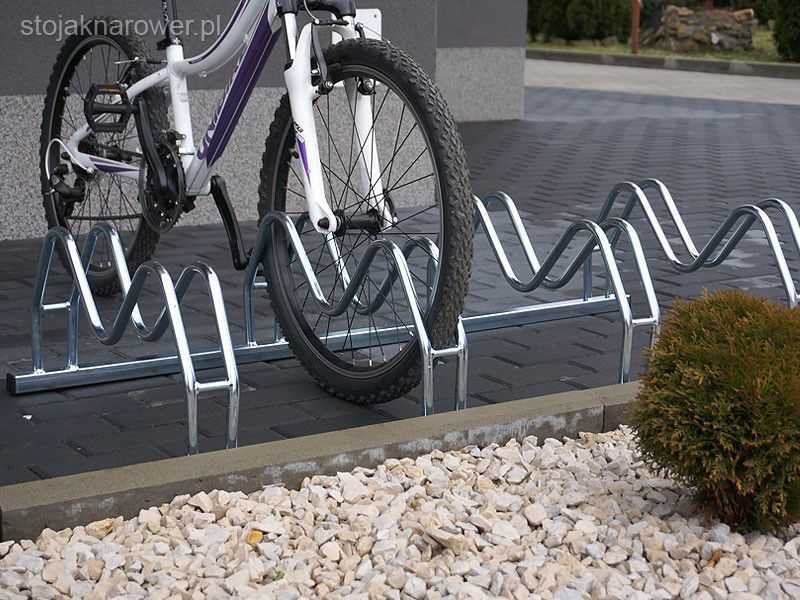

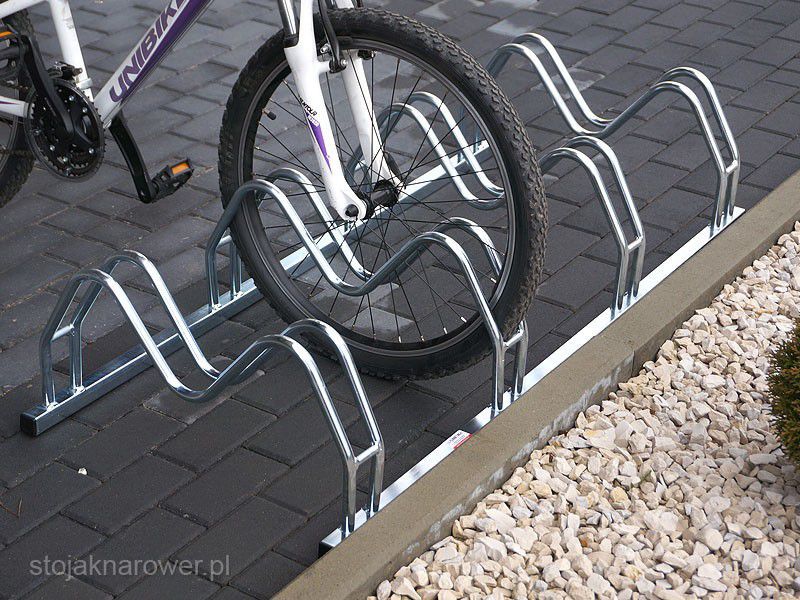

The Karl 5-space bike rack is a low steel rack with rounded shapes for 5 bicycles, which can be parked from both sides. It is available in galvanised, galvanised and painted, or stainless steel. It is bolted to the ground at housing estates, office buildings and other buildings.
Product description
- 5 spaces, double-sided parking
- Low, rounded form
- Choice of three steel variants
- Space angle from 90 to 45°
- 4 expansion anchors included
Stojak rowerowy Karl 5 stanowisk ma niską sylwetkę i zaokrąglone kształty. Dobrze pasuje do nowoczesnych osiedli i biurowców. Mieści 5 rowerów, które można wstawiać z obu stron.
Wymiary to 180 x 58 x 30 cm. Rurki o przekroju 18 mm i ściance 2 mm są osadzone na profilu 30x30x1,5 mm. Do wyboru jest stal ocynkowana, ocynkowana i malowana albo nierdzewna. Wariant ustalimy z Wami indywidualnie. Kąt stanowisk ustawicie w zakresie od 90 do 45 st.

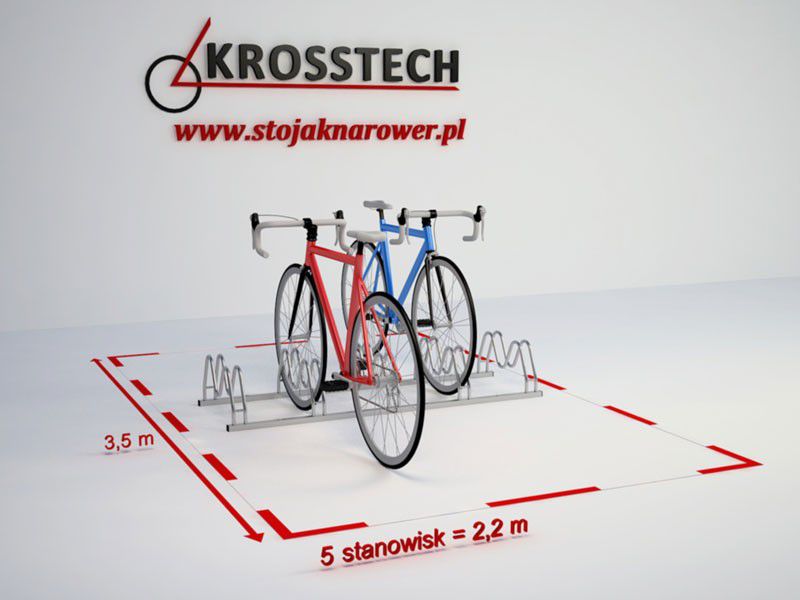

Do przykręcenia stojaka służą 4 kołki rozporowe Ø 8x80 mm ze śrubami Ø 6x80 mm pod klucz SW10 lub T30, dołączone do zestawu. Kilka stojaków w rzędzie zmieści się nawet na niewielkiej powierzchni.
- Szerokość stanowiska: 6,5 cm, rozstaw: 42 cm
- Waga: 13 kg

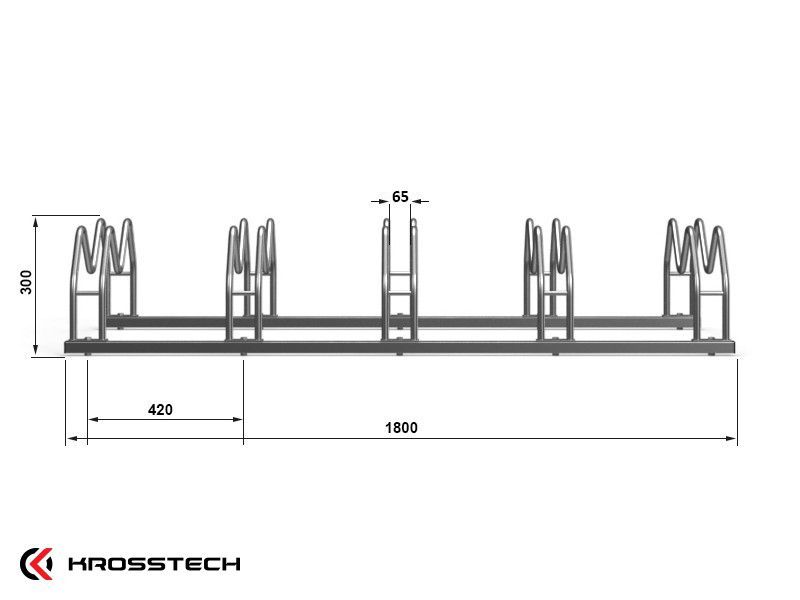

Specification
| number of bike spaces | 5 |
| rack/hanger width | 180cm |
| rack height | 30cm |

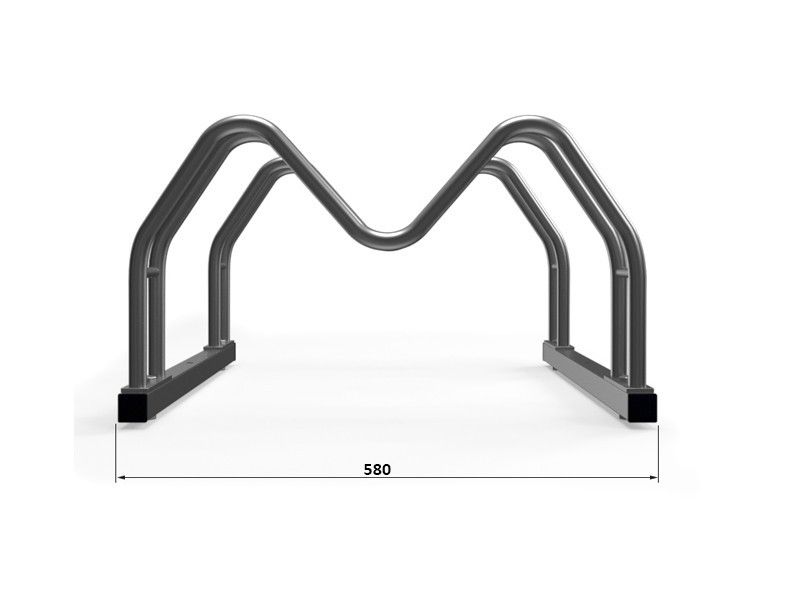

| rack depth | 58cm |
| bike space width | 6.5cm |
| spacing between bike spaces | 42cm |
| tube diameter | 18mm |
| tube wall thickness | 2mm |
| rack profile | 30x30x1.5mm |
| material | galvanised steel, galvanised and painted steel, stainless steel |
| bike space adjustment | range from 90 to 45 degrees |
| parking arrangement | double-sided |
| fixing | 4 expansion anchors Ø 8x80mm for Ø 6x80mm screws (included), for SW10 spanner or T30 bit |
| fixing method | to the ground |
| installation method | bolt-down |
| weight | 13kg |
| bike space arrangement | angled or perpendicular |
