Jana bike rack with sign panel and graphics
Product code: UF-MAST096

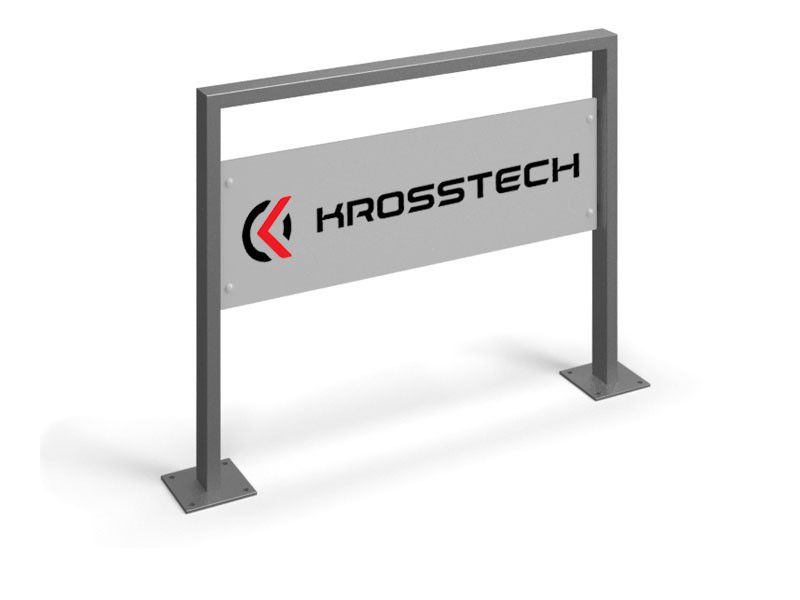

The Jana bike rack with sign panel and graphics is a steel rack for two bicycles with a 30 x 92 cm sign. The panel can display a logo, information or project graphics. It is ideal for public buildings, residential estates and office buildings.
Product description
- 30 x 92 cm sign panel with custom graphics
- 2 bike spaces
- 60 x 30 x 2 mm steel profile
- Bolt-down or set in concrete to 30 cm

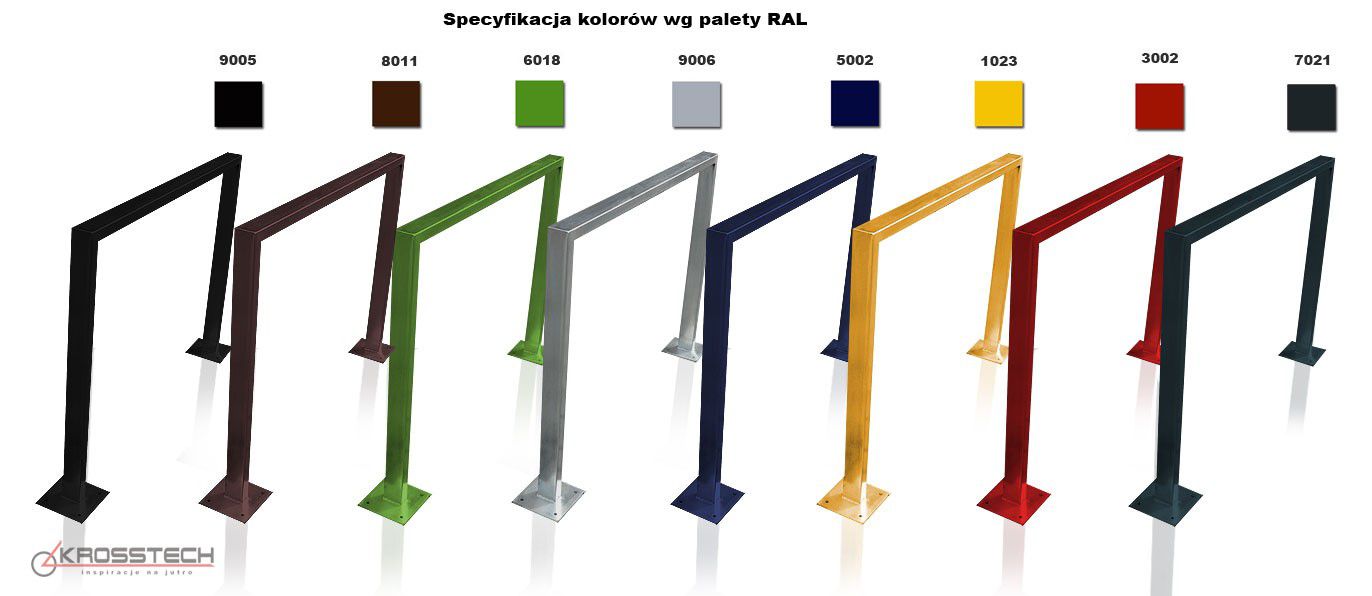

- Galvanised, painted or stainless steel
Stojak rowerowy Jana z tablicą i grafiką to dwa miejsca na rowery i tablica w jednym. Szyld ma 30 cm wysokości i 92 cm szerokości. Grafikę przygotujemy według Waszych potrzeb: może to być logo firmy, komunikat dla mieszkańców albo grafika promująca inwestycję.

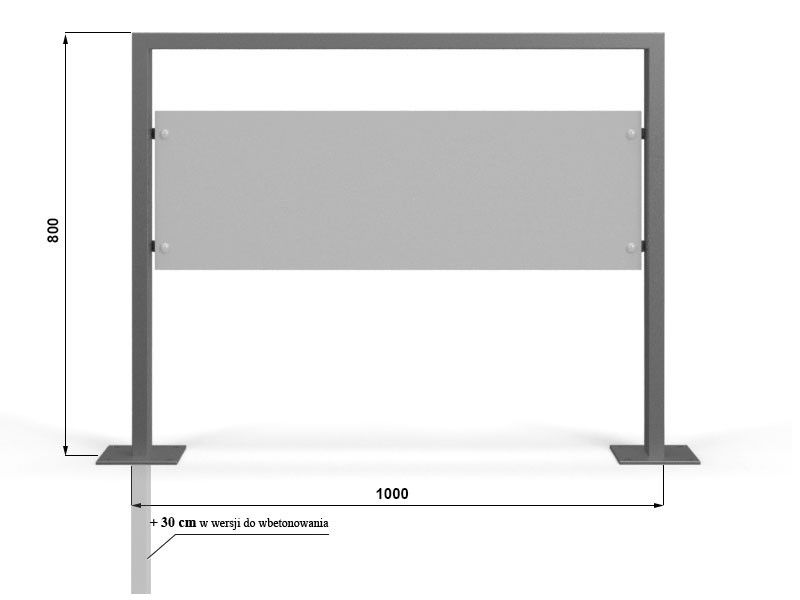

Stojak ma 100 cm szerokości i 80 cm wysokości. Jest wykonany z profilu 60 x 30 x 2 mm, a stanowiska nie mają regulacji. Do wyboru są trzy wykończenia: stal ocynkowana, stal ocynkowana i malowana albo stal nierdzewna. Wariant i kolor ustalimy z Wami indywidualnie.
Stojak mocuje się do podłoża na dwa sposoby. Można go przykręcić ośmioma kołkami rozporowymi, które są w zestawie, albo wbetonować na głębokość 30 cm.
- liczba stanowisk: 2
- wymiary: szer. 100 cm, wys. 80 cm
- szyld: 30 x 92 cm (wys. x szer.)
- waga: 15 kg
- montaż: 8 kołków Ø 10 x 80 mm, śruby Ø 7 x 80 mm (klucz SW13, T40) lub wbetonowanie na 30 cm
Specification
| number of bike spaces | 2 |
| rack/hanger width | 100cm |
| height | 80cm |
| rack profile | 60x30x2mm |
| sign dimensions [h/w] | 30x92cm |
| material | galvanised steel, galvanised and painted steel, stainless steel |
| bike space adjustment | non-adjustable |
| fixing method | to the ground |
| installation method | bolt-down or set in concrete |
| weight | 15kg |
| installation | 8 Ø 10x80mm expansion plugs for Ø 7x80mm screws (included), for SW13 spanner, T40 bit, or set in concrete to a depth of 30cm |
