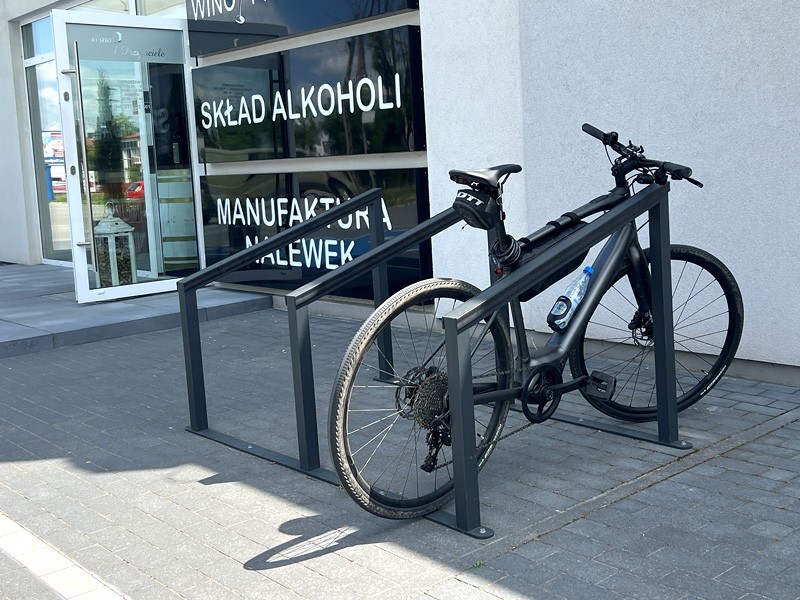

Gizela Modular Bike Rack, 6 Spaces, Rubber-Coated
Product code: UF-MAST450

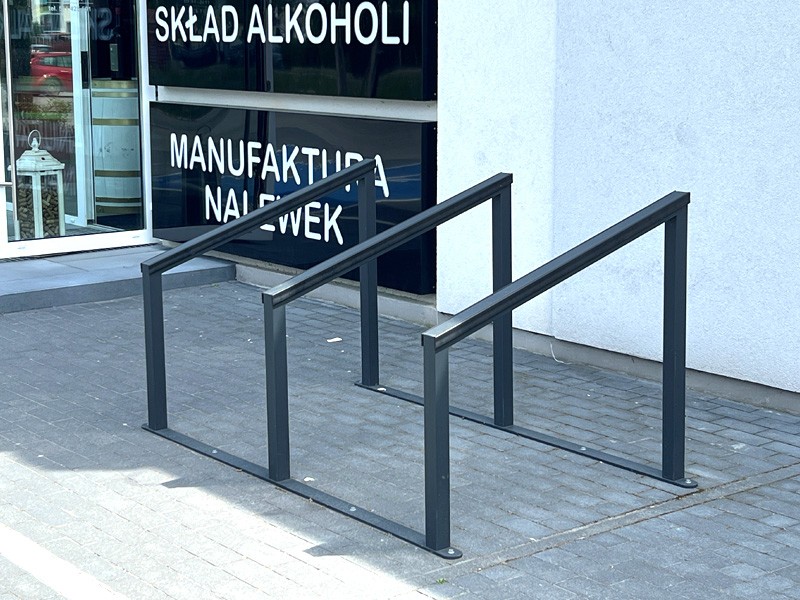

A modular rack for 6 bicycles made from 50 × 50 × 2 mm steel box section, finished with rubber that protects frames from scratches. The spaces can be set at an angle from 90 to 45°. This allows more bicycles to fit in the same area.
Product description
- 6 bike spaces with adjustable angle 90–45°
- 50 × 50 × 2 mm steel profile

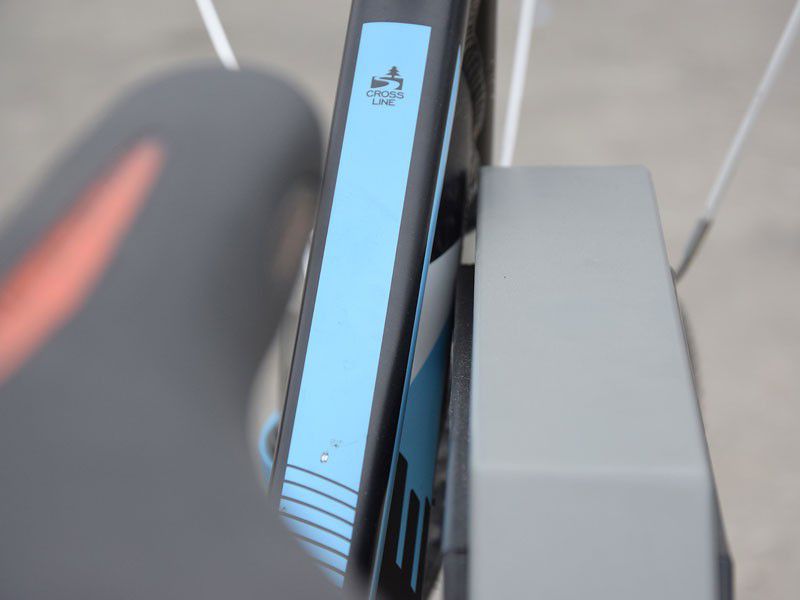

- 30 mm wide rubber strip protects frames
- Surface-mounted or set 30 cm into concrete
- Dimensions 178 × 101 × 91 cm
Stojak rowerowy Gizela modułowy 6 stanowisk gumowany pozwala ustawić stanowiska pod kątem od 90 do 45 st. względem osi stojaka. Przydaje się to tam, gdzie miejsce na parking rowerowy jest płytkie albo ma nietypowy kształt.
Konstrukcja jest z profilu stalowego 50 × 50 × 2 mm. Gumowe elementy o szerokości 30 mm chronią ramy rowerów. Do wyboru jest stal ocynkowana i malowana albo stal nierdzewna, wersję ustalimy z Wami indywidualnie. Stabilność zapewniają stopy 60 × 8 mm.
Stojak przykręca się ośmioma kołkami rozporowymi, które są w zestawie, albo wbetonowuje na głębokość 30 cm. Sprawdzi się przy osiedlach, szkołach i biurowcach.
- Liczba stanowisk: 6
- Wymiary: 178 cm szerokości, 91 cm wysokości, 101 cm głębokości
- Rozstaw barierek: 80 cm
- Montaż: 8 kołków Ø 10 × 80 mm, śruby Ø 7 × 80 mm, klucz SW13 lub T40, albo wbetonowanie na 30 cm
Specification
| number of bike spaces | 6 |
| rack/hanger width | 178cm |
| rack height | 91cm |
| rack depth | 101cm |
| foot | 60x8mm |
| material | galvanised and painted steel, stainless steel |
| bike space adjustment | range from 90 to 45 degrees |
| barrier spacing | 80cm |
| rack components | 50x50x2mm profile, rubber width 30mm |
| installation method | bolt-down |
| installation | 8 Ø 10x80mm expansion plugs for Ø 7x80mm screws (included), for SW13 spanner, T40 bit, or set in concrete to a depth of 30cm |
